Smartphone & Tablet PC

Search CoilMaster products for Smartphone & Tablet application.

Power Inductors



Catalog

Automotive
Grade

Features

Series

Part Number

LxW
mm

Height Max.
mm

Inductance
μH

DCR Max.

Isat Typ.
A

Itemp Typ.
A

Inquiry

picture_as_pdf Shield
Metal
Flat Wire
Plating

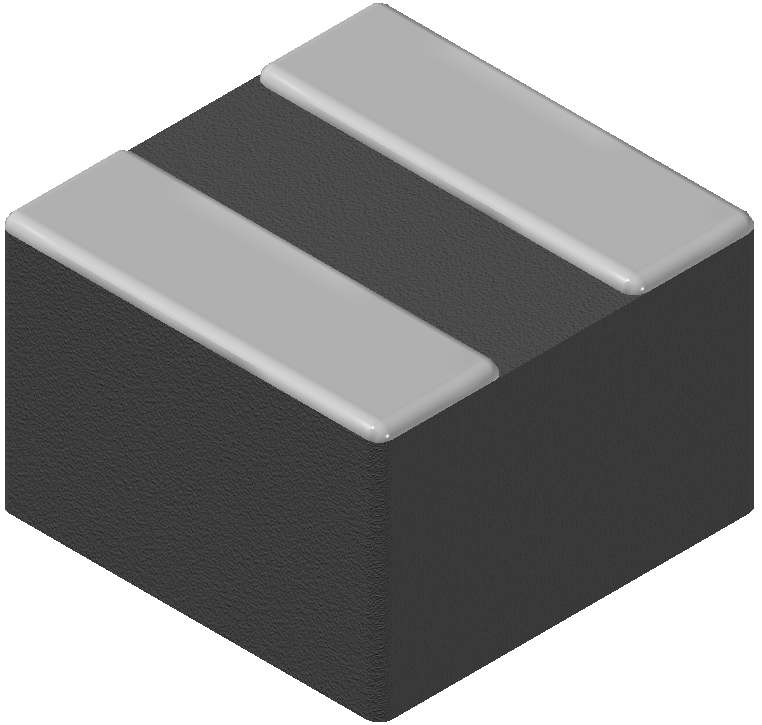

MMPF CMI-MMPF201208BC
NEW
2.0x1.2 0.8 0.24~2.2 20~137 2.5~7.9 2.1~6.1 sms
picture_as_pdf Shield
Metal
Flat Wire
Plating
MMPF CMI-MMPF201608BC
NEW
2.0x1.6 0.8 0.22~1.5 17~120 2.3~7 2.1~5.8 sms
picture_as_pdf Shield
Metal
Flat Wire
Plating
MMPF CMI-MMPF201610BC
NEW
2.0x1.6 1 0.24~10 19~700 0.9~7.2 0.7~5.7 sms
picture_as_pdf Shield
Metal
Flat Wire
Plating
MMPF CMI-MMPF201612BC
NEW
2.0x1.6 1.2 0.15~6.8 15~300 1.2~9.8 1~9 sms
picture_as_pdf Shield
Metal
Flat Wire
Plating
MMPF CMI-MMPF252010BC
NEW
2.5x2.0 1 0.47~4.7 20~130 1.9~6.8 2.3~5.6 sms
picture_as_pdf Shield
Metal
Flat Wire
Plating
MMPF CMI-MMPF252012BC
NEW
2.5x2.0 1.2 0.1~10 7~400 1.6~12 1.2~12 sms
picture_as_pdf Shield
Metal
Flat Wire
Plating
MMPF CMI-MMPF322512BS
NEW
3.2x2.5 1.2 0.68~4.7 23~135 2.9~8.1 2.3~7.3 sms
picture_as_pdf Shield
Metal
Round Wire
Plating
MMPF CMI-MMPF322530QL
NEW
3.2x2.5 3 3.3~4.7 60~78 2.9~3.6 3.3~3.5 sms
picture_as_pdf Shield
Metal
Flat Wire
Plating
MMPF CMI-MMPF322533V
NEW
3.2x2.5 3.3 2.2~3.3 48~57.6 8~8.5 5.5~6.5 sms
picture_as_pdf Shield
Metal
Flat Wire
Plating
MMPF CMI-MMPF4012BS
NEW
4.0x4.0 1.2 1~4.7 30~95 3.5~7 2.7~5 sms
picture_as_pdf Shield
Metal
Flat Wire
Plating
MMPF CMI-MMPF4020H2
NEW
4.0x4.0 2 0.47~1.2 6.5~14 9.8~15 8.3~13.5 sms
picture_as_pdf Shield
Metal
Flat Wire
Plating
MMPF CMI-MMPF7012H2
NEW
7.0x6.0 1.2 0.15~1.5 6~42 9~25 8~16 sms
picture_as_pdf Shield
Metal
Flat Wire
Plating
MMPF CMI-MMPF7015H2
NEW
7.0x6.0 1.5 0.33~0.68 6~13.8 15.5~24 12~16 sms
picture_as_pdf Shield
Metal
Flat Wire
Plating
MMPF CMI-MMPF7030H2
NEW
7.0x6.0 3 0.68~3.3 4.2~18.6 13~28 11~20 sms
  • Part Number
    CMI-MMPF201208BC NEW
  • Feature :

    Shield
    Metal
    Flat Wire
    Plating

  • Series : MMPF
  • LxW mm : 2.0x1.2
  • Height Max. mm : 0.8
  • Inductance μH : 0.24~2.2
  • DCR Max. : 20~137
  • Isat Typ. A : 2.5~7.9
  • Itemp Typ. A : 2.1~6.1
  • Inquiry sms
  • Part Number
    CMI-MMPF201608BC NEW
  • Feature :

    Shield
    Metal
    Flat Wire
    Plating

  • Series : MMPF
  • LxW mm : 2.0x1.6
  • Height Max. mm : 0.8
  • Inductance μH : 0.22~1.5
  • DCR Max. : 17~120
  • Isat Typ. A : 2.3~7
  • Itemp Typ. A : 2.1~5.8
  • Inquiry sms
  • Part Number
    CMI-MMPF201610BC NEW
  • Feature :

    Shield
    Metal
    Flat Wire
    Plating

  • Series : MMPF
  • LxW mm : 2.0x1.6
  • Height Max. mm : 1
  • Inductance μH : 0.24~10
  • DCR Max. : 19~700
  • Isat Typ. A : 0.9~7.2
  • Itemp Typ. A : 0.7~5.7
  • Inquiry sms
  • Part Number
    CMI-MMPF201612BC NEW
  • Feature :

    Shield
    Metal
    Flat Wire
    Plating

  • Series : MMPF
  • LxW mm : 2.0x1.6
  • Height Max. mm : 1.2
  • Inductance μH : 0.15~6.8
  • DCR Max. : 15~300
  • Isat Typ. A : 1.2~9.8
  • Itemp Typ. A : 1~9
  • Inquiry sms
  • Part Number
    CMI-MMPF252010BC NEW
  • Feature :

    Shield
    Metal
    Flat Wire
    Plating

  • Series : MMPF
  • LxW mm : 2.5x2.0
  • Height Max. mm : 1
  • Inductance μH : 0.47~4.7
  • DCR Max. : 20~130
  • Isat Typ. A : 1.9~6.8
  • Itemp Typ. A : 2.3~5.6
  • Inquiry sms
  • Part Number
    CMI-MMPF252012BC NEW
  • Feature :

    Shield
    Metal
    Flat Wire
    Plating

  • Series : MMPF
  • LxW mm : 2.5x2.0
  • Height Max. mm : 1.2
  • Inductance μH : 0.1~10
  • DCR Max. : 7~400
  • Isat Typ. A : 1.6~12
  • Itemp Typ. A : 1.2~12
  • Inquiry sms
  • Part Number
    CMI-MMPF322512BS NEW
  • Feature :

    Shield
    Metal
    Flat Wire
    Plating

  • Series : MMPF
  • LxW mm : 3.2x2.5
  • Height Max. mm : 1.2
  • Inductance μH : 0.68~4.7
  • DCR Max. : 23~135
  • Isat Typ. A : 2.9~8.1
  • Itemp Typ. A : 2.3~7.3
  • Inquiry sms
  • Part Number
    CMI-MMPF322530QL NEW
  • Feature :

    Shield
    Metal
    Round Wire
    Plating

  • Series : MMPF
  • LxW mm : 3.2x2.5
  • Height Max. mm : 3
  • Inductance μH : 3.3~4.7
  • DCR Max. : 60~78
  • Isat Typ. A : 2.9~3.6
  • Itemp Typ. A : 3.3~3.5
  • Inquiry sms
  • Part Number
    CMI-MMPF322533V NEW
  • Feature :

    Shield
    Metal
    Flat Wire
    Plating

  • Series : MMPF
  • LxW mm : 3.2x2.5
  • Height Max. mm : 3.3
  • Inductance μH : 2.2~3.3
  • DCR Max. : 48~57.6
  • Isat Typ. A : 8~8.5
  • Itemp Typ. A : 5.5~6.5
  • Inquiry sms
  • Part Number
    CMI-MMPF4012BS NEW
  • Feature :

    Shield
    Metal
    Flat Wire
    Plating

  • Series : MMPF
  • LxW mm : 4.0x4.0
  • Height Max. mm : 1.2
  • Inductance μH : 1~4.7
  • DCR Max. : 30~95
  • Isat Typ. A : 3.5~7
  • Itemp Typ. A : 2.7~5
  • Inquiry sms
  • Part Number
    CMI-MMPF4020H2 NEW
  • Feature :

    Shield
    Metal
    Flat Wire
    Plating

  • Series : MMPF
  • LxW mm : 4.0x4.0
  • Height Max. mm : 2
  • Inductance μH : 0.47~1.2
  • DCR Max. : 6.5~14
  • Isat Typ. A : 9.8~15
  • Itemp Typ. A : 8.3~13.5
  • Inquiry sms
  • Part Number
    CMI-MMPF7012H2 NEW
  • Feature :

    Shield
    Metal
    Flat Wire
    Plating

  • Series : MMPF
  • LxW mm : 7.0x6.0
  • Height Max. mm : 1.2
  • Inductance μH : 0.15~1.5
  • DCR Max. : 6~42
  • Isat Typ. A : 9~25
  • Itemp Typ. A : 8~16
  • Inquiry sms
  • Part Number
    CMI-MMPF7015H2 NEW
  • Feature :

    Shield
    Metal
    Flat Wire
    Plating

  • Series : MMPF
  • LxW mm : 7.0x6.0
  • Height Max. mm : 1.5
  • Inductance μH : 0.33~0.68
  • DCR Max. : 6~13.8
  • Isat Typ. A : 15.5~24
  • Itemp Typ. A : 12~16
  • Inquiry sms
  • Part Number
    CMI-MMPF7030H2 NEW
  • Feature :

    Shield
    Metal
    Flat Wire
    Plating

  • Series : MMPF
  • LxW mm : 7.0x6.0
  • Height Max. mm : 3
  • Inductance μH : 0.68~3.3
  • DCR Max. : 4.2~18.6
  • Isat Typ. A : 13~28
  • Itemp Typ. A : 11~20
  • Inquiry sms
