EMC Components

A filter used in electronic devices to eliminate electromagnetic interference.

Home
Products
EMC Components
Inductors(Coils)
RF Coils
EMC Components
Transformers
전자장치에서 전자파 노이즈를 제거하는 필터입니다.

Product Lineup

Common mode filter for signal lineCommon mode filter for power lineChip Bead for signal lineChip Bead for power line

Product Lineup

Product Spotlights

Automotive Ethernet Common Mode Chokes(ENG_KOR)
Automotive CAN FD Common Mode Chokes(ENG_KOR)
HDMI 1.3 EMC Solution(KOR)
HDMI 1.3 EMC Solution - HDMI 회로설계 제안(KOR)
HDMI 1.3 EMC Solution - Wii EMC 분석(KOR)
HDMI 1.3 EMC Solution - 애플 TV 분석(KOR)
Application Grade
Winding

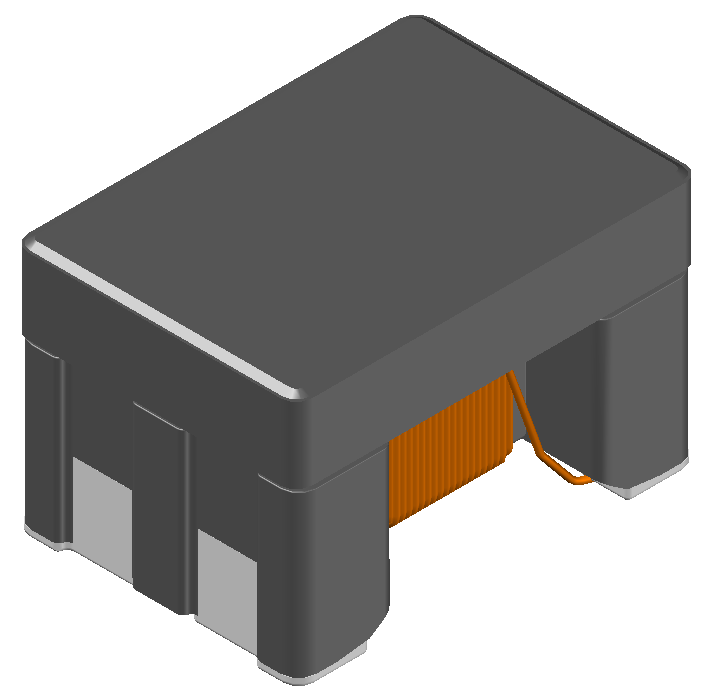

Common mode filter for signal line


Catalog

Automotive
Grade

Features

Series

Part Number

LxW
mm

Height Max.
mm

Common Impedance Typ.
Ω

Inductance Typ.
μH

DCR Max.
Ω

Rated Current Max.
A

Inquiry
picture_as_pdf Round Wire
Signal
 SCF
(DVI) 		CME-SCF2012D 2.0x1.2 1.4 50~90 0 0.3 0.4 sms
picture_as_pdf Round Wire
Signal
 SCF
(HDMI) 		CME-SCF1210H 1.2x1.0 0.9 60~90 0 0.3 0.25~0.4 sms
picture_as_pdf Round Wire
Signal
 SCF
(HDMI) 		CME-SCF2012H 2.0x1.2 1.4 67~90 0 0.3 0.4 sms
picture_as_pdf Round Wire
Signal
 SCF
(LVDS) 		CME-SCF2012N 2.0x1.2 1.4~2.2 67~1000 0 0.25~1 0.2~0.4 sms
picture_as_pdf Round Wire
Signal
 SCF
(LVDS) 		CME-SCF322516N-3P 3.2x2.5 1.6 1000 0 0.6 0.2 sms
picture_as_pdf Round Wire
Signal
 SCF
(LVDS) 		CME-SCF3216N 3.2x1.6 2.2 90~2200 0 0.3~1.2 0.2~0.4 sms
picture_as_pdf Round Wire
Signal
 SCF
(USB) 		CME-SCF1210U 1.2x1.0 0.9 50~90 0 0.3~0.4 0.2~0.25 sms
picture_as_pdf Round Wire
Signal
 SCF
(USB) 		CME-SCF2012U 2.0x1.2 1.4 50~90 0 0.25~0.3 0.4 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(A2B) 		CME-CSCF3225L-101 3.2x2.5 2.5 0 100 1.5 0.15 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(CAN-BUS) 		CME-CSCF3225B 3.2x2.5 2.5 550~5100 11~100 0.4~1.5 0.15~0.3 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(CAN-BUS) 		CME-CSCF3225B-A 3.2x2.5 2.5 550~5100 11~100 0.4~1.5 0.15~0.3 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(CAN-BUS) 		CME-CSCF4532B 4.5x3.2 3 600~5800 11~100 0.6~2 0.15~0.36 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(CAN-BUS) 		CME-CSCF4532B-A 4.5x3.2 3 600~5800 11~100 0.6~2 0.15~0.36 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(CAN-BUS) 		CME-CSCF4532B-B 4.5x3.2 3 2800 51 1 0.23 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(CAN-FD) 		CME-CSCF3225D
NEW		 3.2x2.5 2.5 0 51~100 3 0.12 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(Ethernet) 		CME-CSCF3225L-201 3.2x2.5 2.5 200 5 0.07 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(Ethernet) 		CME-CSCF4532L 4.5x3.2 3 0 200 4.5 0.1 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(Flex-Ray) 		CME-CSCF4532R 4.5x3.2 3 5500 100 1.5 0.2 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(USB2.0/3.0) 		CME-CSCF2012N 2.0x1.2 1.4 90 0 0.3 0.4 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(USB2.0/3.0) 		CME-CSCF2012H 2.0x1.2 1.4 90 0 0.3 0.3 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(USB2.0/3.0) 		CME-CSCF2012H-L 2.0x1.2 1.4 90 0 0.41 0.3 sms
picture_as_pdf directions_car Round Wire
Signal
 CSCF
(USB3.0) 		CME-CSCF201212U 2.0x1.2 1.4 40 0 0.11 0.5 sms
picture_as_pdf directions_car Round Wire
Signal
 CTCF CME-CTCF9040
NEW		 9.0x6.0 4.8 0 51~470 0.14~0.17 0.7~0.8 sms
picture_as_pdf
  • Part Number
    CME-SCF2012D
  • Feature :

    Round Wire
    Signal

  • Series : SCF(DVI)
  • LxW mm : 2.0x1.2
  • Height Max. mm : 1.4
  • Common Impedance Typ. Ω : 50~90
  • Inductance Typ. μH : 0
  • DCR Max. Ω : 0.3
  • Rated Current Max. A : 0.4
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-SCF1210H
  • Feature :

    Round Wire
    Signal

  • Series : SCF(HDMI)
  • LxW mm : 1.2x1.0
  • Height Max. mm : 0.9
  • Common Impedance Typ. Ω : 60~90
  • Inductance Typ. μH : 0
  • DCR Max. Ω : 0.3
  • Rated Current Max. A : 0.25~0.4
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-SCF2012H
  • Feature :

    Round Wire
    Signal

  • Series : SCF(HDMI)
  • LxW mm : 2.0x1.2
  • Height Max. mm : 1.4
  • Common Impedance Typ. Ω : 67~90
  • Inductance Typ. μH : 0
  • DCR Max. Ω : 0.3
  • Rated Current Max. A : 0.4
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-SCF2012N
  • Feature :

    Round Wire
    Signal

  • Series : SCF(LVDS)
  • LxW mm : 2.0x1.2
  • Height Max. mm : 1.4~2.2
  • Common Impedance Typ. Ω : 67~1000
  • Inductance Typ. μH : 0
  • DCR Max. Ω : 0.25~1
  • Rated Current Max. A : 0.2~0.4
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-SCF322516N-3P
  • Feature :

    Round Wire
    Signal

  • Series : SCF(LVDS)
  • LxW mm : 3.2x2.5
  • Height Max. mm : 1.6
  • Common Impedance Typ. Ω : 1000
  • Inductance Typ. μH : 0
  • DCR Max. Ω : 0.6
  • Rated Current Max. A : 0.2
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-SCF3216N
  • Feature :

    Round Wire
    Signal

  • Series : SCF(LVDS)
  • LxW mm : 3.2x1.6
  • Height Max. mm : 2.2
  • Common Impedance Typ. Ω : 90~2200
  • Inductance Typ. μH : 0
  • DCR Max. Ω : 0.3~1.2
  • Rated Current Max. A : 0.2~0.4
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-SCF1210U
  • Feature :

    Round Wire
    Signal

  • Series : SCF(USB)
  • LxW mm : 1.2x1.0
  • Height Max. mm : 0.9
  • Common Impedance Typ. Ω : 50~90
  • Inductance Typ. μH : 0
  • DCR Max. Ω : 0.3~0.4
  • Rated Current Max. A : 0.2~0.25
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-SCF2012U
  • Feature :

    Round Wire
    Signal

  • Series : SCF(USB)
  • LxW mm : 2.0x1.2
  • Height Max. mm : 1.4
  • Common Impedance Typ. Ω : 50~90
  • Inductance Typ. μH : 0
  • DCR Max. Ω : 0.25~0.3
  • Rated Current Max. A : 0.4
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF3225L-101
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(A2B)
  • LxW mm : 3.2x2.5
  • Height Max. mm : 2.5
  • Common Impedance Typ. Ω : 0
  • Inductance Typ. μH : 100
  • DCR Max. Ω : 1.5
  • Rated Current Max. A : 0.15
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF3225B
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(CAN-BUS)
  • LxW mm : 3.2x2.5
  • Height Max. mm : 2.5
  • Common Impedance Typ. Ω : 550~5100
  • Inductance Typ. μH : 11~100
  • DCR Max. Ω : 0.4~1.5
  • Rated Current Max. A : 0.15~0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF3225B-A
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(CAN-BUS)
  • LxW mm : 3.2x2.5
  • Height Max. mm : 2.5
  • Common Impedance Typ. Ω : 550~5100
  • Inductance Typ. μH : 11~100
  • DCR Max. Ω : 0.4~1.5
  • Rated Current Max. A : 0.15~0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF4532B
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(CAN-BUS)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 3
  • Common Impedance Typ. Ω : 600~5800
  • Inductance Typ. μH : 11~100
  • DCR Max. Ω : 0.6~2
  • Rated Current Max. A : 0.15~0.36
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF4532B-A
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(CAN-BUS)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 3
  • Common Impedance Typ. Ω : 600~5800
  • Inductance Typ. μH : 11~100
  • DCR Max. Ω : 0.6~2
  • Rated Current Max. A : 0.15~0.36
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF4532B-B
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(CAN-BUS)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 3
  • Common Impedance Typ. Ω : 2800
  • Inductance Typ. μH : 51
  • DCR Max. Ω : 1
  • Rated Current Max. A : 0.23
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF3225D NEW
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(CAN-FD)
  • LxW mm : 3.2x2.5
  • Height Max. mm : 2.5
  • Common Impedance Typ. Ω : 0
  • Inductance Typ. μH : 51~100
  • DCR Max. Ω : 3
  • Rated Current Max. A : 0.12
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF3225L-201
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(Ethernet)
  • LxW mm : 3.2x2.5
  • Height Max. mm : 2.5
  • Common Impedance Typ. Ω :
  • Inductance Typ. μH : 200
  • DCR Max. Ω : 5
  • Rated Current Max. A : 0.07
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF4532L
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(Ethernet)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 3
  • Common Impedance Typ. Ω : 0
  • Inductance Typ. μH : 200
  • DCR Max. Ω : 4.5
  • Rated Current Max. A : 0.1
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF4532R
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(Flex-Ray)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 3
  • Common Impedance Typ. Ω : 5500
  • Inductance Typ. μH : 100
  • DCR Max. Ω : 1.5
  • Rated Current Max. A : 0.2
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF2012N
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(USB2.0/3.0)
  • LxW mm : 2.0x1.2
  • Height Max. mm : 1.4
  • Common Impedance Typ. Ω : 90
  • Inductance Typ. μH : 0
  • DCR Max. Ω : 0.3
  • Rated Current Max. A : 0.4
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF2012H
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(USB2.0/3.0)
  • LxW mm : 2.0x1.2
  • Height Max. mm : 1.4
  • Common Impedance Typ. Ω : 90
  • Inductance Typ. μH : 0
  • DCR Max. Ω : 0.3
  • Rated Current Max. A : 0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF2012H-L
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(USB2.0/3.0)
  • LxW mm : 2.0x1.2
  • Height Max. mm : 1.4
  • Common Impedance Typ. Ω : 90
  • Inductance Typ. μH : 0
  • DCR Max. Ω : 0.41
  • Rated Current Max. A : 0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CSCF201212U
  • Feature :

    Round Wire
    Signal

  • Series : CSCF(USB3.0)
  • LxW mm : 2.0x1.2
  • Height Max. mm : 1.4
  • Common Impedance Typ. Ω : 40
  • Inductance Typ. μH : 0
  • DCR Max. Ω : 0.11
  • Rated Current Max. A : 0.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CTCF9040 NEW
  • Feature :

    Round Wire
    Signal

  • Series : CTCF
  • LxW mm : 9.0x6.0
  • Height Max. mm : 4.8
  • Common Impedance Typ. Ω : 0
  • Inductance Typ. μH : 51~470
  • DCR Max. Ω : 0.14~0.17
  • Rated Current Max. A : 0.7~0.8
  • Inquiry sms

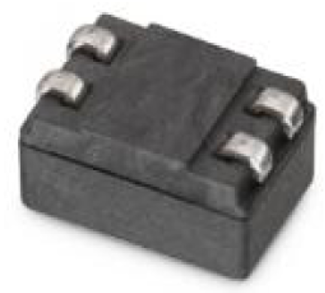

Common mode filter for power line


Catalog

Automotive
Grade

Features

Series

Part Number

LxW
mm

Height Max.
mm

Common Impedance Typ.
Ω

DCR Max.
Ω

Rated Current Max.
A

Inquiry
picture_as_pdf Round Wire
Power
 PCF CME-PCF474521PN 4.7x4.5 2.1 230~1400 0.055~0.095 1.1~1.8 sms
picture_as_pdf Round Wire
Power
 PCF CME-PCF706040PN 7.0x6.0 4 300~700 0.01~0.016 3.8~4.8 sms
picture_as_pdf Round Wire
Power
 PCF CME-PCF907050PN 9.0x6.0 5 700~1500 0.01~0.033 2.8~4.8 sms
picture_as_pdf Round Wire
Power
 PCF CME-PCF121065PN 12x10 6.5 230~1000 0.0025~0.0155 5.8~9.8 sms
picture_as_pdf Round Wire
Power
 PCF CME-PCF151362PN 15x13 6.2 300~550 0.0047~0.007 9.8~12.5 sms
picture_as_pdf Flat Wire
Power
 SQ16 CME-FLF16CB 19x12 18 0 0 1.2~2 sms
picture_as_pdf Flat Wire
Power
 SQ19A CME-FLF19CB-A 21 0 0 1.3~2.5 sms
picture_as_pdf Flat Wire
Power
 SQ19 CME-FLF19CB 23x22 14 0 0 1.5~3 sms
picture_as_pdf Flat Wire
Power
 SQ24 CME-FLF24CB 28x25 19 0 0 2~4 sms
picture_as_pdf Flat Wire
Power
 SQ29 CME-FLF29CB 22 0 0 3~5 sms
picture_as_pdf directions_car Round Wire
Power
 CPCF CME-CPCF474521PN 4.7x4.5 2.1 230~1400 0.055~0.095 1.1~1.8 sms
picture_as_pdf directions_car Round Wire
Power
 CPCF CME-CPCF706040PN 7.0x6.0 4 100~700 0.01~0.018 3.8~9 sms
picture_as_pdf directions_car Round Wire
Power
 CPCF CME-CPCF907050PN 9.0x6.0 5 700~1500 0.01~0.033 2.8~4.8 sms
picture_as_pdf directions_car Round Wire
Power
 CPCF CME-CPCF121065PN 12x10 6.5 230~1000 0.0025~0.0155 5.8~9.8 sms
picture_as_pdf directions_car Round Wire
Power
 CPCF CME-CPCF151365PN 15x13 6.5 300~550 0.0047~0.007 9.8~12.5 sms
picture_as_pdf directions_car Round Wire
Power
 CPCF CME-CPCF1613PN 16x13 15 200~500 0.0015~0.0045 12~30 sms
picture_as_pdf directions_car Round Wire
Power
 CPCF CME-CPCF2612PN 26x12 30.5 560~3400 0.0015~0.0125 8~31 sms
picture_as_pdf
  • Part Number
    CME-PCF474521PN
  • Feature :

    Round Wire
    Power

  • Series : PCF
  • LxW mm : 4.7x4.5
  • Height Max. mm : 2.1
  • Common Impedance Typ. Ω : 230~1400
  • DCR Max. Ω : 0.055~0.095
  • Rated Current Max. A : 1.1~1.8
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-PCF706040PN
  • Feature :

    Round Wire
    Power

  • Series : PCF
  • LxW mm : 7.0x6.0
  • Height Max. mm : 4
  • Common Impedance Typ. Ω : 300~700
  • DCR Max. Ω : 0.01~0.016
  • Rated Current Max. A : 3.8~4.8
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-PCF907050PN
  • Feature :

    Round Wire
    Power

  • Series : PCF
  • LxW mm : 9.0x6.0
  • Height Max. mm : 5
  • Common Impedance Typ. Ω : 700~1500
  • DCR Max. Ω : 0.01~0.033
  • Rated Current Max. A : 2.8~4.8
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-PCF121065PN
  • Feature :

    Round Wire
    Power

  • Series : PCF
  • LxW mm : 12x10
  • Height Max. mm : 6.5
  • Common Impedance Typ. Ω : 230~1000
  • DCR Max. Ω : 0.0025~0.0155
  • Rated Current Max. A : 5.8~9.8
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-PCF151362PN
  • Feature :

    Round Wire
    Power

  • Series : PCF
  • LxW mm : 15x13
  • Height Max. mm : 6.2
  • Common Impedance Typ. Ω : 300~550
  • DCR Max. Ω : 0.0047~0.007
  • Rated Current Max. A : 9.8~12.5
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-FLF16CB
  • Feature :

    Flat Wire
    Power

  • Series : SQ16
  • LxW mm : 19x12
  • Height Max. mm : 18
  • Common Impedance Typ. Ω : 0
  • DCR Max. Ω : 0
  • Rated Current Max. A : 1.2~2
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-FLF19CB-A
  • Feature :

    Flat Wire
    Power

  • Series : SQ19A
  • LxW mm :
  • Height Max. mm : 21
  • Common Impedance Typ. Ω : 0
  • DCR Max. Ω : 0
  • Rated Current Max. A : 1.3~2.5
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-FLF19CB
  • Feature :

    Flat Wire
    Power

  • Series : SQ19
  • LxW mm : 23x22
  • Height Max. mm : 14
  • Common Impedance Typ. Ω : 0
  • DCR Max. Ω : 0
  • Rated Current Max. A : 1.5~3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-FLF24CB
  • Feature :

    Flat Wire
    Power

  • Series : SQ24
  • LxW mm : 28x25
  • Height Max. mm : 19
  • Common Impedance Typ. Ω : 0
  • DCR Max. Ω : 0
  • Rated Current Max. A : 2~4
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-FLF29CB
  • Feature :

    Flat Wire
    Power

  • Series : SQ29
  • LxW mm :
  • Height Max. mm : 22
  • Common Impedance Typ. Ω : 0
  • DCR Max. Ω : 0
  • Rated Current Max. A : 3~5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPCF474521PN
  • Feature :

    Round Wire
    Power

  • Series : CPCF
  • LxW mm : 4.7x4.5
  • Height Max. mm : 2.1
  • Common Impedance Typ. Ω : 230~1400
  • DCR Max. Ω : 0.055~0.095
  • Rated Current Max. A : 1.1~1.8
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPCF706040PN
  • Feature :

    Round Wire
    Power

  • Series : CPCF
  • LxW mm : 7.0x6.0
  • Height Max. mm : 4
  • Common Impedance Typ. Ω : 100~700
  • DCR Max. Ω : 0.01~0.018
  • Rated Current Max. A : 3.8~9
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPCF907050PN
  • Feature :

    Round Wire
    Power

  • Series : CPCF
  • LxW mm : 9.0x6.0
  • Height Max. mm : 5
  • Common Impedance Typ. Ω : 700~1500
  • DCR Max. Ω : 0.01~0.033
  • Rated Current Max. A : 2.8~4.8
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPCF121065PN
  • Feature :

    Round Wire
    Power

  • Series : CPCF
  • LxW mm : 12x10
  • Height Max. mm : 6.5
  • Common Impedance Typ. Ω : 230~1000
  • DCR Max. Ω : 0.0025~0.0155
  • Rated Current Max. A : 5.8~9.8
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPCF151365PN
  • Feature :

    Round Wire
    Power

  • Series : CPCF
  • LxW mm : 15x13
  • Height Max. mm : 6.5
  • Common Impedance Typ. Ω : 300~550
  • DCR Max. Ω : 0.0047~0.007
  • Rated Current Max. A : 9.8~12.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPCF1613PN
  • Feature :

    Round Wire
    Power

  • Series : CPCF
  • LxW mm : 16x13
  • Height Max. mm : 15
  • Common Impedance Typ. Ω : 200~500
  • DCR Max. Ω : 0.0015~0.0045
  • Rated Current Max. A : 12~30
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPCF2612PN
  • Feature :

    Round Wire
    Power

  • Series : CPCF
  • LxW mm : 26x12
  • Height Max. mm : 30.5
  • Common Impedance Typ. Ω : 560~3400
  • DCR Max. Ω : 0.0015~0.0125
  • Rated Current Max. A : 8~31
  • Inquiry sms

Chip Bead for signal line


Catalog

Automotive
Grade

Features

Series

Part Number

LxW
mm

Height Max.
mm

Impedance Typ.
Ω

DCR Max.
Ω

Rated Current Max.
A

Inquiry
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB060303A 0.6x0.3 0.33 40~330 0.3~0.9 0.15~0.3 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB100505H 1.0x0.5 0.55 10~600 0.1~2.5 0.05~0.5 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB100505B 1.0x0.5 0.55 30~600 0.2~1.5 0.05~0.3 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB100505K 1.0x0.5 0.55 30~600 0.15~1.5 0.05~0.3 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB160808B 1.6x0.8 0.95 5~1000 0.08~0.6 0.3~0.7 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB160808H 1.6x0.8 0.95 7~1000 0.1~1.1 0.05~0.9 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB160808A 1.6x0.8 0.95 19~1500 0.1~0.6 0.2~0.4 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB160808K 1.6x0.8 0.95 470~2500 0.55~1 0.05~0.2 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB201209B 2.0x1.25 1.05 5~2700 0.07~0.6 0.2~0.5 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB201209H 2.0x1.25 1.05 5~600 0.07~0.65 0.2~0.5 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB201209A 2.0x1.25 1.05 17~1500 0.1~0.7 0.3 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB201209K 2.0x1.25 1.05 80~2500 0.3~0.7 0.2~0.3 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB321611H 3.2x1.6 1.3 5~600 0.07~0.45 0.3~0.5 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB321611B 3.2x1.6 1.3 19~2000 0.1~0.45 0.2~0.5 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB321611A 3.2x1.6 1.3 26~1800 0.1~0.4 0.35~0.8 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB321611K 3.2x1.6 1.3 600~1200 0.5~0.7 0.2 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB322513A 3.2x2.5 1.5 31~60 0.1~0.3 0.4~0.5 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB322513B 3.2x2.5 1.5 31 0.1 0.5 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB453215A 4.5x3.2 1.7 31~150 0.1~0.2 0.5 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB453215B 4.5x3.2 1.7 70 0.2 0.5 sms
picture_as_pdf Multilayer
Signal
 NMCB CME-NMCB451616A 4.5x1.6 1.8 60~600 0.2~0.8 0.2~0.5 sms
picture_as_pdf Multilayer
Signal
 HMCB
(High Current) 		CME-HMCB100505A 1.0x0.5 0.55 10~120 0.03~0.09 1.2~3 sms
picture_as_pdf Multilayer
Signal
 HMCB
(High Current) 		CME-HMCB160808A 1.6x0.8 0.95 30~600 0.04~0.3 1~3 sms
picture_as_pdf Multilayer
Signal
 HMCB
(High Current) 		CME-HMCB201209A 2.0x1.25 1.05 17~1500 0.03~0.3 1~3 sms
picture_as_pdf Multilayer
Signal
 HMCB
(High Current) 		CME-HMCB201209B 2.0x1.25 1.05 120 0.04 3 sms
picture_as_pdf Multilayer
Signal
 HMCB
(High Current) 		CME-HMCB321611A 3.2x1.6 1.3 19~1000 0.03~0.3 1~3 sms
picture_as_pdf Multilayer
Signal
 HMCB
(High Current) 		CME-HMCB322513A 3.2x2.5 1.5 52~60 0.03 3 sms
picture_as_pdf Multilayer
Signal
 HMCB
(High Current) 		CME-HMCB322513I 3.2x2.5 1.5 60 0.035 1.5 sms
picture_as_pdf Multilayer
Signal
 HMCB
(High Current) 		CME-HMCB453215A 4.5x3.2 1.7 120~150 0.04 3 sms
picture_as_pdf Multilayer
Signal
 HMCB
(High Current) 		CME-HMCB451616A 4.5x1.6 1.8 60~1000 0.04~0.1 1.5~3 sms
picture_as_pdf Multilayer
Signal
 GMCB
(GHz noise) 		CME-GMCB100505H 1.0x0.5 0.55 120~330 0.7~1.5 0.2~0.3 sms
picture_as_pdf Multilayer
Signal
 GMCB
(GHz noise) 		CME-GMCB100505K 1.0x0.5 0.55 120~600 0.5~0.85 3 sms
picture_as_pdf Multilayer
Signal
 GMCB
(GHz noise) 		CME-GMCB100505B 1.0x0.5 0.55 120~600 0.5~0.85 0.3 sms
picture_as_pdf Multilayer
Signal
 GMCB
(GHz noise) 		CME-GMCB100505A 1.0x0.5 0.55 200~1000 0.7~1.6 0.1~0.2 sms
picture_as_pdf Multilayer
Signal
 GMCB
(GHz noise) 		CME-GMCB160808A 1.6x0.8 0.95 120~1200 0.25~1.5 0.05~0.3 sms
picture_as_pdf Multilayer
Signal
 GMCB
(GHz noise) 		CME-GMCB160808B 1.6x0.8 0.95 120~1000 0.25~1.8 0.05~0.3 sms
picture_as_pdf Multilayer
Signal
 GMCB
(GHz noise) 		CME-GMCB160808H 1.6x0.8 0.95 120~600 0.5~1.2 0.05~0.2 sms
picture_as_pdf Multilayer
Signal
 GMCB
(GHz noise) 		CME-GMCB160808K 1.6x0.8 0.95 120~1000 0.3~1 0.1~0.3 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB060303A 0.6x0.3 0.33 40~330 0.3~0.9 0.15~0.3 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB100505H 1.0x0.5 0.55 10~600 0.1~2.5 0.05~0.5 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB100505B 1.0x0.5 0.55 30~600 0.2~1.5 0.05~0.3 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB100505K 1.0x0.5 0.55 30~600 0.15~1.5 0.05~0.3 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB160808B 1.6x0.8 0.95 5~1000 0.08~0.6 0.3~0.7 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB160808H 1.6x0.8 0.95 7~1000 0.1~1.1 0.05~0.9 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB160808A 1.6x0.8 0.95 19~1500 0.1~0.6 0.2~0.4 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB160808K 1.6x0.8 0.95 470~2500 0.55~1 0.05~0.2 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB201209B 2.0x1.25 1.05 5~2700 0.07~0.6 0.2~0.5 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB201209H 2.0x1.25 1.05 5~600 0.07~0.65 0.2~0.5 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB201209A 2.0x1.25 1.05 17~1500 0.1~0.7 0.3 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB201209K 2.0x1.25 1.05 80~2500 0.3~0.7 0.2~0.3 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB321611H 3.2x1.6 1.3 5~600 0.07~0.45 0.3~0.5 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB321611B 3.2x1.6 1.3 19~2000 0.1~0.45 0.2~0.5 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB321611A 3.2x1.6 1.3 26~1800 0.1~0.4 0.35~0.8 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB321611K 3.2x1.6 1.3 600~1200 0.5~0.7 0.2 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB322513A 3.2x2.5 1.5 31~60 0.1~0.3 0.4~0.5 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB322513B 3.2x2.5 1.5 31 0.1 0.5 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB453215A 4.5x3.2 1.7 31~150 0.1~0.2 0.5 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB453215B 4.5x3.2 1.7 70 0.2 0.5 sms
picture_as_pdf directions_car Multilayer
Signal
 CNMCB CME-CNMCB451616A 4.5x1.6 1.8 60~600 0.2~0.8 0.2~0.5 sms
picture_as_pdf directions_car Multilayer
Signal
 CHMCB
(High Current) 		CME-CHMCB100505A 1.0x0.5 0.55 10~120 0.03~0.09 1.2~3 sms
picture_as_pdf directions_car Multilayer
Signal
 CHMCB
(High Current) 		CME-CHMCB160808A 1.6x0.8 0.95 30~600 0.04~0.3 1~3 sms
picture_as_pdf directions_car Multilayer
Signal
 CHMCB
(High Current) 		CME-CHMCB201209A 2.0x1.25 1.05 17~1500 0.03~0.3 1~3 sms
picture_as_pdf directions_car Multilayer
Signal
 CHMCB
(High Current) 		CME-CHMCB201209B 2.0x1.25 1.05 120 0.04 3 sms
picture_as_pdf directions_car Multilayer
Signal
 CHMCB
(High Current) 		CME-CHMCB321611A 3.2x1.6 1.3 19~1000 0.03~0.3 1~3 sms
picture_as_pdf directions_car Multilayer
Signal
 CHMCB
(High Current) 		CME-CHMCB321611I 3.2x1.6 1.3 31 0.045 1.5 sms
picture_as_pdf directions_car Multilayer
Signal
 CHMCB
(High Current) 		CME-CHMCB322513A 3.2x2.5 1.5 52~60 0.03 3 sms
picture_as_pdf directions_car Multilayer
Signal
 CHMCB
(High Current) 		CME-CHMCB322513I 3.2x2.5 1.5 60 0.035 1.5 sms
picture_as_pdf directions_car Multilayer
Signal
 CHMCB
(High Current) 		CME-CHMCB453215A 4.5x3.2 1.7 120~150 0.04 3 sms
picture_as_pdf directions_car Multilayer
Signal
 CHMCB
(High Current) 		CME-CHMCB453215K 4.5x3.2 1.7 150 0.04 3 sms
picture_as_pdf directions_car Multilayer
Signal
 CHMCB
(High Current) 		CME-CHMCB451616A 4.5x1.6 1.8 60~1000 0.04~0.1 1.5~3 sms
picture_as_pdf directions_car Multilayer
Signal
 CGMCB
(GHz noise) 		CME-CGMCB100505B 1.0x0.5 0.55 120~600 0.5~0.85 0.3 sms
picture_as_pdf directions_car Multilayer
Signal
 CGMCB
(GHz noise) 		CME-CGMCB100505H 1.0x0.5 0.55 120~330 0.7~1.5 0.2~0.3 sms
picture_as_pdf directions_car Multilayer
Signal
 CGMCB
(GHz noise) 		CME-CGMCB100505K 1.0x0.5 0.55 120~600 0.5~0.85 3 sms
picture_as_pdf directions_car Multilayer
Signal
 CGMCB
(GHz noise) 		CME-CGMCB100505A 1.0x0.5 0.55 200~1000 0.7~1.6 0.1~0.2 sms
picture_as_pdf directions_car Multilayer
Signal
 CGMCB
(GHz noise) 		CME-CGMCB160808A 1.6x0.8 0.95 120~1200 0.25~1.5 0.05~0.3 sms
picture_as_pdf directions_car Multilayer
Signal
 CGMCB
(GHz noise) 		CME-CGMCB160808B 1.6x0.8 0.95 120~1000 0.25~1.8 0.05~0.3 sms
picture_as_pdf directions_car Multilayer
Signal
 CGMCB
(GHz noise) 		CME-CGMCB160808H 1.6x0.8 0.95 120~600 0.5~1.2 0.05~0.2 sms
picture_as_pdf directions_car Multilayer
Signal
 CGMCB
(GHz noise) 		CME-CGMCB160808K 1.6x0.8 0.95 120~1000 0.3~1 0.1~0.3 sms
picture_as_pdf
  • Part Number
    CME-NMCB060303A
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 0.6x0.3
  • Height Max. mm : 0.33
  • Impedance Typ. Ω : 40~330
  • DCR Max. Ω : 0.3~0.9
  • Rated Current Max. A : 0.15~0.3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB100505H
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 10~600
  • DCR Max. Ω : 0.1~2.5
  • Rated Current Max. A : 0.05~0.5
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB100505B
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 30~600
  • DCR Max. Ω : 0.2~1.5
  • Rated Current Max. A : 0.05~0.3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB100505K
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 30~600
  • DCR Max. Ω : 0.15~1.5
  • Rated Current Max. A : 0.05~0.3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB160808B
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 5~1000
  • DCR Max. Ω : 0.08~0.6
  • Rated Current Max. A : 0.3~0.7
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB160808H
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 7~1000
  • DCR Max. Ω : 0.1~1.1
  • Rated Current Max. A : 0.05~0.9
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB160808A
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 19~1500
  • DCR Max. Ω : 0.1~0.6
  • Rated Current Max. A : 0.2~0.4
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB160808K
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 470~2500
  • DCR Max. Ω : 0.55~1
  • Rated Current Max. A : 0.05~0.2
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB201209B
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • Impedance Typ. Ω : 5~2700
  • DCR Max. Ω : 0.07~0.6
  • Rated Current Max. A : 0.2~0.5
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB201209H
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • Impedance Typ. Ω : 5~600
  • DCR Max. Ω : 0.07~0.65
  • Rated Current Max. A : 0.2~0.5
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB201209A
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • Impedance Typ. Ω : 17~1500
  • DCR Max. Ω : 0.1~0.7
  • Rated Current Max. A : 0.3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB201209K
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • Impedance Typ. Ω : 80~2500
  • DCR Max. Ω : 0.3~0.7
  • Rated Current Max. A : 0.2~0.3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB321611H
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.3
  • Impedance Typ. Ω : 5~600
  • DCR Max. Ω : 0.07~0.45
  • Rated Current Max. A : 0.3~0.5
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB321611B
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.3
  • Impedance Typ. Ω : 19~2000
  • DCR Max. Ω : 0.1~0.45
  • Rated Current Max. A : 0.2~0.5
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB321611A
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.3
  • Impedance Typ. Ω : 26~1800
  • DCR Max. Ω : 0.1~0.4
  • Rated Current Max. A : 0.35~0.8
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB321611K
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.3
  • Impedance Typ. Ω : 600~1200
  • DCR Max. Ω : 0.5~0.7
  • Rated Current Max. A : 0.2
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB322513A
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 3.2x2.5
  • Height Max. mm : 1.5
  • Impedance Typ. Ω : 31~60
  • DCR Max. Ω : 0.1~0.3
  • Rated Current Max. A : 0.4~0.5
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB322513B
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 3.2x2.5
  • Height Max. mm : 1.5
  • Impedance Typ. Ω : 31
  • DCR Max. Ω : 0.1
  • Rated Current Max. A : 0.5
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB453215A
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 4.5x3.2
  • Height Max. mm : 1.7
  • Impedance Typ. Ω : 31~150
  • DCR Max. Ω : 0.1~0.2
  • Rated Current Max. A : 0.5
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB453215B
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 4.5x3.2
  • Height Max. mm : 1.7
  • Impedance Typ. Ω : 70
  • DCR Max. Ω : 0.2
  • Rated Current Max. A : 0.5
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-NMCB451616A
  • Feature :

    Multilayer
    Signal

  • Series : NMCB
  • LxW mm : 4.5x1.6
  • Height Max. mm : 1.8
  • Impedance Typ. Ω : 60~600
  • DCR Max. Ω : 0.2~0.8
  • Rated Current Max. A : 0.2~0.5
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-HMCB100505A
  • Feature :

    Multilayer
    Signal

  • Series : HMCB(High Current)
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 10~120
  • DCR Max. Ω : 0.03~0.09
  • Rated Current Max. A : 1.2~3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-HMCB160808A
  • Feature :

    Multilayer
    Signal

  • Series : HMCB(High Current)
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 30~600
  • DCR Max. Ω : 0.04~0.3
  • Rated Current Max. A : 1~3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-HMCB201209A
  • Feature :

    Multilayer
    Signal

  • Series : HMCB(High Current)
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • Impedance Typ. Ω : 17~1500
  • DCR Max. Ω : 0.03~0.3
  • Rated Current Max. A : 1~3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-HMCB201209B
  • Feature :

    Multilayer
    Signal

  • Series : HMCB(High Current)
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • Impedance Typ. Ω : 120
  • DCR Max. Ω : 0.04
  • Rated Current Max. A : 3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-HMCB321611A
  • Feature :

    Multilayer
    Signal

  • Series : HMCB(High Current)
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.3
  • Impedance Typ. Ω : 19~1000
  • DCR Max. Ω : 0.03~0.3
  • Rated Current Max. A : 1~3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-HMCB322513A
  • Feature :

    Multilayer
    Signal

  • Series : HMCB(High Current)
  • LxW mm : 3.2x2.5
  • Height Max. mm : 1.5
  • Impedance Typ. Ω : 52~60
  • DCR Max. Ω : 0.03
  • Rated Current Max. A : 3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-HMCB322513I
  • Feature :

    Multilayer
    Signal

  • Series : HMCB(High Current)
  • LxW mm : 3.2x2.5
  • Height Max. mm : 1.5
  • Impedance Typ. Ω : 60
  • DCR Max. Ω : 0.035
  • Rated Current Max. A : 1.5
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-HMCB453215A
  • Feature :

    Multilayer
    Signal

  • Series : HMCB(High Current)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 1.7
  • Impedance Typ. Ω : 120~150
  • DCR Max. Ω : 0.04
  • Rated Current Max. A : 3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-HMCB451616A
  • Feature :

    Multilayer
    Signal

  • Series : HMCB(High Current)
  • LxW mm : 4.5x1.6
  • Height Max. mm : 1.8
  • Impedance Typ. Ω : 60~1000
  • DCR Max. Ω : 0.04~0.1
  • Rated Current Max. A : 1.5~3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-GMCB100505H
  • Feature :

    Multilayer
    Signal

  • Series : GMCB(GHz noise)
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 120~330
  • DCR Max. Ω : 0.7~1.5
  • Rated Current Max. A : 0.2~0.3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-GMCB100505K
  • Feature :

    Multilayer
    Signal

  • Series : GMCB(GHz noise)
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 120~600
  • DCR Max. Ω : 0.5~0.85
  • Rated Current Max. A : 3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-GMCB100505B
  • Feature :

    Multilayer
    Signal

  • Series : GMCB(GHz noise)
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 120~600
  • DCR Max. Ω : 0.5~0.85
  • Rated Current Max. A : 0.3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-GMCB100505A
  • Feature :

    Multilayer
    Signal

  • Series : GMCB(GHz noise)
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 200~1000
  • DCR Max. Ω : 0.7~1.6
  • Rated Current Max. A : 0.1~0.2
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-GMCB160808A
  • Feature :

    Multilayer
    Signal

  • Series : GMCB(GHz noise)
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 120~1200
  • DCR Max. Ω : 0.25~1.5
  • Rated Current Max. A : 0.05~0.3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-GMCB160808B
  • Feature :

    Multilayer
    Signal

  • Series : GMCB(GHz noise)
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 120~1000
  • DCR Max. Ω : 0.25~1.8
  • Rated Current Max. A : 0.05~0.3
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-GMCB160808H
  • Feature :

    Multilayer
    Signal

  • Series : GMCB(GHz noise)
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 120~600
  • DCR Max. Ω : 0.5~1.2
  • Rated Current Max. A : 0.05~0.2
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-GMCB160808K
  • Feature :

    Multilayer
    Signal

  • Series : GMCB(GHz noise)
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 120~1000
  • DCR Max. Ω : 0.3~1
  • Rated Current Max. A : 0.1~0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB060303A
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 0.6x0.3
  • Height Max. mm : 0.33
  • Impedance Typ. Ω : 40~330
  • DCR Max. Ω : 0.3~0.9
  • Rated Current Max. A : 0.15~0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB100505H
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 10~600
  • DCR Max. Ω : 0.1~2.5
  • Rated Current Max. A : 0.05~0.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB100505B
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 30~600
  • DCR Max. Ω : 0.2~1.5
  • Rated Current Max. A : 0.05~0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB100505K
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 30~600
  • DCR Max. Ω : 0.15~1.5
  • Rated Current Max. A : 0.05~0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB160808B
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 5~1000
  • DCR Max. Ω : 0.08~0.6
  • Rated Current Max. A : 0.3~0.7
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB160808H
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 7~1000
  • DCR Max. Ω : 0.1~1.1
  • Rated Current Max. A : 0.05~0.9
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB160808A
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 19~1500
  • DCR Max. Ω : 0.1~0.6
  • Rated Current Max. A : 0.2~0.4
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB160808K
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 470~2500
  • DCR Max. Ω : 0.55~1
  • Rated Current Max. A : 0.05~0.2
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB201209B
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • Impedance Typ. Ω : 5~2700
  • DCR Max. Ω : 0.07~0.6
  • Rated Current Max. A : 0.2~0.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB201209H
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • Impedance Typ. Ω : 5~600
  • DCR Max. Ω : 0.07~0.65
  • Rated Current Max. A : 0.2~0.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB201209A
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • Impedance Typ. Ω : 17~1500
  • DCR Max. Ω : 0.1~0.7
  • Rated Current Max. A : 0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB201209K
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • Impedance Typ. Ω : 80~2500
  • DCR Max. Ω : 0.3~0.7
  • Rated Current Max. A : 0.2~0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB321611H
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.3
  • Impedance Typ. Ω : 5~600
  • DCR Max. Ω : 0.07~0.45
  • Rated Current Max. A : 0.3~0.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB321611B
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.3
  • Impedance Typ. Ω : 19~2000
  • DCR Max. Ω : 0.1~0.45
  • Rated Current Max. A : 0.2~0.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB321611A
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.3
  • Impedance Typ. Ω : 26~1800
  • DCR Max. Ω : 0.1~0.4
  • Rated Current Max. A : 0.35~0.8
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB321611K
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.3
  • Impedance Typ. Ω : 600~1200
  • DCR Max. Ω : 0.5~0.7
  • Rated Current Max. A : 0.2
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB322513A
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 3.2x2.5
  • Height Max. mm : 1.5
  • Impedance Typ. Ω : 31~60
  • DCR Max. Ω : 0.1~0.3
  • Rated Current Max. A : 0.4~0.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB322513B
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 3.2x2.5
  • Height Max. mm : 1.5
  • Impedance Typ. Ω : 31
  • DCR Max. Ω : 0.1
  • Rated Current Max. A : 0.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB453215A
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 4.5x3.2
  • Height Max. mm : 1.7
  • Impedance Typ. Ω : 31~150
  • DCR Max. Ω : 0.1~0.2
  • Rated Current Max. A : 0.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB453215B
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 4.5x3.2
  • Height Max. mm : 1.7
  • Impedance Typ. Ω : 70
  • DCR Max. Ω : 0.2
  • Rated Current Max. A : 0.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CNMCB451616A
  • Feature :

    Multilayer
    Signal

  • Series : CNMCB
  • LxW mm : 4.5x1.6
  • Height Max. mm : 1.8
  • Impedance Typ. Ω : 60~600
  • DCR Max. Ω : 0.2~0.8
  • Rated Current Max. A : 0.2~0.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CHMCB100505A
  • Feature :

    Multilayer
    Signal

  • Series : CHMCB(High Current)
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 10~120
  • DCR Max. Ω : 0.03~0.09
  • Rated Current Max. A : 1.2~3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CHMCB160808A
  • Feature :

    Multilayer
    Signal

  • Series : CHMCB(High Current)
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 30~600
  • DCR Max. Ω : 0.04~0.3
  • Rated Current Max. A : 1~3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CHMCB201209A
  • Feature :

    Multilayer
    Signal

  • Series : CHMCB(High Current)
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • Impedance Typ. Ω : 17~1500
  • DCR Max. Ω : 0.03~0.3
  • Rated Current Max. A : 1~3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CHMCB201209B
  • Feature :

    Multilayer
    Signal

  • Series : CHMCB(High Current)
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • Impedance Typ. Ω : 120
  • DCR Max. Ω : 0.04
  • Rated Current Max. A : 3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CHMCB321611A
  • Feature :

    Multilayer
    Signal

  • Series : CHMCB(High Current)
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.3
  • Impedance Typ. Ω : 19~1000
  • DCR Max. Ω : 0.03~0.3
  • Rated Current Max. A : 1~3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CHMCB321611I
  • Feature :

    Multilayer
    Signal

  • Series : CHMCB(High Current)
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.3
  • Impedance Typ. Ω : 31
  • DCR Max. Ω : 0.045
  • Rated Current Max. A : 1.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CHMCB322513A
  • Feature :

    Multilayer
    Signal

  • Series : CHMCB(High Current)
  • LxW mm : 3.2x2.5
  • Height Max. mm : 1.5
  • Impedance Typ. Ω : 52~60
  • DCR Max. Ω : 0.03
  • Rated Current Max. A : 3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CHMCB322513I
  • Feature :

    Multilayer
    Signal

  • Series : CHMCB(High Current)
  • LxW mm : 3.2x2.5
  • Height Max. mm : 1.5
  • Impedance Typ. Ω : 60
  • DCR Max. Ω : 0.035
  • Rated Current Max. A : 1.5
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CHMCB453215A
  • Feature :

    Multilayer
    Signal

  • Series : CHMCB(High Current)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 1.7
  • Impedance Typ. Ω : 120~150
  • DCR Max. Ω : 0.04
  • Rated Current Max. A : 3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CHMCB453215K
  • Feature :

    Multilayer
    Signal

  • Series : CHMCB(High Current)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 1.7
  • Impedance Typ. Ω : 150
  • DCR Max. Ω : 0.04
  • Rated Current Max. A : 3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CHMCB451616A
  • Feature :

    Multilayer
    Signal

  • Series : CHMCB(High Current)
  • LxW mm : 4.5x1.6
  • Height Max. mm : 1.8
  • Impedance Typ. Ω : 60~1000
  • DCR Max. Ω : 0.04~0.1
  • Rated Current Max. A : 1.5~3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CGMCB100505B
  • Feature :

    Multilayer
    Signal

  • Series : CGMCB(GHz noise)
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 120~600
  • DCR Max. Ω : 0.5~0.85
  • Rated Current Max. A : 0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CGMCB100505H
  • Feature :

    Multilayer
    Signal

  • Series : CGMCB(GHz noise)
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 120~330
  • DCR Max. Ω : 0.7~1.5
  • Rated Current Max. A : 0.2~0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CGMCB100505K
  • Feature :

    Multilayer
    Signal

  • Series : CGMCB(GHz noise)
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 120~600
  • DCR Max. Ω : 0.5~0.85
  • Rated Current Max. A : 3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CGMCB100505A
  • Feature :

    Multilayer
    Signal

  • Series : CGMCB(GHz noise)
  • LxW mm : 1.0x0.5
  • Height Max. mm : 0.55
  • Impedance Typ. Ω : 200~1000
  • DCR Max. Ω : 0.7~1.6
  • Rated Current Max. A : 0.1~0.2
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CGMCB160808A
  • Feature :

    Multilayer
    Signal

  • Series : CGMCB(GHz noise)
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 120~1200
  • DCR Max. Ω : 0.25~1.5
  • Rated Current Max. A : 0.05~0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CGMCB160808B
  • Feature :

    Multilayer
    Signal

  • Series : CGMCB(GHz noise)
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 120~1000
  • DCR Max. Ω : 0.25~1.8
  • Rated Current Max. A : 0.05~0.3
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CGMCB160808H
  • Feature :

    Multilayer
    Signal

  • Series : CGMCB(GHz noise)
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 120~600
  • DCR Max. Ω : 0.5~1.2
  • Rated Current Max. A : 0.05~0.2
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CGMCB160808K
  • Feature :

    Multilayer
    Signal

  • Series : CGMCB(GHz noise)
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • Impedance Typ. Ω : 120~1000
  • DCR Max. Ω : 0.3~1
  • Rated Current Max. A : 0.1~0.3
  • Inquiry sms

Chip Bead for power line


Catalog

Automotive
Grade

Features

Series

Part Number

LxW
mm

Height Max.
mm

mpedance Typ.
Ω

DCR Max.
Ω

Rated Current Max.
A

Inquiry
picture_as_pdf Multilayer
Power
 PMCB
(High Current) 		CME-PMCB160808A 1.6x0.8 0.95 26 0.007 6 sms
picture_as_pdf Multilayer
Power
 PMCB
(High Current) 		CME-PMCB201209H 2.0x1.25 1.05 7~11 0.008 6 sms
picture_as_pdf Multilayer
Power
 PMCB
(High Current) 		CME-PMCB201209A 2.0x1.25 1.05 17~120 0.008~0.025 6 sms
picture_as_pdf Multilayer
Power
 PMCB
(High Current) 		CME-PMCB321611A 3.2x1.6 1.3 31~120 0.006~0.025 4~6 sms
picture_as_pdf Multilayer
Power
 PMCB
(High Current) 		CME-PMCB322513A 3.2x2.5 1.5 52~60 0.008 6 sms
picture_as_pdf Multilayer
Power
 PMCB
(High Current) 		CME-PMCB321616A 3.2x1.6 1.6 1000 0.075 2 sms
picture_as_pdf Multilayer
Power
 PMCB
(High Current) 		CME-PMCB453215A 4.5x3.2 1.7 60~150 0.008~0.02 6 sms
picture_as_pdf Multilayer
Power
 PMCB
(High Current) 		CME-PMCB453215B 4.5x3.2 1.7 70 0.008 6 sms
picture_as_pdf Multilayer
Power
 PMCB
(High Current) 		CME-PMCB453215K 4.5x3.2 1.7 880 0.025 4 sms
picture_as_pdf Multilayer
Power
 PMCB
(High Current) 		CME-PMCB451616A 4.5x1.6 1.8 60 0.008 6 sms
picture_as_pdf directions_car Multilayer
Power
 CPMCB
(High Current) 		CME-CPMCB160808A 1.6x0.8 0.95 26 0.007 6 sms
picture_as_pdf directions_car Multilayer
Power
 CPMCB
(High Current) 		CME-CPMCB201209H 2.0x1.25 1.05 7~11 0.008 6 sms
picture_as_pdf directions_car Multilayer
Power
 CPMCB
(High Current) 		CME-CPMCB201209A 2.0x1.25 1.05 17~120 0.008~0.025 6 sms
picture_as_pdf directions_car Multilayer
Power
 CPMCB
(High Current) 		CME-CPMCB321611A 3.2x1.6 1.3 31~120 0.006~0.025 4~6 sms
picture_as_pdf directions_car Multilayer
Power
 CPMCB
(High Current) 		CME-CPMCB322513A 3.2x2.5 1.5 52~60 0.008 6 sms
picture_as_pdf directions_car Multilayer
Power
 CPMCB
(High Current) 		CME-CPMCB321616A 3.2x1.6 1.6 1000 0.075 2 sms
picture_as_pdf directions_car Multilayer
Power
 CPMCB
(High Current) 		CME-CPMCB453215A 4.5x3.2 1.7 60~150 0.008~0.02 6 sms
picture_as_pdf directions_car Multilayer
Power
 CPMCB
(High Current) 		CME-CPMCB453215B 4.5x3.2 1.7 70 0.008 6 sms
picture_as_pdf directions_car Multilayer
Power
 CPMCB
(High Current) 		CME-CPMCB453215K 4.5x3.2 1.7 880 0.025 4 sms
picture_as_pdf directions_car Multilayer
Power
 CPMCB
(High Current) 		CME-CPMCB451616A 4.5x1.6 1.8 60 0.008 6 sms
picture_as_pdf
  • Part Number
    CME-PMCB160808A
  • Feature :

    Multilayer
    Power

  • Series : PMCB(High Current)
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • mpedance Typ. Ω : 26
  • DCR Max. Ω : 0.007
  • Rated Current Max. A : 6
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-PMCB201209H
  • Feature :

    Multilayer
    Power

  • Series : PMCB(High Current)
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • mpedance Typ. Ω : 7~11
  • DCR Max. Ω : 0.008
  • Rated Current Max. A : 6
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-PMCB201209A
  • Feature :

    Multilayer
    Power

  • Series : PMCB(High Current)
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • mpedance Typ. Ω : 17~120
  • DCR Max. Ω : 0.008~0.025
  • Rated Current Max. A : 6
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-PMCB321611A
  • Feature :

    Multilayer
    Power

  • Series : PMCB(High Current)
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.3
  • mpedance Typ. Ω : 31~120
  • DCR Max. Ω : 0.006~0.025
  • Rated Current Max. A : 4~6
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-PMCB322513A
  • Feature :

    Multilayer
    Power

  • Series : PMCB(High Current)
  • LxW mm : 3.2x2.5
  • Height Max. mm : 1.5
  • mpedance Typ. Ω : 52~60
  • DCR Max. Ω : 0.008
  • Rated Current Max. A : 6
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-PMCB321616A
  • Feature :

    Multilayer
    Power

  • Series : PMCB(High Current)
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.6
  • mpedance Typ. Ω : 1000
  • DCR Max. Ω : 0.075
  • Rated Current Max. A : 2
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-PMCB453215A
  • Feature :

    Multilayer
    Power

  • Series : PMCB(High Current)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 1.7
  • mpedance Typ. Ω : 60~150
  • DCR Max. Ω : 0.008~0.02
  • Rated Current Max. A : 6
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-PMCB453215B
  • Feature :

    Multilayer
    Power

  • Series : PMCB(High Current)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 1.7
  • mpedance Typ. Ω : 70
  • DCR Max. Ω : 0.008
  • Rated Current Max. A : 6
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-PMCB453215K
  • Feature :

    Multilayer
    Power

  • Series : PMCB(High Current)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 1.7
  • mpedance Typ. Ω : 880
  • DCR Max. Ω : 0.025
  • Rated Current Max. A : 4
  • Inquiry sms
picture_as_pdf
  • Part Number
    CME-PMCB451616A
  • Feature :

    Multilayer
    Power

  • Series : PMCB(High Current)
  • LxW mm : 4.5x1.6
  • Height Max. mm : 1.8
  • mpedance Typ. Ω : 60
  • DCR Max. Ω : 0.008
  • Rated Current Max. A : 6
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPMCB160808A
  • Feature :

    Multilayer
    Power

  • Series : CPMCB(High Current)
  • LxW mm : 1.6x0.8
  • Height Max. mm : 0.95
  • mpedance Typ. Ω : 26
  • DCR Max. Ω : 0.007
  • Rated Current Max. A : 6
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPMCB201209H
  • Feature :

    Multilayer
    Power

  • Series : CPMCB(High Current)
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • mpedance Typ. Ω : 7~11
  • DCR Max. Ω : 0.008
  • Rated Current Max. A : 6
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPMCB201209A
  • Feature :

    Multilayer
    Power

  • Series : CPMCB(High Current)
  • LxW mm : 2.0x1.25
  • Height Max. mm : 1.05
  • mpedance Typ. Ω : 17~120
  • DCR Max. Ω : 0.008~0.025
  • Rated Current Max. A : 6
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPMCB321611A
  • Feature :

    Multilayer
    Power

  • Series : CPMCB(High Current)
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.3
  • mpedance Typ. Ω : 31~120
  • DCR Max. Ω : 0.006~0.025
  • Rated Current Max. A : 4~6
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPMCB322513A
  • Feature :

    Multilayer
    Power

  • Series : CPMCB(High Current)
  • LxW mm : 3.2x2.5
  • Height Max. mm : 1.5
  • mpedance Typ. Ω : 52~60
  • DCR Max. Ω : 0.008
  • Rated Current Max. A : 6
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPMCB321616A
  • Feature :

    Multilayer
    Power

  • Series : CPMCB(High Current)
  • LxW mm : 3.2x1.6
  • Height Max. mm : 1.6
  • mpedance Typ. Ω : 1000
  • DCR Max. Ω : 0.075
  • Rated Current Max. A : 2
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPMCB453215A
  • Feature :

    Multilayer
    Power

  • Series : CPMCB(High Current)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 1.7
  • mpedance Typ. Ω : 60~150
  • DCR Max. Ω : 0.008~0.02
  • Rated Current Max. A : 6
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPMCB453215B
  • Feature :

    Multilayer
    Power

  • Series : CPMCB(High Current)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 1.7
  • mpedance Typ. Ω : 70
  • DCR Max. Ω : 0.008
  • Rated Current Max. A : 6
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPMCB453215K
  • Feature :

    Multilayer
    Power

  • Series : CPMCB(High Current)
  • LxW mm : 4.5x3.2
  • Height Max. mm : 1.7
  • mpedance Typ. Ω : 880
  • DCR Max. Ω : 0.025
  • Rated Current Max. A : 4
  • Inquiry sms
directions_car picture_as_pdf
  • Part Number
    CME-CPMCB451616A
  • Feature :

    Multilayer
    Power

  • Series : CPMCB(High Current)
  • LxW mm : 4.5x1.6
  • Height Max. mm : 1.8
  • mpedance Typ. Ω : 60
  • DCR Max. Ω : 0.008
  • Rated Current Max. A : 6
  • Inquiry sms

INQUIRY

※ 이 제품에 대해 궁금하신 사항을 남겨 주시면 입력하신 이메일 주소로 빠른 시일 내로 답변 드리겠습니다.
남겨주신 내용은 coilmaster@coilmaster.com 으로 전송됩니다.

이름*

이메일*

회사명

전화번호

제목*

내용

개인정보 처리방침

(주)코일마스터는 개인정보 보호법 제30조에 따라 정보주체(고객)의 개인정보를 보호하고 이와 관련한 고충을 신속하고 원활하게 처리할 수 있도록 하기 위하여 다음과 같이 개인정보 처리지침을 수립․공개합니다.

1. 개인정보의 처리목적 (주)코일마스터는 다음의 목적을 위하여 개인정보를 처리하고 있으며, 다음의 목적 이외의 용도로는 이용하지 않습니다.

- 고객에 대한 서비스 제공에 따른 본인 식별․인증,관리, 물품 또는 서비스 공급에 따른 금액 결제, 물품 또는 서비스의 공급․배송 등

2. 개인정보의 처리 및 보유기간

① (주)코일마스터는 정보주체로부터 개인정보를 수집할 때 동의받은 개인정보 보유․이용기간 또는 법령에 따른 개인정보 보유․이용기간 내에서 개인정보를 처리․보유합니다.

② 구체적인 개인정보 처리 및 보유 기간은 다음과 같습니다.

- 고객 문의 및 관리 : 서비스 이용계약 또는 회원가입 해지시까지, 다만 채권․채무관계 잔존시에는 해당 채권․채무관계 정산시까지

- 전자상거래에서의 계약․청약철회, 대금결제, 재화 등 공급기록 : 5년

3. 개인정보의 제3자 제공 (주)코일마스터는 정보주체의 별도 동의, 법률의 특별한 규정 등 개인정보 보호법 제17조에 해당하는 경우 외에는 개인정보를 제3자에게 제공하지 않습니다.

4. 개인정보처리의 위탁 ① (주)코일마스터는 업무처리를 위하여 개인정보 처리업무를 외부에 위탁하지 않습니다.

5. 정보주체와 법정대리인의 권리․의무 및 행사방법 정보주체는 (주)코일마스터에 대해 언제든지 다음 각 호의 개인정보 보호 관련 권리를 행사할 수 있습니다.

1. 개인정보 열람요구

2. 오류 등이 있을 경우 정정 요구

3. 삭제요구

4. 처리정지 요구

6. 처리하는 개인정보 항목 (주)코일마스터는 다음의 개인정보 항목을 처리하고 있습니다.

- 성명, 주소, 전화번호, 휴대전화번호, 이메일주소,

7. 개인정보의 파기 ① (주)코일마스터는 개인정보 보유기간의 경과, 처리목적 달성 등 개인정보가 불필요하게 되었을 때에는 지체없이 해당 개인정보를 파기합니다.

② (주)코일마스터는 다음의 방법으로 개인정보를 파기합니다.

- 전자적 파일 : 파일 삭제, 디스크 포맷

- 종이 문서 : 분쇄하거나 소각

8. 개인정보의 안전성 확보조치 (주)코일마스터는 개인정보의 안전성 확보를 위해 다음과 같은 조치를 취하고 있습니다.

- 관리적 조치 : 내부관리계획 수립․시행, 직원․종업원 등에 대한 정기적 교육

- 기술적 조치 : 개인정보처리시스템(또는 개인정보가 저장된 컴퓨터)의 비밀번호 설정 등 접근권한 관리, 백신소프트웨어 등 보안프로그램 설치, 개인정보가 저장된 파일의 암호화

- 물리적 조치 : 개인정보가 저장․보관된 장소의 시건, 출입통제 등

9. 개인정보 자동 수집 장치의 설치∙운영 및 거부에 관한 사항

① (주)코일마스터는 이용자에게 개별적인 맞춤서비스를 제공하기 위해 이용정보를 저장하고 수시로 불러오는 ‘쿠키(cookie)’를 사용합니다.

② 쿠키는 웹사이트를 운영하는데 이용되는 서버(http)가 이용자의 컴퓨터 브라우저에게 보내는 소량의 정보이며 이용자의 PC 컴퓨터내의 하드디스크에 저장되기도 합니다.

가. 쿠키의 사용목적: 이용자가 방문한 각 서비스와 웹 사이트들에 대한 방문 및 이용형태, 인기 검색어, 보안접속 여부, 등을 파악하여 이용자에게 최적화된 정보 제공을 위해 사용됩니다.

나. 쿠키의 설치∙운영 및 거부 : 웹브라우저 상단의 도구>인터넷 옵션>개인정보 메뉴의 옵션 설정을 통해 쿠키 저장을 거부 할 수 있습니다.

다. 쿠키 저장을 거부할 경우 맞춤형 서비스 이용에 어려움이 발생할 수 있습니다.

10. 개인정보 보호책임자 (주)코일마스터는 개인정보 처리에 관한 업무를 총괄해서 책임지고, 개인정보 처리와 관련한 정보주체의 불만처리 및 피해구제를 처리하기 위하여 아래와 같이 개인정보 보호책임자를 지정하고 있습니다.

▶ 개인정보 보호책임자

성 명 : 차상엽

직 책 : 대표이사

연락처 : 031-904-1444

E-mail : system@coilmaster.com

팩 스 : 063-263-1445

11. 개인정보 처리방침 변경

이 개인정보 처리방침은 2016. 12. 1부터 적용됩니다.

문의 등록이 완료되었습니다.

입력하신 이메일 주소로
빠른 시일내에 답변 드리겠습니다.

닫기
고객문의 제품검색 TOP
