Power Inductors

Catalog	Automotive Grade	Features	Series	Part Number	LxW mm	Height Max. mm	Inductance μH	DCR Max. mΩ	Isat Typ. A	Itemp Typ. A	Inquiry

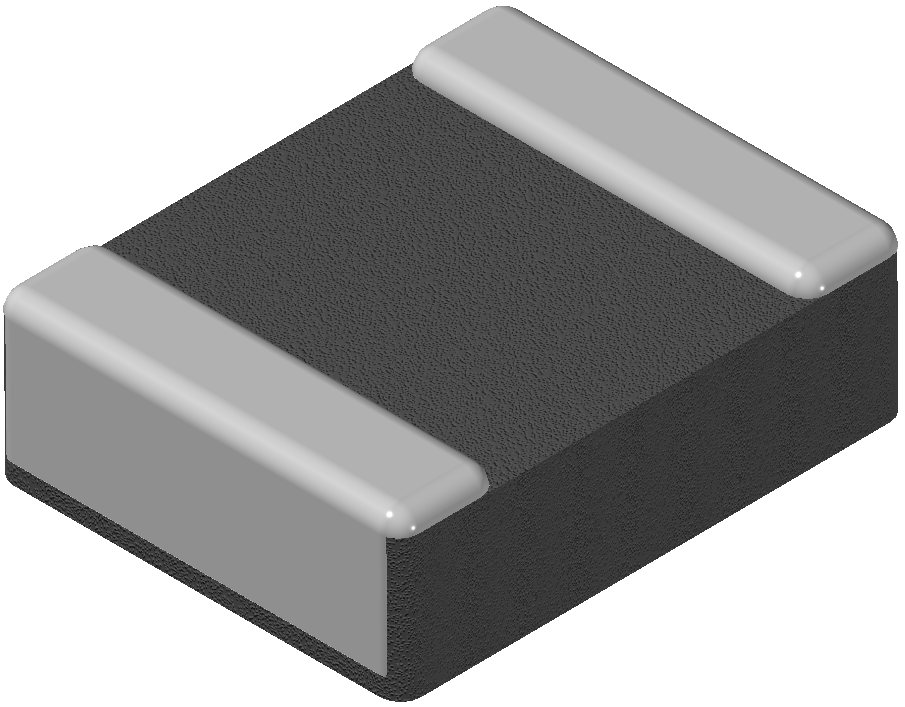

picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF201208BC NEW	2.0x1.2	0.8	0.24~2.2	20~137	2.5~7.9	2.1~6.1	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF201208BC-NC NEW	2.0x1.2	0.8	2.2	260	2.5	1.6	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF201210BC-NC NEW	2.0x1.2	1	2.2	212	2.6	1.8	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF201608BC NEW	2.0x1.6	0.8	0.22~1.5	17~120	2.3~7	2.1~5.8	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF201610BC NEW	2.0x1.6	1	0.24~10	19~700	0.9~7.2	0.7~5.7	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF201612BC NEW	2.0x1.6	1.2	0.15~6.8	15~300	1.2~9.8	1~9	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF252010BC NEW	2.5x2.0	1	0.47~4.7	20~130	1.9~6.8	2.3~5.6	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF252012BC NEW	2.5x2.0	1.2	0.1~10	7~400	1.6~12	1.2~12	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF322512BS NEW	3.2x2.5	1.2	0.68~4.7	23~135	2.9~8.1	2.3~7.3	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMPF	CMI-MMPF322530QL NEW	3.2x2.5	3	3.3~4.7	60~78	2.9~3.6	3.3~3.5	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF322533V NEW	3.2x2.5	3.3	2.2~3.3	48~57.6	8~8.5	5.5~6.5	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF4012BS NEW	4.0x4.0	1.2	1~4.7	30~95	3.5~7	2.7~5	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF4020H2 NEW	4.0x4.0	2	0.47~1.2	6.5~14	9.8~15	8.3~13.5	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF7012H2 NEW	7.0x6.0	1.2	0.15~1.5	6~42	9~25	8~16	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF7015H2 NEW	7.0x6.0	1.5	0.33~0.68	6~13.8	15.5~24	12~16	sms
picture_as_pdf		Shield Metal Flat Wire Plating	MMPF	CMI-MMPF7030H2 NEW	7.0x6.0	3	0.68~3.3	4.2~18.6	13~28	11~20	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP201208BS	2.0x1.2	0.8	0.24~2.2	26.4~156	2.2~6	1.8~4.8	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP201210BS	2.0x1.2	1	0.24~2.2	25~156	2.4~6.1	1.8~4.9	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP201608BS	2.0x1.6	0.8	0.47~2.2	42~144	2.5~4.5	1.7~4	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP201610BS	2.0x1.6	1	0.47~2.2	40~132	2.7~5.8	2~4.2	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP252010BS	2.5x2.0	1	0.22~10	20~480	1.3~9.2	1~6.3	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP252012BS	2.5x2.0	1.2	0.47~10	36~432	1.4~6.7	1.1~4.4	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP322512BS	3.2x2.5	1.2	0.68~10	37.2~390	1.6~7.2	1.1~4.2	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP3020BS	3.0x3.0	2	2.2~4.7	60~120	2.8~4.2	2~3.2	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP4010BS	4.0x4.0	1	100	336	2	1.5	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP4020HL	4.0x4.0	2	0.33~15	8.4~288	3~17.5	2~10	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP4020QL	4.0x4.0	2	0.47~1	6.6~12	10~11.5	8.5~10	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP4020HL-A	4.0x4.0	2	1~10	39~228	3.8~11	1.9~5.5	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP4020HL-B	4.0x4.0	2	1~10	20.4~150	3.3~10.5	2.2~8	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP4030HL	4.0x4.0	3	0.47~22	10~252	3.3~17	2~9.5	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP4030H1-B	4.0x4.0	3	3.3~4.7	42~54	5.5~8.5	4.5~5.5	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP5015HL-B	5.0x5.0	1.5	0.12~10	3.7~159	3.3~30.5	2.2~18.9	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP5018HL	5.0x5.0	1.8	0.47	8.5	16.8	11.6	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP5020HL	5.0x5.0	2	1~6.8	16.8~108	5.2~12	3.9~8.5	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP5030HL-A	5.0x5.0	3	0.47~22	6.6~204	4.5~22	2.3~14.5	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP6020HL	6.0x6.0	2	1~6.8	15~84	5.2~12.5	4.2~8.2	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP7018HL	7.0x7.0	1.8	0.47~10	9.6~150	5~27	3.3~10.5	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP7024HL-A	7.0x7.0	2.4	2.2~15	17.4~162	5.2~12.5	3.3~9	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP7030HL	7.0x7.0	3	0.47~47	4.8~312	3.3~33	2.2~18	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP7030HL-A	7.0x7.0	3	1~22	9~168	5.2~21	3~13	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP7030HL-B	7.0x7.0	3	1~22	7.2~120	4.5~18.5	3.5~15	sms
picture_as_pdf		Shield Metal Round Wire Plating	MMP	CMI-MMP7030H1-B	7.0x7.0	3	3.3~6.8	21.6~36	9.5~14	6.3~9	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP4018MH	4.0x4.0	1.8	4.7	126	4	2.8	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP4020MH	4.0x4.0	2	1~10	36~216	2.8~8	2.1~5.1	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP4020HL	4.0x4.0	2	0.1~15	3.6~300	2.8~30	1.9~16.5	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP4020LH	4.0x4.0	2	0.22	6.4	28	12	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP4030HL	4.0x4.0	3	0.1~22	5.4~264	2.6~32	2.2~15	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP4040HL	4.0x4.0	4	2.2~15	25.2~228	2.6~7.5	2.6~7	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP5015HL	5.0x5.0	1.5	0.15~2.2	4.5~54	7.3~26	4.5~16	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP5018HL	5.0x5.0	1.8	0.47	9.6	16	10.5	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP5020HL	5.0x5.0	2	0.1~6.8	3~132	4.5~35	2.9~25	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP5030HL	5.0x5.0	3	0.33~22	4.8~220	2.8~25	2.2~15	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP5040HL	5.0x5.0	4	3.3~22	32.4~180	3.1~10	2.7~8	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP6012HL	6.0x6.0	1.2	0.1~10	5.4~312	3~32	1.9~14	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP6015HL	6.0x6.0	1.5	1~10	30~228	3.1~10.5	2.2~6.2	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP6020LH	6.0x6.0	2	1~10	18.6~150	4.5~16	2.8~7.5	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP6030LH	6.0x6.0	3	2.2~3.3	21~30	10.5~14	7.5~8	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP6015HL-N	6.0x6.0	1.5	0.82~10	14.4~228	4~12	2.4~9.5	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP6018LH-N	6.0x6.0	1.8	0.15~10	3.36~192	5~45	2.5~18	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP6024LH-N	6.0x6.0	2.4	0.1~10	2.4~96	6~65	3.7~23.5	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP6030LH-N	6.0x6.0	3	0.1~33	1.8~240	3.7~67	2.7~24	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP6030HL-N	6.0x6.0	3	1~47	7.5~360	2~18	1.8~14	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP6040HL-N	6.0x6.0	4	2.2~33	14.4~156	3.3~13.5	3.3~8.5	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP6050LH-N	6.0x6.0	5	0.68~0.82	4.8~7.2	26~27	14.5~14.7	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP6050HL-N	6.0x6.0	5	0.68~68	4.8~312	2.5~27	2.5~14.7	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP8040HL	8.0x8.0	5	0.22	1.2	60	55	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP8050HL	8.0x8.0	5	0.5~47	5.4~204	4.5~32	3.3~19.5	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP10030HL	10.0x10.0	3	0.15~22	0.9~108	5.5~65	5.5~36	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP10030LH	10.0x10.0	3	0.68~10	4.8~72	10~42	4.8~21	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP10040LL	10.0x10.0	4	0.15~56	0.6~240	4.5~80	3.8~34	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP10040LH	10.0x10.0	4	2.2~22	10.8~66	8.5~28	5.5~14	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP10055LH	10.0x10.0	5.5	1~100	3.3~252	4.2~50	4~24	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP10055HL	10.0x10.0	5.5	1	2.9	33	28	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP10055LL	10.0x10.0	5.5	22	54	8.5	6.3	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP10075LL	10.0x10.0	7.5	4.7~22	10.2~50.4	9~22	8~20	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP12055LH	12.0x12.0	5.5	0.68~22	1.8~48	10~60	8.5~30	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP12070LH	12.0x12.0	7	0.47~33	1.4~58	11~70	8~37.5	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP12070LL	12.0x12.0	7	3.3~5.6	6~10.2	22.5~32	16.5~23	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP12090LH	12.0x12.0	9	1~47	2.5~84	8~50	7.5~38	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP12100LL	12.0x12.0	10	2.2	2.8	34	52	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP13055LH	13.0x13.0	5.5	0.68~15	1.8~36	13~60	9.5~32	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP13055LL	13.0x13.0	5.5	10~33	24~54	8.3~13.5	6.5~10	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP13060LL	13.0x13.0	6	3.3	6.5	36	25	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP13065LL	13.0x13.0	6.5	2.8~8.2	3.7~14	17~35	14.5~26	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP13070LH	13.0x13.0	7	0.47~47	1.4~78	10~70	7~37.5	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP13070LL	13.0x13.0	7	6.8~56	10.8~102	7~24	6~22	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP13090LH	13.0x13.0	9	1~47	1.8~73.2	8.5~55	7.5~38	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP13090LL	13.0x13.0	9	1~3.3	1~4.8	30~40	29~34	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP15080SH	15.0x15.0	8.5	22	45			sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP17040HC	17.0x17.0	4	4.7	10	18	23.5	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP17040HL	17.0x17.0	4	10	27.6	18	11	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP17070QL	17.0x17.0	7	0.33	0.6	70	75.5	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP17070HL	17.0x17.0	7	0.47~100	0.9~168	7.5~85	6.5~55	sms
picture_as_pdf		Shield Metal Round Wire Pin	MMPP	CMI-MMPP17075HL	17.0x17.0	7.5	10	11.4	23	22	sms
picture_as_pdf		Shield Metal Round Wire Wire pin	MMPP-WP	CMI-MMPP6030HL-N-WP	6.0x6.0	3	0.22	2	50	35	sms
picture_as_pdf		Shield Metal Round Wire Wire pin	MMPP-WP	CMI-MMPP10075LL-WP	10.0x10.0	7.5	0.5~1	1.1~1.9	32~54	22~27	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF4020QL-SB	4.0x4.0	2.1	0.11~2.2	3.6~36	7.2~33	5~25	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF4030QL-SB	4.0x4.0	3.1	1.5~4.7	19.8~43.2	5.8~11.5	4.6~7.2	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF4040QL-SB	4.0x4.0	4.1	1.5~6.8	13.2~54	4.8~11	4.6~12	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF5030QL-SB	5.0x5.0	3.1	0.15~3.3	2.4~24	9.5~40	5.7~20	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF5030H2-SB	5.0x5.0	3.1	1	7.8	15.5	10.5	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF5050QL-SB	5.0x5.0	5.1	2.2~22	9.6~108	4.3~11	3.4~13	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF6030QL-SB	6.0x6.0	3.1	0.22~3.3	1.8~21	11.5~46	6.8~32	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF6060QL-SB	6.0x6.0	6.1	0.68~22	3.36~60	5.6~35	5~21	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF7030H2-SB	7.0x7.0	3.1	0.33~2.2	1.8~15.6	15.5~50	12~30	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF7070QL-SB	7.0x7.0	7	3.3	10.56	19.5	15.5	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF10060QL-SB	10.0x10.0	6	0.68~4.7	1.4~8.4	22~52	17~36	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF10100QL-SB	10.0x10.0	10	0.22~15	0.5~18.6	13~99	14.5~55.5	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF13022H2-SB	13.0x13.0	2.2	1.5~2.2	9.6~14.4	18~25	16~20	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF13030H2-SB	13.0x13.0	3.1	0.47~2.2	1.3~6.6	24~52	17.5~44	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF15080QL-SB	15.0x15.0	8	0.82~8.2	0.78~6.6	31.5~86	27~60.5	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	MMPF-SB	CMI-MMPF15100QL-SB	15.0x15.0	11	4.7~33	3~18.6	17~50	22~35	sms

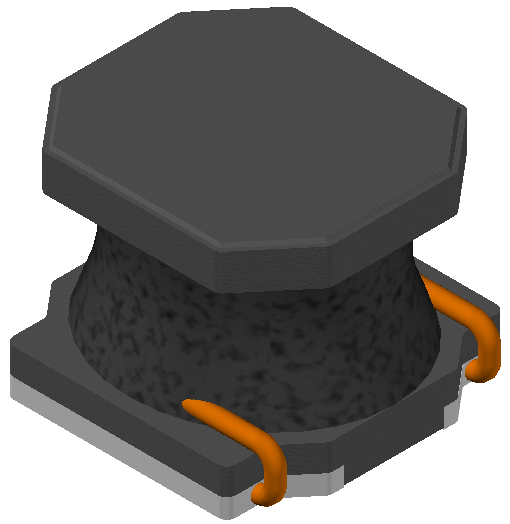

picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP201608NH	2.0x1.6	0.8	0.47~4.7	80.4~590.4	0.64~2	0.7~2.2	sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP201610NH	2.0x1.6	1	0.47~4.7	54~540	0.89~3.1	0.76~2.7	sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP201612NH	2.0x1.6	1.2	0.47~4.7	54.6~442			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP252010NH	2.5x2.0	1	0.5~22	58.5~1950			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP252012NH	2.5x2.0	1.2	0.47~10	40.3~432			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP3010NH	3.0x3.0	1	1~10	71.5~598			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP3012NH	3.0x3.0	1.2	0.5~10	42.9~420			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP3015NH	3.0x3.0	1.5	1~10	49.4~354			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP3818NH	4.0x4.0	1.8	10	93			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP4010NH	4.0x4.0	1	0.5~22	37.7~974.4			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP4012NH	4.0x4.0	1.2	1~33	58.5~1256			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP4014NH	4.0x4.0	1.4	0.5~22	28.6~618			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP4018NH	4.0x4.0	1.8	0.5~33	24.7~615.6			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP5010NH	5.0x5.0	1	1~22	74.1~792			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP5012NH	5.0x5.0	1.2	1~22	68.9~787.2			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP5018NH	5.0x5.0	1.8	1~22	32.5~414			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP5020NH	5.0x5.0	2	1~33	52~560.4			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP5025NH	5.0x5.0	2.5	2.2	42.9	6	4.6	sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP5030NH	5.0x5.0	3	1~22	28.6~228			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP6010NH	6.0x6.0	1	1~22	17.5~678.2			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP6012NH	6.0x6.0	1.2	1.5~15	83.5~585			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP6015NH	6.0x6.0	1.5	0.5~22	20.8~360			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP6018NH	6.0x6.0	1.8	1~22	36.4~396			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP6028NH	6.0x6.0	2.8	6.8~10	72.8~87.6			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DOP	CMI-DOP6040NH	6.0x6.0	4	22	96			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP4012NH	4.0x4.0	1.2	1~22	1.02~702			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP4018NH	4.0x4.0	1.8	1~220	30~4560			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP4020NH	4.0x4.0	2	1~100	30~1740			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP4030NH	4.0x4.0	3	1~220	1.032~540			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP5010NH	5.0x5.0	1	1~22	84~720			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP5012NH	5.0x5.0	1.2	1~22	66~1020			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP5014NH	5.0x5.0	1.4	0.47~22	30~540			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP5020NH	5.0x5.0	2	0.47~22	14.4~270			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP5030NH	5.0x5.0	3	0.47~22	12~216			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP5040NH	5.0x5.0	4	1~47	20.4~324			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP6010NH	6.0x6.0	1	1.5~22	108~696			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP6012NH	6.0x6.0	1.2	1~100	66~2004			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP6020NH	6.0x6.0	2	1~22	24~252			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP6028NH	6.0x6.0	2.8	1~100	1.2~600			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP6040NH	6.0x6.0	4	1~33	9.6~162			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP6045NH	6.0x6.0	4.5	0.47~82	7.68~462			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP7032NH	7.0x7.0	3.2	1~220	20.4~1426.8			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP7050NH-C	7.0x7.0	5	1.5~220	16.8~792	1~10.6	1.2~9.1	sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP8040NH	8.0x8.0	4	1~270	9.6~900			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Pin	DP	CMI-DP8040NH-A	8.0x8.0	4	1~330	12~1200			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS201610NH	2.0x1.6	1	0.24~10	40~1000	0.7~4.1	0.55~3.1	sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS252010NH	2.5x2.0	1	1~22	120.9~2206.8			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS252012NH	2.5x2.0	1.2	0.47~22	79.3~2371.2			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS3010NH	3.0x3.0	1	1~56	84.5~2784			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS3012NH	3.0x3.0	1.2	0.82~68	39~2004			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS3015NH	3.0x3.0	1.5	1~100	50.7~3600			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS4012NH	4.0x4.0	1.2	0.82~100	65~2652			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS4018NH	4.0x4.0	1.8	0.5~330	27.3~7800			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS4020NH	4.0x4.0	2	0.47~100	23.4~1860			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS4030NH	4.0x4.0	3	0.47~470	14.3~6600			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS5020NH	5.0x5.0	2.1	1~100	26~1320			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS5040NH	5.0x5.0	4	1~2200	15.6~15600			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS6020NH	6.0x6.0	2	0.68~47	22.1~516			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS6028NH	6.0x6.0	2.8	1~1000	15.6~7540			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS6045NH	6.0x6.0	4.7	1~1500	14.3~7800			sms
picture_as_pdf		Semi-Shield Ferrite Round Wire Plating	DSS	CMI-DSS8040NH	8.0x8.0	4.2	0.82~1000	10.4~3360			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP5018NH	5.0x5.0	1.8	1~6.8	39~167.7			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP5020NH	5.0x5.0	2	1~100	37.7~1857.6			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP5030NH	5.0x5.0	3	1~100	27.3~984			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP5040NH	5.0x5.0	4	1~8.2	27.6~72	2.6~6.7	2.4~5.4	sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP6028NH	6.0x6.0	2.8	1~150	18~1032			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP6028NH-A	6.0x6.0	2.8	1~220	14.4~1560			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP6028NH-B	6.0x6.0	2.8	1~220	14.4~1404			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP6045NH	6.0x6.0	4.5	0.82~150	16.3~600	0.45~8.8	0.58~8.4	sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP7032NH-A	7.0x7.0	3.2	1~220	22.1~1426			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP7032NH-B	7.0x7.0	3.2	1~220	16.9~1009.2			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP7043NH	7.0x7.0	4.3	1.5~3.3	19.2~28.8			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP7050NH-BC	7.0x7.0	5	4.7~100	26.4~396			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP7055NH-A	7.0x7.0	5.5	1~220	23.4~1116			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP7055NH-B	7.0x7.0	5.5	1~220	19.5~741.6			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP7045NH	7.0x7.0	4.5	1~1000	17~3630	0.3~9.3	0.44~8.6	sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP7045NH-A	7.0x7.0	4.5	1~220	22.8~1272	0	0	sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP7045NH-B	7.0x7.0	4.5	1~220	20.4~950.4			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP8045NH-A	8.0x8.0	4.5	1~220	20.8~1149.6			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP8045NH-B	8.0x8.0	4.5	1~220	19.5~886.8			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP8050NH-A	8.0x8.0	5	15~22	84~126			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP10040NH	10.0x10.0	4	15~200	57.6~678			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP10048NH	10.0x10.0	4.8	1~1000	14.4~3024	0.6~14.5	1~11	sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP12050NH	12.0x12.0	5	8.2~330	33.6~1176			sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP12060NH	12.0x12.0	6	1.5~560	12.6~990	1.08~16.4	1.2~12.5	sms
picture_as_pdf		Shield Ferrite Round Wire Pin	SSP	CMI-SSP12080NH	12.0x12.0	8	1~1000	10.1~1620	1~20	1.3~17	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF6030MH	7.0x7.0	3.3	0.1~2.2	0.9~12.4	9~52	7.8~23	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF6040MH	7.0x7.0	4	0.24~6.5	1.2~36.2	6.5~30	4.6~21	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF6050MH	7.0x7.0	5	0.25~13	1~44.5	5~35	3.1~21	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF10040MH	10.0x10.0	4.3	0.18~6.8	0.7~23.6	9.5~60	5.6~30	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF10030MH	10.0x10.0	3	0.2~2.5	0.25~13.3	12~50	9~22	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF10050MH	10.0x10.0	5	0.18~18	0.55~39	6.2~55	5~32	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF10060MH	10.0x10.0	5	0.38~27	0.77~48.5	5.8~54	1~25	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF12035MH	13.0x13.0	3.5	0.25~5.6	0.9~21.9	11~50	6.8~147	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF12050MH	13.0x13.0	5	0.19~22	0.55~39.6	6.5~70	4.7~32	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF12065MH	13.0x13.0	6.5	0.2~47	0.37~62.7	5~70	4~36	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF12075MH	13.0x13.0	7.6	0.6~56	0.55~69	5.7~60	4~36	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF16070MH	16.0x16.0	7	1~22	1.05~23.5	10.5~45.5	8.5~33	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF18090MH	18.0x18.0	9.2	0.82~56	0.62~41.2	8.5~70	6.5~41.5	sms
picture_as_pdf		Shield Metal Flat Wire Wire pin	SSMF	CMI-SSMF220120MH	20mm over	12.4	3.3~100	1.2~40.8	9~50	6.1~32	sms
picture_as_pdf		Shield Ferrite Flat Wire Wire pin	PQ	CMI-PQ1590	15.0x15.0	10.16	0.3~1.5	0.72~1.15			sms
picture_as_pdf		Shield Ferrite Flat Wire Wire pin	PQ	CMI-PQ2009	19.0x19.0	8.64	0.3~2	0.74			sms
picture_as_pdf		Shield Ferrite Flat Wire Wire pin	PQ	CMI-PQ2010	19.0x19.0	9.4	0.3~2	1			sms
picture_as_pdf		Shield Ferrite Flat Wire Wire pin	PQ	CMI-PQ2011	19.0x19.0	10.67	0.5~2	1.34			sms
picture_as_pdf		Shield Ferrite Flat Wire Wire pin	PQ	CMI-PQ2012	19.0x19.0	11.94	0.6~2	1.6			sms
picture_as_pdf		Shield Ferrite Flat Wire Wire pin	PQ	CMI-PQ2013	19.0x19.0	12.95	0.68~4.7	1.82			sms
picture_as_pdf		Shield Ferrite Flat Wire Wire pin	PQ	CMI-PQ2014	19.0x19.0	13.97	0.8~4	2.15			sms
picture_as_pdf		Shield Ferrite Flat Wire Wire pin	PQ	CMI-PQ2915LD	20mm over	15.36	1.5~33	1.65			sms
picture_as_pdf		Shield Ferrite Flat Wire Wire pin	PQ	CMI-PQ2915HC	20mm over	15.36	2.2~33	2.05			sms
picture_as_pdf		Shield Ferrite Flat Wire Wire pin	PQ	CMI-PQ2918HC	20mm over	17.78	3.3~33	2.86			sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF201208BC NEW	2.0x1.2	0.8	0.24~2.2	20~137	2.5~7.9	2.1~6.1	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF201208BC-NC NEW	2.0x1.2	0.8	2.2	260	2.5	1.6	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF201210BC-NC NEW	2.0x1.2	1	2.2	212	2.6	1.8	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF201608BC NEW	2.0x1.6	0.8	0.22~1.5	17~120	2.3~7	2.1~5.8	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF201610BC NEW	2.0x1.6	1	0.24~10	19~700	0.9~7.2	0.7~5.7	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF201612BC NEW	2.0x1.6	1.2	0.15~6.8	15~300	1.2~9.8	1~9	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF252010BC NEW	2.5x2.0	1	0.47~4.7	20~130	1.9~6.8	2.3~5.6	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF252012BC NEW	2.5x2.0	1.2	0.1~10	7~400	1.6~12	1.2~12	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF322512BS NEW	3.2x2.5	1.2	0.68~4.7	23~135	2.9~8.1	2.3~7.3	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF322520BC NEW	3.2x2.5	2	3.3	62.4	5.2	4.22	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF3225BC NEW	3.2x2.5	2.5	0.042	1	39	40	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMPF	CMI-CMMPF322530QL NEW	3.2x2.5	3	3.3~4.7	60~78	2.9~3.6	3.3~3.5	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF322533V NEW	3.2x2.5	3.3	2.2~3.3	48~57.6	8~8.5	5.5~6.5	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF4012BS NEW	4.0x4.0	1.2	1~4.7	30~95	3.5~7	2.7~5	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF4020H2 NEW	4.0x4.0	2	0.47~1.2	6.5~14	9.8~15	8.3~13.5	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF7012H2 NEW	7.0x6.0	1.2	0.15~1.5	6~42	9~25	8~16	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF7015H2 NEW	7.0x6.0	1.5	0.33~0.68	6~13.8	15.5~24	12~16	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Plating	CMMPF	CMI-CMMPF7030H2 NEW	7.0x6.0	3	0.68~3.3	4.2~18.6	13~28	11~20	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP201208BS	2.0x1.2	0.8	0.24~2.2	26.4~156	2.2~6	1.8~4.8	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP201210BS	2.0x1.2	1	0.24~2.2	25~156	2.4~6.1	1.8~4.9	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP201608BS	2.0x1.6	0.8	0.47~2.2	42~144	2.5~4.5	1.7~4	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP201610BS	2.0x1.6	1	0.47~2.2	40~132	2.7~5.8	2~4.2	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP252010BS	2.5x2.0	1	0.22~10	20~480	1.3~9.2	1~6.3	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP252012BS	2.5x2.0	1.2	0.47~10	36~432	1.4~6.7	1.1~4.4	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP322512BS	3.2x2.5	1.2	0.68~10	37.2~390	1.6~7.2	1.1~4.2	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP3020BS	3.0x3.0	2	2.2~4.7	60~120	2.8~4.2	2~3.2	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP4010BS	4.0x4.0	1	100	336	2	1.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP4020HL	4.0x4.0	2	0.33~15	8.4~288	3~17.5	2~10	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP4020QL	4.0x4.0	2	0.47~1	6.6~12	10~11.5	8.5~10	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP4020HL-A	4.0x4.0	2	1~10	39~228	3.8~11	1.9~5.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP4020HL-B	4.0x4.0	2	1~10	20.4~150	3.3~10.5	2.2~8	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP4030HL	4.0x4.0	3	0.47~22	10~252	3.3~17	2~9.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP4030H1-B	4.0x4.0	3	3.3~4.7	42~54	5.5~8.5	4.5~5.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP5015HL-B	5.0x5.0	1.5	0.12~10	3.7~159	3.3~30.5	2.2~18.9	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP5018HL	5.0x5.0	1.8	0.47	9.6	16	10.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP5020HL	5.0x5.0	2	1~6.8	16.8~108	5.2~12	3.9~8.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP5030HL-A	5.0x5.0	3	0.47~22	6.6~204	4.5~22	2.3~14.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP6020HL	6.0x6.0	2	1~6.8	15~84	5.2~12.5	4.2~8.2	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP7018HL	7.0x7.0	1.8	0.47~10	9.6~150	5~27	3.3~10.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP7024HL-A	7.0x7.0	2.4	2.2~15	30~162	5.5~12.5	3.3~8.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP7024HL-B	7.0x7.0	2.4	2.2~15	17.4~108	4.7~11	4.3~9	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP7030HL	7.0x7.0	3	0.47~47	4.8~312	3.3~33	2.2~18	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP7030HL-A	7.0x7.0	3	1~22	9~168	5.2~21	3~13	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP7030HL-B	7.0x7.0	3	1~22	7.2~120	4.5~18.5	3.5~15	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	CMMP	CMI-CMMP7030H1-B	7.0x7.0	3	3.3~6.8	21.6~36	9.5~14	6.3~9	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP4018MH	4.0x4.0	1.8	4.7	126	4	2.8	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP4020MH	4.0x4.0	2	1~10	36~216	2.8~8	2.1~5.1	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP4020HL	4.0x4.0	2	0.1~15	3.6~300	2.8~30	1.9~16.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP4020LH	4.0x4.0	2	0.22	6.4	28	12	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP4030HL	4.0x4.0	3	0.1~22	5.4~264	2.6~32	2.2~15	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP4040HL	4.0x4.0	4	2.2~15	25.2~228	2.6~7.5	2.6~7	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP5015HL	5.0x5.0	1.5	0.15~2.2	4.5~54	7.3~26	4.5~16	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP5018HL	5.0x5.0	1.8	0.47	9.6	16	10.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP5020HL	5.0x5.0	2	0.1~6.8	3~132	4.5~35	2.9~25	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP5030HL	5.0x5.0	3	0.33~22	4.8~220	2.8~25	2.2~15	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP5040HL	5.0x5.0	4	3.3~22	32.4~180	3.1~10	2.7~8	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP6012HL	6.0x6.0	1.2	0.1~10	5.4~312	3~32	1.9~14	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP6015HL	6.0x6.0	1.5	1~10	30~228	3.1~10.5	2.2~6.2	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP6020LH	6.0x6.0	2	1~10	18.6~150	4.5~16	2.8~7.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP6030LH	6.0x6.0	3	2.2~3.3	21~30	10.5~14	7.5~8	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP6015HL-N	6.0x6.0	1.5	0.82~10	14.4~228	4~12	2.4~9.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP6018LH-N	6.0x6.0	1.8	0.15~10	3.36~192	5~45	2.5~18	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP6024LH-N	6.0x6.0	2.4	0.1~10	2.4~96	6~65	3.7~23.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP6030LH-N	6.0x6.0	3	0.1~33	1.8~240	3.7~67	2.7~24	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP6030HL-N	6.0x6.0	3	1~47	7.5~360	2~18	1.8~14	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP6040HL-N	6.0x6.0	4	2.2~33	14.4~156	3.3~13.5	3.3~8.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP6050LH-N	6.0x6.0	5	0.68~0.82	4.8~7.2	26~27	14.5~14.7	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP6050HL-N	6.0x6.0	5	0.68~68	4.6~312	2.5~28.5	2.5~21	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP8040HL	8.0x8.0	5	0.22	1.2	60	55	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP8050HL	8.0x8.0	5	0.5~47	5.4~204	4.5~32	3.3~19.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP10030HL	10.0x10.0	3	0.15~22	0.9~108	5.5~65	5.5~36	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP10030LH	10.0x10.0	3	0.68~10	4.8~72	10~42	4.8~21	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP10040LL	10.0x10.0	4	0.15~56	0.6~240	4.5~80	3.8~34	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP10040LH	10.0x10.0	4	2.2~22	10.8~66	8.5~28	5.5~14	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP10055LH	10.0x10.0	5.5	1~100	3.3~252	4.2~50	4~24	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP10055HL	10.0x10.0	5.5	1	2.9	33	28	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP10055LL	10.0x10.0	5.5	22	54	8.5	6.3	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP10075LL	10.0x10.0	7.5	4.7~22	10.2~50.4	9~22	8~20	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP12055LH	12.0x12.0	5.5	0.68~22	1.8~48	10~60	8.5~30	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP12070LH	12.0x12.0	7	0.47~33	1.4~58	11~70	8~37.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP12070LL	12.0x12.0	7	3.3~5.6	6~10.2	22.5~32	16.5~23	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP12090LH	12.0x12.0	9	1~47	2.5~84	8~50	7.5~38	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP12100LL	12.0x12.0	10	2.2	2.8	34	52	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP13050HL	13.0x13.0	5	1.5~2.2	4~5	32~42	22~30.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP13055LH	13.0x13.0	5.5	0.68~15	1.8~36	13~60	9.5~32	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP13055LL	13.0x13.0	5.5	10~33	24~54	8.3~13.5	6.5~10	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP13060LL	13.0x13.0	6	3.3	6.5	36	25	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP13065LL	13.0x13.0	6.5	2.8~8.2	3.7~14	17~35	14.5~26	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP13070LH	13.0x13.0	7	0.47~47	1.4~78	10~70	7~37.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP13070LL	13.0x13.0	7	6.8~56	10.8~102	7~24	6~22	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP13090LH	13.0x13.0	9	1~47	1.8~73.2	8.5~55	7.5~38	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP13090LL	13.0x13.0	9	1~3.3	1~4.8	30~40	29~34	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP151508SH	15.0x15.0	8.5	22	45			sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP17040HC	17.0x17.0	4	4.7	10	18	23.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP17040HL	17.0x17.0	4	10	27.6	18	11	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP17070QL	17.0x17.0	7	0.33	0.6	70	75.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP17070HL	17.0x17.0	7	0.47~100	0.9~168	7.5~85	6.5~55	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	CMMPP	CMI-CMMPP17075HL	17.0x17.0	7.5	10	11.4	23	22	sms
picture_as_pdf	directions_car	Shield Metal Round Wire 4 Pin	CMMPP-SC	CMI-CMMPP4030HL-SC	4.0x4.0	3.3	10~22	154~264	2.6~3.7	2.2~2.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire 4 Pin	CMMPP-SC	CMI-CMMPP7030HL-SC	7.0x7.0	3.3	0.47~33	4.8~240	3.5~32	2.7~15.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire 4 Pin	CMMPP-SC	CMI-CMMPP10040HL-SC	10.0x10.0	4.3	10~33	36~103	5~10.5	4.9~7	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Wire pin	CMMPP-WP	CMI-CMMPP6030HL-N-WP	6.0x6.0	3	0.22	2	50	35	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Wire pin	CMMPP-WP	CMI-CMMPP10075LL-WP	10.0x10.0	7.5	0.5~1	1.1~1.9	32~54	22~27	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF4020QL-SB	4.0x4.0	2.1	0.11~2.2	3.6~36	7.2~33	5~25	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF4030QL-SB	4.0x4.0	3.1	1.5~4.7	19.8~43.2	5.8~11.5	4.6~7.2	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF4040QL-SB	4.0x4.0	4.1	1.5~6.8	13.2~54	4.8~11	4.6~12	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF5030QL-SB	5.0x5.0	3.1	0.15~3.3	2.4~24	9.5~40	5.7~20	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF5030H2-SB	5.0x5.0	3.1	1	7.8	15.5	10.5	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF5050QL-SB	5.0x5.0	5.1	2.2~22	9.6~108	4.3~11	3.4~13	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF6030QL-SB	6.0x6.0	3.1	0.22~3.3	1.8~21	11.5~46	6.8~32	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF6060QL-SB	6.0x6.0	6.1	0.68~22	3.36~60	5.6~35	5~21	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF7030H2-SB	7.0x7.0	3.1	0.33~2.2	1.8~15.6	15.5~50	12~30	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF7070QL-SB	7.0x7.0	7	3.3	10.56	19.5	15.5	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF10060QL-SB	10.0x10.0	6	0.68~4.7	1.4~8.4	22~52	17~36	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF10100QL-SB	10.0x10.0	10	0.22~15	0.5~18.6	13~99	14.5~55.5	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF13022H2-SB	13.0x13.0	2.2	1.5~2.2	9.6~14.4	18~25	16~20	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF13030H2-SB	13.0x13.0	3.1	0.47~2.2	1.3~6.6	24~52	17.5~44	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF15080QL-SB	15.0x15.0	8	0.82~8.2	0.78~6.6	31.5~86	27~60.5	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CMMPF-SB	CMI-CMMPF15100QL-SB	15.0x15.0	11	4.7~33	3~18.6	17~50	22~35	sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Pin	CDP	CMI-CDP3020NF	3.0x3.0	2	3.3	110	1.7	2	sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Pin	CDP	CMI-CDP4020NF	4.0x4.0	2	1~10	30~216	1.9~4.8	1.6~3.6	sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Pin	CDP	CMI-CDP6045NF	6.0x6.0	4.6	1~220	15.6~960	1~10	1~7.8	sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Pin	CDP	CMI-CDP8040NF	8.0x8.0	4	6.8~680	30~2365	0.64~5.6	0.62~5.9	sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Pin	CDP	CMI-CDP10040NF	10.0x10.0	4	22	73	0	0	sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS201610NH	2.0x1.6	1	0.24~10	40~1000	0.7~4.1	0.55~3.1	sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS252010NH	2.5x2.0	1	1~22	120.9~2206.8			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS252012NH	2.5x2.0	1.2	0.47~22	79.3~2371.2			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS3010NH	3.0x3.0	1	1~56	84.5~2784			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS3012NH	3.0x3.0	1.2	0.82~68	39~2004			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS3015NH	3.0x3.0	1.5	1~100	50.7~3600			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS322515NH	3.2x2.5	1.75	2.2~6.8	120~240	0.9~1.7	1.2~1.85	sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS4012NH	4.0x4.0	1.2	0.82~100	65~2652			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS4018NH	4.0x4.0	1.8	0.5~330	27.3~7800			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS4020NH	4.0x4.0	2	0.47~100	23.4~1860			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS4030NH	4.0x4.0	3	0.47~470	14.3~6600			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS5020NH	5.0x5.0	2.1~2.2	1~100	26~1320			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS5040NH	5.0x5.0	4	1~2200	15.6~15600			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS6020NH	6.0x6.0	2	0.68~47	22.1~516			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS6028NH	6.0x6.0	2.8	1~1000	15.6~7540			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS6045NH	6.0x6.0	4.7	1~1500	14.3~7800			sms
picture_as_pdf	directions_car	Semi-Shield Ferrite Round Wire Plating	CDSS	CMI-CDSS8040NH	8.0x8.0	4.2	0.82~1000	10.4~3360			sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Base	CSSB	CMI-CSSB7035NH	7.0x7.0	3.5	47	288			sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Base	CSSB	CMI-CSSB7045NH	7.0x7.0	4.5	1~150	8.4~600			sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Base	CSSB	CMI-CSSB7060NH	7.0x7.0	6	10	31.2			sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Base	CSSB	CMI-CSSB12038NH	12.0x12.0	3.8	33	141.6			sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Base	CSSB	CMI-CSSB12045NH	12.0x12.0	4.5	15~100	57.6~354			sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Base	CSSB	CMI-CSSB12048NH	12.0x12.0	4.8	22~150	66~403.2			sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Base	CSSB	CMI-CSSB12055NH	12.0x12.0	5.5	10	31.2			sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Base	CSSB	CMI-CSSB12060NH	12.0x12.0	6	22~100	36~198			sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Base	CSSB	CMI-CSSB12080NH	12.0x12.0	8	3.9~470	18.48~576			sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP5018NF	5.0x5.0	1.8	1~6.8	36~155	2.1~5.4	1.8~4.3	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP5020NF	5.0x5.0	2	1~100	35~1857	0.57~5.4	0.51~4.4	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP5030NF	5.0x5.0	3	1~100	25.2~984	0.62~6.2	0.68~5.4	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP5040NF	5.0x5.0	4	1~8.2	27.6~72	2.6~6.7	2.4~5.4	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP6028NF	6.0x6.0	2.8	1~220	18~1752	0.42~6.3	0.48~6.8	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP6045NF	6.0x6.0	4.5	0.82~100	16.3~408	0.5~8.8	0.64~8.4	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP7032NF	7.0x7.0	3.2	1~100	18~525	0.8~6.3	1.3~6.5	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP7040NF	7.0x7.0	4	22~220	90~710	0.6~1.9	0.78~2.4	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP7045NF	7.0x7.0	4.5	1~1000	17~3630	0.3~9.3	0.44~8.6	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP7060NF	7.0x7.0	6	3.3~33	25.2~172	2.45~7.4	2.3~7.3	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP8045NF	8.0x8.0	4.5	1~1000	15.6~3240	0.41~12.5	0.48~9.7	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP10040NF	10.0x10.0	4	6.8~120	32.4~672	1~5.3	1.45~5.8	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP10048NF	10.0x10.0	4.8	1~1000	14.4~3024	0.6~14.5	1~11	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP10050NF	10.0x10.0	5	82	150	1.7	2.1	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP10060NF	10.0x10.0	6	10~330	36~732	1.1~6	1.18~6	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP12060NF	12.0x12.0	6	1.5~560	12.6~990	1.05~16.4	1.2~12.5	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP12080NF	12.0x12.0	8	1~1000	10.1~1620	1~20	1.3~17	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSSP	CMI-CSSP12085NF	12.0x12.0	8.5	22~33	43.2~54			sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSPC	CMI-CSPC8045NH	8.0x8.0	4.5	1.8~22	18~90			sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF6030MH	7.0x7.0	3.3	0.1~2.2	0.9~12.4	9~52	7.8~23	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF6040MH	7.0x7.0	4	0.24~6.5	1.2~36.2	6.5~30	4.6~21	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF6050MH	7.0x7.0	5	0.25~13	1~44.5	5~35	3.1~21	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF10040MH	10.0x10.0	4.3	0.18~6.8	0.7~23.6	9.5~60	5.6~30	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF10030MH	10.0x10.0	3	0.2~2.5	0.25~13.3	12~50	9~22	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF10050MH	10.0x10.0	5	0.18~18	0.55~39	6.2~55	5~32	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF10060MH	10.0x10.0	5	0.38~27	0.77~48.5	5.8~54	1~25	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF12035MH	12.0x12.0	3.5	0.25~5.6	0.9~21.9	11~50	6.8~147	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF12050MH	12.0x12.0	5	0.19~22	0.55~39.6	6.5~70	4.7~32	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF12065MH	12.0x12.0	6.5	0.2~47	0.37~62.7	5~70	4~36	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF12075MH	12.0x12.0	7.6	0.6~56	0.55~69	5.7~60	4~36	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF16070MH	16.0x16.0	7	1~22	1.05~23.5	10.5~45.5	8.5~33	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF18090MH	18.0x18.0	9.2	0.82~56	0.62~41.2	8.5~70	6.5~41.5	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CSSMF	CMI-CSSMF220120MH	20mm over	12.4	3.3~100	1.2~40.8	9~50	6.1~32	sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CPQ	CMI-CPQ1590	15.0x15.0	10.16	0.3~1.5	0.72~1.15			sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CPQ	CMI-CPQ2009	20mm over	8.64	0.3~2	0.74			sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CPQ	CMI-CPQ2010	20.0x20.0	9.4	0.3~2	1			sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CPQ	CMI-CPQ2011	20.0x20.0	10.67	0.5~2	1.34			sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CPQ	CMI-CPQ2012	20.0x20.0	11.94	0.6~2.2	1.6			sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CPQ	CMI-CPQ2013	20.0x20.0	12.95	0.68~4.7	1.82			sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CPQ	CMI-CPQ2014	20.0x20.0	13.97	0.8~4	2.15			sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CPQ	CMI-CPQ2915LD	20mm over	15.36	1.5~33	1.65			sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CPQ	CMI-CPQ2915HC	20mm over	15.36	2.2~33	2.05			sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CPQ	CMI-CPQ2918HC	20mm over	17.78	3.3~33	2.86			sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Radial	CTSCB	CMI-CTSCB1524	15.0x15.0	25	4.7~22	13~54	5.5~13	5.5~13	sms

picture_as_pdf

Part Number
CMI-MMPF201208BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 2.0x1.2
Height Max. mm : 0.8
Inductance μH : 0.24~2.2
DCR Max. mΩ : 20~137
Isat Typ. A : 2.5~7.9
Itemp Typ. A : 2.1~6.1
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF201208BC-NC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 2.0x1.2
Height Max. mm : 0.8
Inductance μH : 2.2
DCR Max. mΩ : 260
Isat Typ. A : 2.5
Itemp Typ. A : 1.6
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF201210BC-NC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 2.0x1.2
Height Max. mm : 1
Inductance μH : 2.2
DCR Max. mΩ : 212
Isat Typ. A : 2.6
Itemp Typ. A : 1.8
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF201608BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 2.0x1.6
Height Max. mm : 0.8
Inductance μH : 0.22~1.5
DCR Max. mΩ : 17~120
Isat Typ. A : 2.3~7
Itemp Typ. A : 2.1~5.8
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF201610BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 2.0x1.6
Height Max. mm : 1
Inductance μH : 0.24~10
DCR Max. mΩ : 19~700
Isat Typ. A : 0.9~7.2
Itemp Typ. A : 0.7~5.7
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF201612BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 2.0x1.6
Height Max. mm : 1.2
Inductance μH : 0.15~6.8
DCR Max. mΩ : 15~300
Isat Typ. A : 1.2~9.8
Itemp Typ. A : 1~9
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF252010BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 2.5x2.0
Height Max. mm : 1
Inductance μH : 0.47~4.7
DCR Max. mΩ : 20~130
Isat Typ. A : 1.9~6.8
Itemp Typ. A : 2.3~5.6
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF252012BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 2.5x2.0
Height Max. mm : 1.2
Inductance μH : 0.1~10
DCR Max. mΩ : 7~400
Isat Typ. A : 1.6~12
Itemp Typ. A : 1.2~12
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF322512BS NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 3.2x2.5
Height Max. mm : 1.2
Inductance μH : 0.68~4.7
DCR Max. mΩ : 23~135
Isat Typ. A : 2.9~8.1
Itemp Typ. A : 2.3~7.3
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF322530QL NEW
Feature :
Shield
Metal
Round Wire
Plating
Series : MMPF
LxW mm : 3.2x2.5
Height Max. mm : 3
Inductance μH : 3.3~4.7
DCR Max. mΩ : 60~78
Isat Typ. A : 2.9~3.6
Itemp Typ. A : 3.3~3.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF322533V NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 3.2x2.5
Height Max. mm : 3.3
Inductance μH : 2.2~3.3
DCR Max. mΩ : 48~57.6
Isat Typ. A : 8~8.5
Itemp Typ. A : 5.5~6.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF4012BS NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 4.0x4.0
Height Max. mm : 1.2
Inductance μH : 1~4.7
DCR Max. mΩ : 30~95
Isat Typ. A : 3.5~7
Itemp Typ. A : 2.7~5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF4020H2 NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 0.47~1.2
DCR Max. mΩ : 6.5~14
Isat Typ. A : 9.8~15
Itemp Typ. A : 8.3~13.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF7012H2 NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 7.0x6.0
Height Max. mm : 1.2
Inductance μH : 0.15~1.5
DCR Max. mΩ : 6~42
Isat Typ. A : 9~25
Itemp Typ. A : 8~16
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF7015H2 NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 7.0x6.0
Height Max. mm : 1.5
Inductance μH : 0.33~0.68
DCR Max. mΩ : 6~13.8
Isat Typ. A : 15.5~24
Itemp Typ. A : 12~16
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF7030H2 NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : MMPF
LxW mm : 7.0x6.0
Height Max. mm : 3
Inductance μH : 0.68~3.3
DCR Max. mΩ : 4.2~18.6
Isat Typ. A : 13~28
Itemp Typ. A : 11~20
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP201208BS
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 2.0x1.2
Height Max. mm : 0.8
Inductance μH : 0.24~2.2
DCR Max. mΩ : 26.4~156
Isat Typ. A : 2.2~6
Itemp Typ. A : 1.8~4.8
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP201210BS
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 2.0x1.2
Height Max. mm : 1
Inductance μH : 0.24~2.2
DCR Max. mΩ : 25~156
Isat Typ. A : 2.4~6.1
Itemp Typ. A : 1.8~4.9
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP201608BS
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 2.0x1.6
Height Max. mm : 0.8
Inductance μH : 0.47~2.2
DCR Max. mΩ : 42~144
Isat Typ. A : 2.5~4.5
Itemp Typ. A : 1.7~4
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP201610BS
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 2.0x1.6
Height Max. mm : 1
Inductance μH : 0.47~2.2
DCR Max. mΩ : 40~132
Isat Typ. A : 2.7~5.8
Itemp Typ. A : 2~4.2
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP252010BS
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 2.5x2.0
Height Max. mm : 1
Inductance μH : 0.22~10
DCR Max. mΩ : 20~480
Isat Typ. A : 1.3~9.2
Itemp Typ. A : 1~6.3
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP252012BS
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 2.5x2.0
Height Max. mm : 1.2
Inductance μH : 0.47~10
DCR Max. mΩ : 36~432
Isat Typ. A : 1.4~6.7
Itemp Typ. A : 1.1~4.4
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP322512BS
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 3.2x2.5
Height Max. mm : 1.2
Inductance μH : 0.68~10
DCR Max. mΩ : 37.2~390
Isat Typ. A : 1.6~7.2
Itemp Typ. A : 1.1~4.2
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP3020BS
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 3.0x3.0
Height Max. mm : 2
Inductance μH : 2.2~4.7
DCR Max. mΩ : 60~120
Isat Typ. A : 2.8~4.2
Itemp Typ. A : 2~3.2
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP4010BS
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 4.0x4.0
Height Max. mm : 1
Inductance μH : 100
DCR Max. mΩ : 336
Isat Typ. A : 2
Itemp Typ. A : 1.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP4020HL
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 0.33~15
DCR Max. mΩ : 8.4~288
Isat Typ. A : 3~17.5
Itemp Typ. A : 2~10
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP4020QL
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 0.47~1
DCR Max. mΩ : 6.6~12
Isat Typ. A : 10~11.5
Itemp Typ. A : 8.5~10
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP4020HL-A
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 1~10
DCR Max. mΩ : 39~228
Isat Typ. A : 3.8~11
Itemp Typ. A : 1.9~5.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP4020HL-B
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 1~10
DCR Max. mΩ : 20.4~150
Isat Typ. A : 3.3~10.5
Itemp Typ. A : 2.2~8
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP4030HL
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 4.0x4.0
Height Max. mm : 3
Inductance μH : 0.47~22
DCR Max. mΩ : 10~252
Isat Typ. A : 3.3~17
Itemp Typ. A : 2~9.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP4030H1-B
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 4.0x4.0
Height Max. mm : 3
Inductance μH : 3.3~4.7
DCR Max. mΩ : 42~54
Isat Typ. A : 5.5~8.5
Itemp Typ. A : 4.5~5.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP5015HL-B
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 5.0x5.0
Height Max. mm : 1.5
Inductance μH : 0.12~10
DCR Max. mΩ : 3.7~159
Isat Typ. A : 3.3~30.5
Itemp Typ. A : 2.2~18.9
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP5018HL
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 5.0x5.0
Height Max. mm : 1.8
Inductance μH : 0.47
DCR Max. mΩ : 8.5
Isat Typ. A : 16.8
Itemp Typ. A : 11.6
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP5020HL
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 5.0x5.0
Height Max. mm : 2
Inductance μH : 1~6.8
DCR Max. mΩ : 16.8~108
Isat Typ. A : 5.2~12
Itemp Typ. A : 3.9~8.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP5030HL-A
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 5.0x5.0
Height Max. mm : 3
Inductance μH : 0.47~22
DCR Max. mΩ : 6.6~204
Isat Typ. A : 4.5~22
Itemp Typ. A : 2.3~14.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP6020HL
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 6.0x6.0
Height Max. mm : 2
Inductance μH : 1~6.8
DCR Max. mΩ : 15~84
Isat Typ. A : 5.2~12.5
Itemp Typ. A : 4.2~8.2
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP7018HL
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 7.0x7.0
Height Max. mm : 1.8
Inductance μH : 0.47~10
DCR Max. mΩ : 9.6~150
Isat Typ. A : 5~27
Itemp Typ. A : 3.3~10.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP7024HL-A
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 7.0x7.0
Height Max. mm : 2.4
Inductance μH : 2.2~15
DCR Max. mΩ : 17.4~162
Isat Typ. A : 5.2~12.5
Itemp Typ. A : 3.3~9
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP7030HL
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 7.0x7.0
Height Max. mm : 3
Inductance μH : 0.47~47
DCR Max. mΩ : 4.8~312
Isat Typ. A : 3.3~33
Itemp Typ. A : 2.2~18
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP7030HL-A
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 7.0x7.0
Height Max. mm : 3
Inductance μH : 1~22
DCR Max. mΩ : 9~168
Isat Typ. A : 5.2~21
Itemp Typ. A : 3~13
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP7030HL-B
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 7.0x7.0
Height Max. mm : 3
Inductance μH : 1~22
DCR Max. mΩ : 7.2~120
Isat Typ. A : 4.5~18.5
Itemp Typ. A : 3.5~15
Inquiry sms

picture_as_pdf

Part Number
CMI-MMP7030H1-B
Feature :
Shield
Metal
Round Wire
Plating
Series : MMP
LxW mm : 7.0x7.0
Height Max. mm : 3
Inductance μH : 3.3~6.8
DCR Max. mΩ : 21.6~36
Isat Typ. A : 9.5~14
Itemp Typ. A : 6.3~9
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP4018MH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 4.0x4.0
Height Max. mm : 1.8
Inductance μH : 4.7
DCR Max. mΩ : 126
Isat Typ. A : 4
Itemp Typ. A : 2.8
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP4020MH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 1~10
DCR Max. mΩ : 36~216
Isat Typ. A : 2.8~8
Itemp Typ. A : 2.1~5.1
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP4020HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 0.1~15
DCR Max. mΩ : 3.6~300
Isat Typ. A : 2.8~30
Itemp Typ. A : 1.9~16.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP4020LH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 0.22
DCR Max. mΩ : 6.4
Isat Typ. A : 28
Itemp Typ. A : 12
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP4030HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 4.0x4.0
Height Max. mm : 3
Inductance μH : 0.1~22
DCR Max. mΩ : 5.4~264
Isat Typ. A : 2.6~32
Itemp Typ. A : 2.2~15
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP4040HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 4.0x4.0
Height Max. mm : 4
Inductance μH : 2.2~15
DCR Max. mΩ : 25.2~228
Isat Typ. A : 2.6~7.5
Itemp Typ. A : 2.6~7
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP5015HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 5.0x5.0
Height Max. mm : 1.5
Inductance μH : 0.15~2.2
DCR Max. mΩ : 4.5~54
Isat Typ. A : 7.3~26
Itemp Typ. A : 4.5~16
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP5018HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 5.0x5.0
Height Max. mm : 1.8
Inductance μH : 0.47
DCR Max. mΩ : 9.6
Isat Typ. A : 16
Itemp Typ. A : 10.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP5020HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 5.0x5.0
Height Max. mm : 2
Inductance μH : 0.1~6.8
DCR Max. mΩ : 3~132
Isat Typ. A : 4.5~35
Itemp Typ. A : 2.9~25
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP5030HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 5.0x5.0
Height Max. mm : 3
Inductance μH : 0.33~22
DCR Max. mΩ : 4.8~220
Isat Typ. A : 2.8~25
Itemp Typ. A : 2.2~15
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP5040HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 5.0x5.0
Height Max. mm : 4
Inductance μH : 3.3~22
DCR Max. mΩ : 32.4~180
Isat Typ. A : 3.1~10
Itemp Typ. A : 2.7~8
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP6012HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 6.0x6.0
Height Max. mm : 1.2
Inductance μH : 0.1~10
DCR Max. mΩ : 5.4~312
Isat Typ. A : 3~32
Itemp Typ. A : 1.9~14
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP6015HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 6.0x6.0
Height Max. mm : 1.5
Inductance μH : 1~10
DCR Max. mΩ : 30~228
Isat Typ. A : 3.1~10.5
Itemp Typ. A : 2.2~6.2
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP6020LH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 6.0x6.0
Height Max. mm : 2
Inductance μH : 1~10
DCR Max. mΩ : 18.6~150
Isat Typ. A : 4.5~16
Itemp Typ. A : 2.8~7.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP6030LH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 6.0x6.0
Height Max. mm : 3
Inductance μH : 2.2~3.3
DCR Max. mΩ : 21~30
Isat Typ. A : 10.5~14
Itemp Typ. A : 7.5~8
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP6015HL-N
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 6.0x6.0
Height Max. mm : 1.5
Inductance μH : 0.82~10
DCR Max. mΩ : 14.4~228
Isat Typ. A : 4~12
Itemp Typ. A : 2.4~9.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP6018LH-N
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 6.0x6.0
Height Max. mm : 1.8
Inductance μH : 0.15~10
DCR Max. mΩ : 3.36~192
Isat Typ. A : 5~45
Itemp Typ. A : 2.5~18
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP6024LH-N
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 6.0x6.0
Height Max. mm : 2.4
Inductance μH : 0.1~10
DCR Max. mΩ : 2.4~96
Isat Typ. A : 6~65
Itemp Typ. A : 3.7~23.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP6030LH-N
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 6.0x6.0
Height Max. mm : 3
Inductance μH : 0.1~33
DCR Max. mΩ : 1.8~240
Isat Typ. A : 3.7~67
Itemp Typ. A : 2.7~24
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP6030HL-N
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 6.0x6.0
Height Max. mm : 3
Inductance μH : 1~47
DCR Max. mΩ : 7.5~360
Isat Typ. A : 2~18
Itemp Typ. A : 1.8~14
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP6040HL-N
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 6.0x6.0
Height Max. mm : 4
Inductance μH : 2.2~33
DCR Max. mΩ : 14.4~156
Isat Typ. A : 3.3~13.5
Itemp Typ. A : 3.3~8.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP6050LH-N
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 6.0x6.0
Height Max. mm : 5
Inductance μH : 0.68~0.82
DCR Max. mΩ : 4.8~7.2
Isat Typ. A : 26~27
Itemp Typ. A : 14.5~14.7
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP6050HL-N
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 6.0x6.0
Height Max. mm : 5
Inductance μH : 0.68~68
DCR Max. mΩ : 4.8~312
Isat Typ. A : 2.5~27
Itemp Typ. A : 2.5~14.7
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP8040HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 8.0x8.0
Height Max. mm : 5
Inductance μH : 0.22
DCR Max. mΩ : 1.2
Isat Typ. A : 60
Itemp Typ. A : 55
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP8050HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 8.0x8.0
Height Max. mm : 5
Inductance μH : 0.5~47
DCR Max. mΩ : 5.4~204
Isat Typ. A : 4.5~32
Itemp Typ. A : 3.3~19.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP10030HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 10.0x10.0
Height Max. mm : 3
Inductance μH : 0.15~22
DCR Max. mΩ : 0.9~108
Isat Typ. A : 5.5~65
Itemp Typ. A : 5.5~36
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP10030LH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 10.0x10.0
Height Max. mm : 3
Inductance μH : 0.68~10
DCR Max. mΩ : 4.8~72
Isat Typ. A : 10~42
Itemp Typ. A : 4.8~21
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP10040LL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 10.0x10.0
Height Max. mm : 4
Inductance μH : 0.15~56
DCR Max. mΩ : 0.6~240
Isat Typ. A : 4.5~80
Itemp Typ. A : 3.8~34
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP10040LH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 10.0x10.0
Height Max. mm : 4
Inductance μH : 2.2~22
DCR Max. mΩ : 10.8~66
Isat Typ. A : 8.5~28
Itemp Typ. A : 5.5~14
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP10055LH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 10.0x10.0
Height Max. mm : 5.5
Inductance μH : 1~100
DCR Max. mΩ : 3.3~252
Isat Typ. A : 4.2~50
Itemp Typ. A : 4~24
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP10055HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 10.0x10.0
Height Max. mm : 5.5
Inductance μH : 1
DCR Max. mΩ : 2.9
Isat Typ. A : 33
Itemp Typ. A : 28
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP10055LL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 10.0x10.0
Height Max. mm : 5.5
Inductance μH : 22
DCR Max. mΩ : 54
Isat Typ. A : 8.5
Itemp Typ. A : 6.3
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP10075LL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 10.0x10.0
Height Max. mm : 7.5
Inductance μH : 4.7~22
DCR Max. mΩ : 10.2~50.4
Isat Typ. A : 9~22
Itemp Typ. A : 8~20
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP12055LH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 12.0x12.0
Height Max. mm : 5.5
Inductance μH : 0.68~22
DCR Max. mΩ : 1.8~48
Isat Typ. A : 10~60
Itemp Typ. A : 8.5~30
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP12070LH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 12.0x12.0
Height Max. mm : 7
Inductance μH : 0.47~33
DCR Max. mΩ : 1.4~58
Isat Typ. A : 11~70
Itemp Typ. A : 8~37.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP12070LL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 12.0x12.0
Height Max. mm : 7
Inductance μH : 3.3~5.6
DCR Max. mΩ : 6~10.2
Isat Typ. A : 22.5~32
Itemp Typ. A : 16.5~23
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP12090LH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 12.0x12.0
Height Max. mm : 9
Inductance μH : 1~47
DCR Max. mΩ : 2.5~84
Isat Typ. A : 8~50
Itemp Typ. A : 7.5~38
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP12100LL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 12.0x12.0
Height Max. mm : 10
Inductance μH : 2.2
DCR Max. mΩ : 2.8
Isat Typ. A : 34
Itemp Typ. A : 52
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP13055LH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 13.0x13.0
Height Max. mm : 5.5
Inductance μH : 0.68~15
DCR Max. mΩ : 1.8~36
Isat Typ. A : 13~60
Itemp Typ. A : 9.5~32
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP13055LL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 13.0x13.0
Height Max. mm : 5.5
Inductance μH : 10~33
DCR Max. mΩ : 24~54
Isat Typ. A : 8.3~13.5
Itemp Typ. A : 6.5~10
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP13060LL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 13.0x13.0
Height Max. mm : 6
Inductance μH : 3.3
DCR Max. mΩ : 6.5
Isat Typ. A : 36
Itemp Typ. A : 25
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP13065LL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 13.0x13.0
Height Max. mm : 6.5
Inductance μH : 2.8~8.2
DCR Max. mΩ : 3.7~14
Isat Typ. A : 17~35
Itemp Typ. A : 14.5~26
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP13070LH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 13.0x13.0
Height Max. mm : 7
Inductance μH : 0.47~47
DCR Max. mΩ : 1.4~78
Isat Typ. A : 10~70
Itemp Typ. A : 7~37.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP13070LL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 13.0x13.0
Height Max. mm : 7
Inductance μH : 6.8~56
DCR Max. mΩ : 10.8~102
Isat Typ. A : 7~24
Itemp Typ. A : 6~22
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP13090LH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 13.0x13.0
Height Max. mm : 9
Inductance μH : 1~47
DCR Max. mΩ : 1.8~73.2
Isat Typ. A : 8.5~55
Itemp Typ. A : 7.5~38
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP13090LL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 13.0x13.0
Height Max. mm : 9
Inductance μH : 1~3.3
DCR Max. mΩ : 1~4.8
Isat Typ. A : 30~40
Itemp Typ. A : 29~34
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP15080SH
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 15.0x15.0
Height Max. mm : 8.5
Inductance μH : 22
DCR Max. mΩ : 45
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP17040HC
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 17.0x17.0
Height Max. mm : 4
Inductance μH : 4.7
DCR Max. mΩ : 10
Isat Typ. A : 18
Itemp Typ. A : 23.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP17040HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 17.0x17.0
Height Max. mm : 4
Inductance μH : 10
DCR Max. mΩ : 27.6
Isat Typ. A : 18
Itemp Typ. A : 11
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP17070QL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 17.0x17.0
Height Max. mm : 7
Inductance μH : 0.33
DCR Max. mΩ : 0.6
Isat Typ. A : 70
Itemp Typ. A : 75.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP17070HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 17.0x17.0
Height Max. mm : 7
Inductance μH : 0.47~100
DCR Max. mΩ : 0.9~168
Isat Typ. A : 7.5~85
Itemp Typ. A : 6.5~55
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP17075HL
Feature :
Shield
Metal
Round Wire
Pin
Series : MMPP
LxW mm : 17.0x17.0
Height Max. mm : 7.5
Inductance μH : 10
DCR Max. mΩ : 11.4
Isat Typ. A : 23
Itemp Typ. A : 22
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP6030HL-N-WP
Feature :
Shield
Metal
Round Wire
Wire pin
Series : MMPP-WP
LxW mm : 6.0x6.0
Height Max. mm : 3
Inductance μH : 0.22
DCR Max. mΩ : 2
Isat Typ. A : 50
Itemp Typ. A : 35
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPP10075LL-WP
Feature :
Shield
Metal
Round Wire
Wire pin
Series : MMPP-WP
LxW mm : 10.0x10.0
Height Max. mm : 7.5
Inductance μH : 0.5~1
DCR Max. mΩ : 1.1~1.9
Isat Typ. A : 32~54
Itemp Typ. A : 22~27
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF4020QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 4.0x4.0
Height Max. mm : 2.1
Inductance μH : 0.11~2.2
DCR Max. mΩ : 3.6~36
Isat Typ. A : 7.2~33
Itemp Typ. A : 5~25
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF4030QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 4.0x4.0
Height Max. mm : 3.1
Inductance μH : 1.5~4.7
DCR Max. mΩ : 19.8~43.2
Isat Typ. A : 5.8~11.5
Itemp Typ. A : 4.6~7.2
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF4040QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 4.0x4.0
Height Max. mm : 4.1
Inductance μH : 1.5~6.8
DCR Max. mΩ : 13.2~54
Isat Typ. A : 4.8~11
Itemp Typ. A : 4.6~12
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF5030QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 5.0x5.0
Height Max. mm : 3.1
Inductance μH : 0.15~3.3
DCR Max. mΩ : 2.4~24
Isat Typ. A : 9.5~40
Itemp Typ. A : 5.7~20
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF5030H2-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 5.0x5.0
Height Max. mm : 3.1
Inductance μH : 1
DCR Max. mΩ : 7.8
Isat Typ. A : 15.5
Itemp Typ. A : 10.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF5050QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 5.0x5.0
Height Max. mm : 5.1
Inductance μH : 2.2~22
DCR Max. mΩ : 9.6~108
Isat Typ. A : 4.3~11
Itemp Typ. A : 3.4~13
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF6030QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 6.0x6.0
Height Max. mm : 3.1
Inductance μH : 0.22~3.3
DCR Max. mΩ : 1.8~21
Isat Typ. A : 11.5~46
Itemp Typ. A : 6.8~32
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF6060QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 6.0x6.0
Height Max. mm : 6.1
Inductance μH : 0.68~22
DCR Max. mΩ : 3.36~60
Isat Typ. A : 5.6~35
Itemp Typ. A : 5~21
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF7030H2-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 7.0x7.0
Height Max. mm : 3.1
Inductance μH : 0.33~2.2
DCR Max. mΩ : 1.8~15.6
Isat Typ. A : 15.5~50
Itemp Typ. A : 12~30
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF7070QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 7.0x7.0
Height Max. mm : 7
Inductance μH : 3.3
DCR Max. mΩ : 10.56
Isat Typ. A : 19.5
Itemp Typ. A : 15.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF10060QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 10.0x10.0
Height Max. mm : 6
Inductance μH : 0.68~4.7
DCR Max. mΩ : 1.4~8.4
Isat Typ. A : 22~52
Itemp Typ. A : 17~36
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF10100QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 10.0x10.0
Height Max. mm : 10
Inductance μH : 0.22~15
DCR Max. mΩ : 0.5~18.6
Isat Typ. A : 13~99
Itemp Typ. A : 14.5~55.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF13022H2-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 13.0x13.0
Height Max. mm : 2.2
Inductance μH : 1.5~2.2
DCR Max. mΩ : 9.6~14.4
Isat Typ. A : 18~25
Itemp Typ. A : 16~20
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF13030H2-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 13.0x13.0
Height Max. mm : 3.1
Inductance μH : 0.47~2.2
DCR Max. mΩ : 1.3~6.6
Isat Typ. A : 24~52
Itemp Typ. A : 17.5~44
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF15080QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 15.0x15.0
Height Max. mm : 8
Inductance μH : 0.82~8.2
DCR Max. mΩ : 0.78~6.6
Isat Typ. A : 31.5~86
Itemp Typ. A : 27~60.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPF15100QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : MMPF-SB
LxW mm : 15.0x15.0
Height Max. mm : 11
Inductance μH : 4.7~33
DCR Max. mΩ : 3~18.6
Isat Typ. A : 17~50
Itemp Typ. A : 22~35
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP201608NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 2.0x1.6
Height Max. mm : 0.8
Inductance μH : 0.47~4.7
DCR Max. mΩ : 80.4~590.4
Isat Typ. A : 0.64~2
Itemp Typ. A : 0.7~2.2
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP201610NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 2.0x1.6
Height Max. mm : 1
Inductance μH : 0.47~4.7
DCR Max. mΩ : 54~540
Isat Typ. A : 0.89~3.1
Itemp Typ. A : 0.76~2.7
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP201612NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 2.0x1.6
Height Max. mm : 1.2
Inductance μH : 0.47~4.7
DCR Max. mΩ : 54.6~442
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP252010NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 2.5x2.0
Height Max. mm : 1
Inductance μH : 0.5~22
DCR Max. mΩ : 58.5~1950
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP252012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 2.5x2.0
Height Max. mm : 1.2
Inductance μH : 0.47~10
DCR Max. mΩ : 40.3~432
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP3010NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 3.0x3.0
Height Max. mm : 1
Inductance μH : 1~10
DCR Max. mΩ : 71.5~598
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP3012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 3.0x3.0
Height Max. mm : 1.2
Inductance μH : 0.5~10
DCR Max. mΩ : 42.9~420
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP3015NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 3.0x3.0
Height Max. mm : 1.5
Inductance μH : 1~10
DCR Max. mΩ : 49.4~354
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP3818NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 4.0x4.0
Height Max. mm : 1.8
Inductance μH : 10
DCR Max. mΩ : 93
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP4010NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 4.0x4.0
Height Max. mm : 1
Inductance μH : 0.5~22
DCR Max. mΩ : 37.7~974.4
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP4012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 4.0x4.0
Height Max. mm : 1.2
Inductance μH : 1~33
DCR Max. mΩ : 58.5~1256
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP4014NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 4.0x4.0
Height Max. mm : 1.4
Inductance μH : 0.5~22
DCR Max. mΩ : 28.6~618
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP4018NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 4.0x4.0
Height Max. mm : 1.8
Inductance μH : 0.5~33
DCR Max. mΩ : 24.7~615.6
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP5010NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 5.0x5.0
Height Max. mm : 1
Inductance μH : 1~22
DCR Max. mΩ : 74.1~792
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP5012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 5.0x5.0
Height Max. mm : 1.2
Inductance μH : 1~22
DCR Max. mΩ : 68.9~787.2
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP5018NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 5.0x5.0
Height Max. mm : 1.8
Inductance μH : 1~22
DCR Max. mΩ : 32.5~414
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP5020NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 5.0x5.0
Height Max. mm : 2
Inductance μH : 1~33
DCR Max. mΩ : 52~560.4
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP5025NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 5.0x5.0
Height Max. mm : 2.5
Inductance μH : 2.2
DCR Max. mΩ : 42.9
Isat Typ. A : 6
Itemp Typ. A : 4.6
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP5030NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 5.0x5.0
Height Max. mm : 3
Inductance μH : 1~22
DCR Max. mΩ : 28.6~228
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP6010NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 6.0x6.0
Height Max. mm : 1
Inductance μH : 1~22
DCR Max. mΩ : 17.5~678.2
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP6012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 6.0x6.0
Height Max. mm : 1.2
Inductance μH : 1.5~15
DCR Max. mΩ : 83.5~585
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP6015NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 6.0x6.0
Height Max. mm : 1.5
Inductance μH : 0.5~22
DCR Max. mΩ : 20.8~360
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP6018NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 6.0x6.0
Height Max. mm : 1.8
Inductance μH : 1~22
DCR Max. mΩ : 36.4~396
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP6028NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 6.0x6.0
Height Max. mm : 2.8
Inductance μH : 6.8~10
DCR Max. mΩ : 72.8~87.6
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DOP6040NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DOP
LxW mm : 6.0x6.0
Height Max. mm : 4
Inductance μH : 22
DCR Max. mΩ : 96
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP4012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 4.0x4.0
Height Max. mm : 1.2
Inductance μH : 1~22
DCR Max. mΩ : 1.02~702
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP4018NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 4.0x4.0
Height Max. mm : 1.8
Inductance μH : 1~220
DCR Max. mΩ : 30~4560
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP4020NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 1~100
DCR Max. mΩ : 30~1740
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP4030NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 4.0x4.0
Height Max. mm : 3
Inductance μH : 1~220
DCR Max. mΩ : 1.032~540
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP5010NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 5.0x5.0
Height Max. mm : 1
Inductance μH : 1~22
DCR Max. mΩ : 84~720
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP5012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 5.0x5.0
Height Max. mm : 1.2
Inductance μH : 1~22
DCR Max. mΩ : 66~1020
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP5014NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 5.0x5.0
Height Max. mm : 1.4
Inductance μH : 0.47~22
DCR Max. mΩ : 30~540
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP5020NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 5.0x5.0
Height Max. mm : 2
Inductance μH : 0.47~22
DCR Max. mΩ : 14.4~270
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP5030NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 5.0x5.0
Height Max. mm : 3
Inductance μH : 0.47~22
DCR Max. mΩ : 12~216
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP5040NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 5.0x5.0
Height Max. mm : 4
Inductance μH : 1~47
DCR Max. mΩ : 20.4~324
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP6010NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 6.0x6.0
Height Max. mm : 1
Inductance μH : 1.5~22
DCR Max. mΩ : 108~696
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP6012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 6.0x6.0
Height Max. mm : 1.2
Inductance μH : 1~100
DCR Max. mΩ : 66~2004
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP6020NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 6.0x6.0
Height Max. mm : 2
Inductance μH : 1~22
DCR Max. mΩ : 24~252
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP6028NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 6.0x6.0
Height Max. mm : 2.8
Inductance μH : 1~100
DCR Max. mΩ : 1.2~600
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP6040NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 6.0x6.0
Height Max. mm : 4
Inductance μH : 1~33
DCR Max. mΩ : 9.6~162
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP6045NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 6.0x6.0
Height Max. mm : 4.5
Inductance μH : 0.47~82
DCR Max. mΩ : 7.68~462
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP7032NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 7.0x7.0
Height Max. mm : 3.2
Inductance μH : 1~220
DCR Max. mΩ : 20.4~1426.8
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP7050NH-C
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 7.0x7.0
Height Max. mm : 5
Inductance μH : 1.5~220
DCR Max. mΩ : 16.8~792
Isat Typ. A : 1~10.6
Itemp Typ. A : 1.2~9.1
Inquiry sms

picture_as_pdf

Part Number
CMI-DP8040NH
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 8.0x8.0
Height Max. mm : 4
Inductance μH : 1~270
DCR Max. mΩ : 9.6~900
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DP8040NH-A
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : DP
LxW mm : 8.0x8.0
Height Max. mm : 4
Inductance μH : 1~330
DCR Max. mΩ : 12~1200
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS201610NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 2.0x1.6
Height Max. mm : 1
Inductance μH : 0.24~10
DCR Max. mΩ : 40~1000
Isat Typ. A : 0.7~4.1
Itemp Typ. A : 0.55~3.1
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS252010NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 2.5x2.0
Height Max. mm : 1
Inductance μH : 1~22
DCR Max. mΩ : 120.9~2206.8
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS252012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 2.5x2.0
Height Max. mm : 1.2
Inductance μH : 0.47~22
DCR Max. mΩ : 79.3~2371.2
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS3010NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 3.0x3.0
Height Max. mm : 1
Inductance μH : 1~56
DCR Max. mΩ : 84.5~2784
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS3012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 3.0x3.0
Height Max. mm : 1.2
Inductance μH : 0.82~68
DCR Max. mΩ : 39~2004
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS3015NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 3.0x3.0
Height Max. mm : 1.5
Inductance μH : 1~100
DCR Max. mΩ : 50.7~3600
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS4012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 4.0x4.0
Height Max. mm : 1.2
Inductance μH : 0.82~100
DCR Max. mΩ : 65~2652
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS4018NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 4.0x4.0
Height Max. mm : 1.8
Inductance μH : 0.5~330
DCR Max. mΩ : 27.3~7800
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS4020NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 0.47~100
DCR Max. mΩ : 23.4~1860
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS4030NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 4.0x4.0
Height Max. mm : 3
Inductance μH : 0.47~470
DCR Max. mΩ : 14.3~6600
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS5020NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 5.0x5.0
Height Max. mm : 2.1
Inductance μH : 1~100
DCR Max. mΩ : 26~1320
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS5040NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 5.0x5.0
Height Max. mm : 4
Inductance μH : 1~2200
DCR Max. mΩ : 15.6~15600
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS6020NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 6.0x6.0
Height Max. mm : 2
Inductance μH : 0.68~47
DCR Max. mΩ : 22.1~516
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS6028NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 6.0x6.0
Height Max. mm : 2.8
Inductance μH : 1~1000
DCR Max. mΩ : 15.6~7540
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS6045NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 6.0x6.0
Height Max. mm : 4.7
Inductance μH : 1~1500
DCR Max. mΩ : 14.3~7800
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-DSS8040NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : DSS
LxW mm : 8.0x8.0
Height Max. mm : 4.2
Inductance μH : 0.82~1000
DCR Max. mΩ : 10.4~3360
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP5018NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 5.0x5.0
Height Max. mm : 1.8
Inductance μH : 1~6.8
DCR Max. mΩ : 39~167.7
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP5020NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 5.0x5.0
Height Max. mm : 2
Inductance μH : 1~100
DCR Max. mΩ : 37.7~1857.6
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP5030NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 5.0x5.0
Height Max. mm : 3
Inductance μH : 1~100
DCR Max. mΩ : 27.3~984
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP5040NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 5.0x5.0
Height Max. mm : 4
Inductance μH : 1~8.2
DCR Max. mΩ : 27.6~72
Isat Typ. A : 2.6~6.7
Itemp Typ. A : 2.4~5.4
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP6028NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 6.0x6.0
Height Max. mm : 2.8
Inductance μH : 1~150
DCR Max. mΩ : 18~1032
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP6028NH-A
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 6.0x6.0
Height Max. mm : 2.8
Inductance μH : 1~220
DCR Max. mΩ : 14.4~1560
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP6028NH-B
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 6.0x6.0
Height Max. mm : 2.8
Inductance μH : 1~220
DCR Max. mΩ : 14.4~1404
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP6045NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 6.0x6.0
Height Max. mm : 4.5
Inductance μH : 0.82~150
DCR Max. mΩ : 16.3~600
Isat Typ. A : 0.45~8.8
Itemp Typ. A : 0.58~8.4
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP7032NH-A
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 7.0x7.0
Height Max. mm : 3.2
Inductance μH : 1~220
DCR Max. mΩ : 22.1~1426
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP7032NH-B
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 7.0x7.0
Height Max. mm : 3.2
Inductance μH : 1~220
DCR Max. mΩ : 16.9~1009.2
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP7043NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 7.0x7.0
Height Max. mm : 4.3
Inductance μH : 1.5~3.3
DCR Max. mΩ : 19.2~28.8
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP7050NH-BC
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 7.0x7.0
Height Max. mm : 5
Inductance μH : 4.7~100
DCR Max. mΩ : 26.4~396
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP7055NH-A
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 7.0x7.0
Height Max. mm : 5.5
Inductance μH : 1~220
DCR Max. mΩ : 23.4~1116
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP7055NH-B
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 7.0x7.0
Height Max. mm : 5.5
Inductance μH : 1~220
DCR Max. mΩ : 19.5~741.6
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP7045NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 7.0x7.0
Height Max. mm : 4.5
Inductance μH : 1~1000
DCR Max. mΩ : 17~3630
Isat Typ. A : 0.3~9.3
Itemp Typ. A : 0.44~8.6
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP7045NH-A
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 7.0x7.0
Height Max. mm : 4.5
Inductance μH : 1~220
DCR Max. mΩ : 22.8~1272
Isat Typ. A : 0
Itemp Typ. A : 0
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP7045NH-B
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 7.0x7.0
Height Max. mm : 4.5
Inductance μH : 1~220
DCR Max. mΩ : 20.4~950.4
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP8045NH-A
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 8.0x8.0
Height Max. mm : 4.5
Inductance μH : 1~220
DCR Max. mΩ : 20.8~1149.6
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP8045NH-B
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 8.0x8.0
Height Max. mm : 4.5
Inductance μH : 1~220
DCR Max. mΩ : 19.5~886.8
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP8050NH-A
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 8.0x8.0
Height Max. mm : 5
Inductance μH : 15~22
DCR Max. mΩ : 84~126
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP10040NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 10.0x10.0
Height Max. mm : 4
Inductance μH : 15~200
DCR Max. mΩ : 57.6~678
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP10048NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 10.0x10.0
Height Max. mm : 4.8
Inductance μH : 1~1000
DCR Max. mΩ : 14.4~3024
Isat Typ. A : 0.6~14.5
Itemp Typ. A : 1~11
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP12050NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 12.0x12.0
Height Max. mm : 5
Inductance μH : 8.2~330
DCR Max. mΩ : 33.6~1176
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP12060NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 12.0x12.0
Height Max. mm : 6
Inductance μH : 1.5~560
DCR Max. mΩ : 12.6~990
Isat Typ. A : 1.08~16.4
Itemp Typ. A : 1.2~12.5
Inquiry sms

picture_as_pdf

Part Number
CMI-SSP12080NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : SSP
LxW mm : 12.0x12.0
Height Max. mm : 8
Inductance μH : 1~1000
DCR Max. mΩ : 10.1~1620
Isat Typ. A : 1~20
Itemp Typ. A : 1.3~17
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF6030MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 7.0x7.0
Height Max. mm : 3.3
Inductance μH : 0.1~2.2
DCR Max. mΩ : 0.9~12.4
Isat Typ. A : 9~52
Itemp Typ. A : 7.8~23
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF6040MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 7.0x7.0
Height Max. mm : 4
Inductance μH : 0.24~6.5
DCR Max. mΩ : 1.2~36.2
Isat Typ. A : 6.5~30
Itemp Typ. A : 4.6~21
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF6050MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 7.0x7.0
Height Max. mm : 5
Inductance μH : 0.25~13
DCR Max. mΩ : 1~44.5
Isat Typ. A : 5~35
Itemp Typ. A : 3.1~21
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF10040MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 10.0x10.0
Height Max. mm : 4.3
Inductance μH : 0.18~6.8
DCR Max. mΩ : 0.7~23.6
Isat Typ. A : 9.5~60
Itemp Typ. A : 5.6~30
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF10030MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 10.0x10.0
Height Max. mm : 3
Inductance μH : 0.2~2.5
DCR Max. mΩ : 0.25~13.3
Isat Typ. A : 12~50
Itemp Typ. A : 9~22
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF10050MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 10.0x10.0
Height Max. mm : 5
Inductance μH : 0.18~18
DCR Max. mΩ : 0.55~39
Isat Typ. A : 6.2~55
Itemp Typ. A : 5~32
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF10060MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 10.0x10.0
Height Max. mm : 5
Inductance μH : 0.38~27
DCR Max. mΩ : 0.77~48.5
Isat Typ. A : 5.8~54
Itemp Typ. A : 1~25
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF12035MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 13.0x13.0
Height Max. mm : 3.5
Inductance μH : 0.25~5.6
DCR Max. mΩ : 0.9~21.9
Isat Typ. A : 11~50
Itemp Typ. A : 6.8~147
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF12050MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 13.0x13.0
Height Max. mm : 5
Inductance μH : 0.19~22
DCR Max. mΩ : 0.55~39.6
Isat Typ. A : 6.5~70
Itemp Typ. A : 4.7~32
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF12065MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 13.0x13.0
Height Max. mm : 6.5
Inductance μH : 0.2~47
DCR Max. mΩ : 0.37~62.7
Isat Typ. A : 5~70
Itemp Typ. A : 4~36
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF12075MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 13.0x13.0
Height Max. mm : 7.6
Inductance μH : 0.6~56
DCR Max. mΩ : 0.55~69
Isat Typ. A : 5.7~60
Itemp Typ. A : 4~36
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF16070MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 16.0x16.0
Height Max. mm : 7
Inductance μH : 1~22
DCR Max. mΩ : 1.05~23.5
Isat Typ. A : 10.5~45.5
Itemp Typ. A : 8.5~33
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF18090MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 18.0x18.0
Height Max. mm : 9.2
Inductance μH : 0.82~56
DCR Max. mΩ : 0.62~41.2
Isat Typ. A : 8.5~70
Itemp Typ. A : 6.5~41.5
Inquiry sms

picture_as_pdf

Part Number
CMI-SSMF220120MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : SSMF
LxW mm : 20mm over
Height Max. mm : 12.4
Inductance μH : 3.3~100
DCR Max. mΩ : 1.2~40.8
Isat Typ. A : 9~50
Itemp Typ. A : 6.1~32
Inquiry sms

picture_as_pdf

Part Number
CMI-PQ1590
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : PQ
LxW mm : 15.0x15.0
Height Max. mm : 10.16
Inductance μH : 0.3~1.5
DCR Max. mΩ : 0.72~1.15
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-PQ2009
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : PQ
LxW mm : 19.0x19.0
Height Max. mm : 8.64
Inductance μH : 0.3~2
DCR Max. mΩ : 0.74
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-PQ2010
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : PQ
LxW mm : 19.0x19.0
Height Max. mm : 9.4
Inductance μH : 0.3~2
DCR Max. mΩ : 1
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-PQ2011
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : PQ
LxW mm : 19.0x19.0
Height Max. mm : 10.67
Inductance μH : 0.5~2
DCR Max. mΩ : 1.34
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-PQ2012
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : PQ
LxW mm : 19.0x19.0
Height Max. mm : 11.94
Inductance μH : 0.6~2
DCR Max. mΩ : 1.6
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-PQ2013
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : PQ
LxW mm : 19.0x19.0
Height Max. mm : 12.95
Inductance μH : 0.68~4.7
DCR Max. mΩ : 1.82
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-PQ2014
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : PQ
LxW mm : 19.0x19.0
Height Max. mm : 13.97
Inductance μH : 0.8~4
DCR Max. mΩ : 2.15
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-PQ2915LD
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : PQ
LxW mm : 20mm over
Height Max. mm : 15.36
Inductance μH : 1.5~33
DCR Max. mΩ : 1.65
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-PQ2915HC
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : PQ
LxW mm : 20mm over
Height Max. mm : 15.36
Inductance μH : 2.2~33
DCR Max. mΩ : 2.05
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-PQ2918HC
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : PQ
LxW mm : 20mm over
Height Max. mm : 17.78
Inductance μH : 3.3~33
DCR Max. mΩ : 2.86
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF201208BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 2.0x1.2
Height Max. mm : 0.8
Inductance μH : 0.24~2.2
DCR Max. mΩ : 20~137
Isat Typ. A : 2.5~7.9
Itemp Typ. A : 2.1~6.1
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF201208BC-NC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 2.0x1.2
Height Max. mm : 0.8
Inductance μH : 2.2
DCR Max. mΩ : 260
Isat Typ. A : 2.5
Itemp Typ. A : 1.6
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF201210BC-NC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 2.0x1.2
Height Max. mm : 1
Inductance μH : 2.2
DCR Max. mΩ : 212
Isat Typ. A : 2.6
Itemp Typ. A : 1.8
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF201608BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 2.0x1.6
Height Max. mm : 0.8
Inductance μH : 0.22~1.5
DCR Max. mΩ : 17~120
Isat Typ. A : 2.3~7
Itemp Typ. A : 2.1~5.8
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF201610BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 2.0x1.6
Height Max. mm : 1
Inductance μH : 0.24~10
DCR Max. mΩ : 19~700
Isat Typ. A : 0.9~7.2
Itemp Typ. A : 0.7~5.7
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF201612BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 2.0x1.6
Height Max. mm : 1.2
Inductance μH : 0.15~6.8
DCR Max. mΩ : 15~300
Isat Typ. A : 1.2~9.8
Itemp Typ. A : 1~9
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF252010BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 2.5x2.0
Height Max. mm : 1
Inductance μH : 0.47~4.7
DCR Max. mΩ : 20~130
Isat Typ. A : 1.9~6.8
Itemp Typ. A : 2.3~5.6
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF252012BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 2.5x2.0
Height Max. mm : 1.2
Inductance μH : 0.1~10
DCR Max. mΩ : 7~400
Isat Typ. A : 1.6~12
Itemp Typ. A : 1.2~12
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF322512BS NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 3.2x2.5
Height Max. mm : 1.2
Inductance μH : 0.68~4.7
DCR Max. mΩ : 23~135
Isat Typ. A : 2.9~8.1
Itemp Typ. A : 2.3~7.3
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF322520BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 3.2x2.5
Height Max. mm : 2
Inductance μH : 3.3
DCR Max. mΩ : 62.4
Isat Typ. A : 5.2
Itemp Typ. A : 4.22
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF3225BC NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 3.2x2.5
Height Max. mm : 2.5
Inductance μH : 0.042
DCR Max. mΩ : 1
Isat Typ. A : 39
Itemp Typ. A : 40
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF322530QL NEW
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMPF
LxW mm : 3.2x2.5
Height Max. mm : 3
Inductance μH : 3.3~4.7
DCR Max. mΩ : 60~78
Isat Typ. A : 2.9~3.6
Itemp Typ. A : 3.3~3.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF322533V NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 3.2x2.5
Height Max. mm : 3.3
Inductance μH : 2.2~3.3
DCR Max. mΩ : 48~57.6
Isat Typ. A : 8~8.5
Itemp Typ. A : 5.5~6.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF4012BS NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 4.0x4.0
Height Max. mm : 1.2
Inductance μH : 1~4.7
DCR Max. mΩ : 30~95
Isat Typ. A : 3.5~7
Itemp Typ. A : 2.7~5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF4020H2 NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 0.47~1.2
DCR Max. mΩ : 6.5~14
Isat Typ. A : 9.8~15
Itemp Typ. A : 8.3~13.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF7012H2 NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 7.0x6.0
Height Max. mm : 1.2
Inductance μH : 0.15~1.5
DCR Max. mΩ : 6~42
Isat Typ. A : 9~25
Itemp Typ. A : 8~16
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF7015H2 NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 7.0x6.0
Height Max. mm : 1.5
Inductance μH : 0.33~0.68
DCR Max. mΩ : 6~13.8
Isat Typ. A : 15.5~24
Itemp Typ. A : 12~16
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF7030H2 NEW
Feature :
Shield
Metal
Flat Wire
Plating
Series : CMMPF
LxW mm : 7.0x6.0
Height Max. mm : 3
Inductance μH : 0.68~3.3
DCR Max. mΩ : 4.2~18.6
Isat Typ. A : 13~28
Itemp Typ. A : 11~20
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP201208BS
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 2.0x1.2
Height Max. mm : 0.8
Inductance μH : 0.24~2.2
DCR Max. mΩ : 26.4~156
Isat Typ. A : 2.2~6
Itemp Typ. A : 1.8~4.8
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP201210BS
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 2.0x1.2
Height Max. mm : 1
Inductance μH : 0.24~2.2
DCR Max. mΩ : 25~156
Isat Typ. A : 2.4~6.1
Itemp Typ. A : 1.8~4.9
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP201608BS
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 2.0x1.6
Height Max. mm : 0.8
Inductance μH : 0.47~2.2
DCR Max. mΩ : 42~144
Isat Typ. A : 2.5~4.5
Itemp Typ. A : 1.7~4
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP201610BS
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 2.0x1.6
Height Max. mm : 1
Inductance μH : 0.47~2.2
DCR Max. mΩ : 40~132
Isat Typ. A : 2.7~5.8
Itemp Typ. A : 2~4.2
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP252010BS
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 2.5x2.0
Height Max. mm : 1
Inductance μH : 0.22~10
DCR Max. mΩ : 20~480
Isat Typ. A : 1.3~9.2
Itemp Typ. A : 1~6.3
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP252012BS
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 2.5x2.0
Height Max. mm : 1.2
Inductance μH : 0.47~10
DCR Max. mΩ : 36~432
Isat Typ. A : 1.4~6.7
Itemp Typ. A : 1.1~4.4
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP322512BS
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 3.2x2.5
Height Max. mm : 1.2
Inductance μH : 0.68~10
DCR Max. mΩ : 37.2~390
Isat Typ. A : 1.6~7.2
Itemp Typ. A : 1.1~4.2
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP3020BS
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 3.0x3.0
Height Max. mm : 2
Inductance μH : 2.2~4.7
DCR Max. mΩ : 60~120
Isat Typ. A : 2.8~4.2
Itemp Typ. A : 2~3.2
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP4010BS
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 4.0x4.0
Height Max. mm : 1
Inductance μH : 100
DCR Max. mΩ : 336
Isat Typ. A : 2
Itemp Typ. A : 1.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP4020HL
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 0.33~15
DCR Max. mΩ : 8.4~288
Isat Typ. A : 3~17.5
Itemp Typ. A : 2~10
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP4020QL
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 0.47~1
DCR Max. mΩ : 6.6~12
Isat Typ. A : 10~11.5
Itemp Typ. A : 8.5~10
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP4020HL-A
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 1~10
DCR Max. mΩ : 39~228
Isat Typ. A : 3.8~11
Itemp Typ. A : 1.9~5.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP4020HL-B
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 1~10
DCR Max. mΩ : 20.4~150
Isat Typ. A : 3.3~10.5
Itemp Typ. A : 2.2~8
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP4030HL
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 4.0x4.0
Height Max. mm : 3
Inductance μH : 0.47~22
DCR Max. mΩ : 10~252
Isat Typ. A : 3.3~17
Itemp Typ. A : 2~9.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP4030H1-B
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 4.0x4.0
Height Max. mm : 3
Inductance μH : 3.3~4.7
DCR Max. mΩ : 42~54
Isat Typ. A : 5.5~8.5
Itemp Typ. A : 4.5~5.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP5015HL-B
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 5.0x5.0
Height Max. mm : 1.5
Inductance μH : 0.12~10
DCR Max. mΩ : 3.7~159
Isat Typ. A : 3.3~30.5
Itemp Typ. A : 2.2~18.9
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP5018HL
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 5.0x5.0
Height Max. mm : 1.8
Inductance μH : 0.47
DCR Max. mΩ : 9.6
Isat Typ. A : 16
Itemp Typ. A : 10.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP5020HL
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 5.0x5.0
Height Max. mm : 2
Inductance μH : 1~6.8
DCR Max. mΩ : 16.8~108
Isat Typ. A : 5.2~12
Itemp Typ. A : 3.9~8.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP5030HL-A
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 5.0x5.0
Height Max. mm : 3
Inductance μH : 0.47~22
DCR Max. mΩ : 6.6~204
Isat Typ. A : 4.5~22
Itemp Typ. A : 2.3~14.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP6020HL
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 6.0x6.0
Height Max. mm : 2
Inductance μH : 1~6.8
DCR Max. mΩ : 15~84
Isat Typ. A : 5.2~12.5
Itemp Typ. A : 4.2~8.2
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP7018HL
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 7.0x7.0
Height Max. mm : 1.8
Inductance μH : 0.47~10
DCR Max. mΩ : 9.6~150
Isat Typ. A : 5~27
Itemp Typ. A : 3.3~10.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP7024HL-A
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 7.0x7.0
Height Max. mm : 2.4
Inductance μH : 2.2~15
DCR Max. mΩ : 30~162
Isat Typ. A : 5.5~12.5
Itemp Typ. A : 3.3~8.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP7024HL-B
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 7.0x7.0
Height Max. mm : 2.4
Inductance μH : 2.2~15
DCR Max. mΩ : 17.4~108
Isat Typ. A : 4.7~11
Itemp Typ. A : 4.3~9
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP7030HL
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 7.0x7.0
Height Max. mm : 3
Inductance μH : 0.47~47
DCR Max. mΩ : 4.8~312
Isat Typ. A : 3.3~33
Itemp Typ. A : 2.2~18
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP7030HL-A
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 7.0x7.0
Height Max. mm : 3
Inductance μH : 1~22
DCR Max. mΩ : 9~168
Isat Typ. A : 5.2~21
Itemp Typ. A : 3~13
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP7030HL-B
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 7.0x7.0
Height Max. mm : 3
Inductance μH : 1~22
DCR Max. mΩ : 7.2~120
Isat Typ. A : 4.5~18.5
Itemp Typ. A : 3.5~15
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMP7030H1-B
Feature :
Shield
Metal
Round Wire
Plating
Series : CMMP
LxW mm : 7.0x7.0
Height Max. mm : 3
Inductance μH : 3.3~6.8
DCR Max. mΩ : 21.6~36
Isat Typ. A : 9.5~14
Itemp Typ. A : 6.3~9
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP4018MH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 4.0x4.0
Height Max. mm : 1.8
Inductance μH : 4.7
DCR Max. mΩ : 126
Isat Typ. A : 4
Itemp Typ. A : 2.8
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP4020MH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 1~10
DCR Max. mΩ : 36~216
Isat Typ. A : 2.8~8
Itemp Typ. A : 2.1~5.1
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP4020HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 0.1~15
DCR Max. mΩ : 3.6~300
Isat Typ. A : 2.8~30
Itemp Typ. A : 1.9~16.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP4020LH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 0.22
DCR Max. mΩ : 6.4
Isat Typ. A : 28
Itemp Typ. A : 12
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP4030HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 4.0x4.0
Height Max. mm : 3
Inductance μH : 0.1~22
DCR Max. mΩ : 5.4~264
Isat Typ. A : 2.6~32
Itemp Typ. A : 2.2~15
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP4040HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 4.0x4.0
Height Max. mm : 4
Inductance μH : 2.2~15
DCR Max. mΩ : 25.2~228
Isat Typ. A : 2.6~7.5
Itemp Typ. A : 2.6~7
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP5015HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 5.0x5.0
Height Max. mm : 1.5
Inductance μH : 0.15~2.2
DCR Max. mΩ : 4.5~54
Isat Typ. A : 7.3~26
Itemp Typ. A : 4.5~16
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP5018HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 5.0x5.0
Height Max. mm : 1.8
Inductance μH : 0.47
DCR Max. mΩ : 9.6
Isat Typ. A : 16
Itemp Typ. A : 10.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP5020HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 5.0x5.0
Height Max. mm : 2
Inductance μH : 0.1~6.8
DCR Max. mΩ : 3~132
Isat Typ. A : 4.5~35
Itemp Typ. A : 2.9~25
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP5030HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 5.0x5.0
Height Max. mm : 3
Inductance μH : 0.33~22
DCR Max. mΩ : 4.8~220
Isat Typ. A : 2.8~25
Itemp Typ. A : 2.2~15
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP5040HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 5.0x5.0
Height Max. mm : 4
Inductance μH : 3.3~22
DCR Max. mΩ : 32.4~180
Isat Typ. A : 3.1~10
Itemp Typ. A : 2.7~8
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP6012HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 6.0x6.0
Height Max. mm : 1.2
Inductance μH : 0.1~10
DCR Max. mΩ : 5.4~312
Isat Typ. A : 3~32
Itemp Typ. A : 1.9~14
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP6015HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 6.0x6.0
Height Max. mm : 1.5
Inductance μH : 1~10
DCR Max. mΩ : 30~228
Isat Typ. A : 3.1~10.5
Itemp Typ. A : 2.2~6.2
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP6020LH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 6.0x6.0
Height Max. mm : 2
Inductance μH : 1~10
DCR Max. mΩ : 18.6~150
Isat Typ. A : 4.5~16
Itemp Typ. A : 2.8~7.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP6030LH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 6.0x6.0
Height Max. mm : 3
Inductance μH : 2.2~3.3
DCR Max. mΩ : 21~30
Isat Typ. A : 10.5~14
Itemp Typ. A : 7.5~8
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP6015HL-N
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 6.0x6.0
Height Max. mm : 1.5
Inductance μH : 0.82~10
DCR Max. mΩ : 14.4~228
Isat Typ. A : 4~12
Itemp Typ. A : 2.4~9.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP6018LH-N
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 6.0x6.0
Height Max. mm : 1.8
Inductance μH : 0.15~10
DCR Max. mΩ : 3.36~192
Isat Typ. A : 5~45
Itemp Typ. A : 2.5~18
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP6024LH-N
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 6.0x6.0
Height Max. mm : 2.4
Inductance μH : 0.1~10
DCR Max. mΩ : 2.4~96
Isat Typ. A : 6~65
Itemp Typ. A : 3.7~23.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP6030LH-N
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 6.0x6.0
Height Max. mm : 3
Inductance μH : 0.1~33
DCR Max. mΩ : 1.8~240
Isat Typ. A : 3.7~67
Itemp Typ. A : 2.7~24
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP6030HL-N
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 6.0x6.0
Height Max. mm : 3
Inductance μH : 1~47
DCR Max. mΩ : 7.5~360
Isat Typ. A : 2~18
Itemp Typ. A : 1.8~14
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP6040HL-N
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 6.0x6.0
Height Max. mm : 4
Inductance μH : 2.2~33
DCR Max. mΩ : 14.4~156
Isat Typ. A : 3.3~13.5
Itemp Typ. A : 3.3~8.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP6050LH-N
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 6.0x6.0
Height Max. mm : 5
Inductance μH : 0.68~0.82
DCR Max. mΩ : 4.8~7.2
Isat Typ. A : 26~27
Itemp Typ. A : 14.5~14.7
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP6050HL-N
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 6.0x6.0
Height Max. mm : 5
Inductance μH : 0.68~68
DCR Max. mΩ : 4.6~312
Isat Typ. A : 2.5~28.5
Itemp Typ. A : 2.5~21
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP8040HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 8.0x8.0
Height Max. mm : 5
Inductance μH : 0.22
DCR Max. mΩ : 1.2
Isat Typ. A : 60
Itemp Typ. A : 55
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP8050HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 8.0x8.0
Height Max. mm : 5
Inductance μH : 0.5~47
DCR Max. mΩ : 5.4~204
Isat Typ. A : 4.5~32
Itemp Typ. A : 3.3~19.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP10030HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 10.0x10.0
Height Max. mm : 3
Inductance μH : 0.15~22
DCR Max. mΩ : 0.9~108
Isat Typ. A : 5.5~65
Itemp Typ. A : 5.5~36
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP10030LH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 10.0x10.0
Height Max. mm : 3
Inductance μH : 0.68~10
DCR Max. mΩ : 4.8~72
Isat Typ. A : 10~42
Itemp Typ. A : 4.8~21
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP10040LL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 10.0x10.0
Height Max. mm : 4
Inductance μH : 0.15~56
DCR Max. mΩ : 0.6~240
Isat Typ. A : 4.5~80
Itemp Typ. A : 3.8~34
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP10040LH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 10.0x10.0
Height Max. mm : 4
Inductance μH : 2.2~22
DCR Max. mΩ : 10.8~66
Isat Typ. A : 8.5~28
Itemp Typ. A : 5.5~14
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP10055LH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 10.0x10.0
Height Max. mm : 5.5
Inductance μH : 1~100
DCR Max. mΩ : 3.3~252
Isat Typ. A : 4.2~50
Itemp Typ. A : 4~24
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP10055HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 10.0x10.0
Height Max. mm : 5.5
Inductance μH : 1
DCR Max. mΩ : 2.9
Isat Typ. A : 33
Itemp Typ. A : 28
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP10055LL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 10.0x10.0
Height Max. mm : 5.5
Inductance μH : 22
DCR Max. mΩ : 54
Isat Typ. A : 8.5
Itemp Typ. A : 6.3
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP10075LL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 10.0x10.0
Height Max. mm : 7.5
Inductance μH : 4.7~22
DCR Max. mΩ : 10.2~50.4
Isat Typ. A : 9~22
Itemp Typ. A : 8~20
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP12055LH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 12.0x12.0
Height Max. mm : 5.5
Inductance μH : 0.68~22
DCR Max. mΩ : 1.8~48
Isat Typ. A : 10~60
Itemp Typ. A : 8.5~30
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP12070LH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 12.0x12.0
Height Max. mm : 7
Inductance μH : 0.47~33
DCR Max. mΩ : 1.4~58
Isat Typ. A : 11~70
Itemp Typ. A : 8~37.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP12070LL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 12.0x12.0
Height Max. mm : 7
Inductance μH : 3.3~5.6
DCR Max. mΩ : 6~10.2
Isat Typ. A : 22.5~32
Itemp Typ. A : 16.5~23
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP12090LH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 12.0x12.0
Height Max. mm : 9
Inductance μH : 1~47
DCR Max. mΩ : 2.5~84
Isat Typ. A : 8~50
Itemp Typ. A : 7.5~38
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP12100LL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 12.0x12.0
Height Max. mm : 10
Inductance μH : 2.2
DCR Max. mΩ : 2.8
Isat Typ. A : 34
Itemp Typ. A : 52
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP13050HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 13.0x13.0
Height Max. mm : 5
Inductance μH : 1.5~2.2
DCR Max. mΩ : 4~5
Isat Typ. A : 32~42
Itemp Typ. A : 22~30.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP13055LH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 13.0x13.0
Height Max. mm : 5.5
Inductance μH : 0.68~15
DCR Max. mΩ : 1.8~36
Isat Typ. A : 13~60
Itemp Typ. A : 9.5~32
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP13055LL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 13.0x13.0
Height Max. mm : 5.5
Inductance μH : 10~33
DCR Max. mΩ : 24~54
Isat Typ. A : 8.3~13.5
Itemp Typ. A : 6.5~10
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP13060LL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 13.0x13.0
Height Max. mm : 6
Inductance μH : 3.3
DCR Max. mΩ : 6.5
Isat Typ. A : 36
Itemp Typ. A : 25
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP13065LL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 13.0x13.0
Height Max. mm : 6.5
Inductance μH : 2.8~8.2
DCR Max. mΩ : 3.7~14
Isat Typ. A : 17~35
Itemp Typ. A : 14.5~26
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP13070LH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 13.0x13.0
Height Max. mm : 7
Inductance μH : 0.47~47
DCR Max. mΩ : 1.4~78
Isat Typ. A : 10~70
Itemp Typ. A : 7~37.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP13070LL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 13.0x13.0
Height Max. mm : 7
Inductance μH : 6.8~56
DCR Max. mΩ : 10.8~102
Isat Typ. A : 7~24
Itemp Typ. A : 6~22
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP13090LH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 13.0x13.0
Height Max. mm : 9
Inductance μH : 1~47
DCR Max. mΩ : 1.8~73.2
Isat Typ. A : 8.5~55
Itemp Typ. A : 7.5~38
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP13090LL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 13.0x13.0
Height Max. mm : 9
Inductance μH : 1~3.3
DCR Max. mΩ : 1~4.8
Isat Typ. A : 30~40
Itemp Typ. A : 29~34
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP151508SH
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 15.0x15.0
Height Max. mm : 8.5
Inductance μH : 22
DCR Max. mΩ : 45
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP17040HC
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 17.0x17.0
Height Max. mm : 4
Inductance μH : 4.7
DCR Max. mΩ : 10
Isat Typ. A : 18
Itemp Typ. A : 23.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP17040HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 17.0x17.0
Height Max. mm : 4
Inductance μH : 10
DCR Max. mΩ : 27.6
Isat Typ. A : 18
Itemp Typ. A : 11
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP17070QL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 17.0x17.0
Height Max. mm : 7
Inductance μH : 0.33
DCR Max. mΩ : 0.6
Isat Typ. A : 70
Itemp Typ. A : 75.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP17070HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 17.0x17.0
Height Max. mm : 7
Inductance μH : 0.47~100
DCR Max. mΩ : 0.9~168
Isat Typ. A : 7.5~85
Itemp Typ. A : 6.5~55
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP17075HL
Feature :
Shield
Metal
Round Wire
Pin
Series : CMMPP
LxW mm : 17.0x17.0
Height Max. mm : 7.5
Inductance μH : 10
DCR Max. mΩ : 11.4
Isat Typ. A : 23
Itemp Typ. A : 22
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP4030HL-SC
Feature :
Shield
Metal
Round Wire
4 Pin
Series : CMMPP-SC
LxW mm : 4.0x4.0
Height Max. mm : 3.3
Inductance μH : 10~22
DCR Max. mΩ : 154~264
Isat Typ. A : 2.6~3.7
Itemp Typ. A : 2.2~2.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP7030HL-SC
Feature :
Shield
Metal
Round Wire
4 Pin
Series : CMMPP-SC
LxW mm : 7.0x7.0
Height Max. mm : 3.3
Inductance μH : 0.47~33
DCR Max. mΩ : 4.8~240
Isat Typ. A : 3.5~32
Itemp Typ. A : 2.7~15.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP10040HL-SC
Feature :
Shield
Metal
Round Wire
4 Pin
Series : CMMPP-SC
LxW mm : 10.0x10.0
Height Max. mm : 4.3
Inductance μH : 10~33
DCR Max. mΩ : 36~103
Isat Typ. A : 5~10.5
Itemp Typ. A : 4.9~7
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP6030HL-N-WP
Feature :
Shield
Metal
Round Wire
Wire pin
Series : CMMPP-WP
LxW mm : 6.0x6.0
Height Max. mm : 3
Inductance μH : 0.22
DCR Max. mΩ : 2
Isat Typ. A : 50
Itemp Typ. A : 35
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPP10075LL-WP
Feature :
Shield
Metal
Round Wire
Wire pin
Series : CMMPP-WP
LxW mm : 10.0x10.0
Height Max. mm : 7.5
Inductance μH : 0.5~1
DCR Max. mΩ : 1.1~1.9
Isat Typ. A : 32~54
Itemp Typ. A : 22~27
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF4020QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 4.0x4.0
Height Max. mm : 2.1
Inductance μH : 0.11~2.2
DCR Max. mΩ : 3.6~36
Isat Typ. A : 7.2~33
Itemp Typ. A : 5~25
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF4030QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 4.0x4.0
Height Max. mm : 3.1
Inductance μH : 1.5~4.7
DCR Max. mΩ : 19.8~43.2
Isat Typ. A : 5.8~11.5
Itemp Typ. A : 4.6~7.2
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF4040QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 4.0x4.0
Height Max. mm : 4.1
Inductance μH : 1.5~6.8
DCR Max. mΩ : 13.2~54
Isat Typ. A : 4.8~11
Itemp Typ. A : 4.6~12
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF5030QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 5.0x5.0
Height Max. mm : 3.1
Inductance μH : 0.15~3.3
DCR Max. mΩ : 2.4~24
Isat Typ. A : 9.5~40
Itemp Typ. A : 5.7~20
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF5030H2-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 5.0x5.0
Height Max. mm : 3.1
Inductance μH : 1
DCR Max. mΩ : 7.8
Isat Typ. A : 15.5
Itemp Typ. A : 10.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF5050QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 5.0x5.0
Height Max. mm : 5.1
Inductance μH : 2.2~22
DCR Max. mΩ : 9.6~108
Isat Typ. A : 4.3~11
Itemp Typ. A : 3.4~13
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF6030QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 6.0x6.0
Height Max. mm : 3.1
Inductance μH : 0.22~3.3
DCR Max. mΩ : 1.8~21
Isat Typ. A : 11.5~46
Itemp Typ. A : 6.8~32
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF6060QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 6.0x6.0
Height Max. mm : 6.1
Inductance μH : 0.68~22
DCR Max. mΩ : 3.36~60
Isat Typ. A : 5.6~35
Itemp Typ. A : 5~21
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF7030H2-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 7.0x7.0
Height Max. mm : 3.1
Inductance μH : 0.33~2.2
DCR Max. mΩ : 1.8~15.6
Isat Typ. A : 15.5~50
Itemp Typ. A : 12~30
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF7070QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 7.0x7.0
Height Max. mm : 7
Inductance μH : 3.3
DCR Max. mΩ : 10.56
Isat Typ. A : 19.5
Itemp Typ. A : 15.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF10060QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 10.0x10.0
Height Max. mm : 6
Inductance μH : 0.68~4.7
DCR Max. mΩ : 1.4~8.4
Isat Typ. A : 22~52
Itemp Typ. A : 17~36
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF10100QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 10.0x10.0
Height Max. mm : 10
Inductance μH : 0.22~15
DCR Max. mΩ : 0.5~18.6
Isat Typ. A : 13~99
Itemp Typ. A : 14.5~55.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF13022H2-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 13.0x13.0
Height Max. mm : 2.2
Inductance μH : 1.5~2.2
DCR Max. mΩ : 9.6~14.4
Isat Typ. A : 18~25
Itemp Typ. A : 16~20
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF13030H2-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 13.0x13.0
Height Max. mm : 3.1
Inductance μH : 0.47~2.2
DCR Max. mΩ : 1.3~6.6
Isat Typ. A : 24~52
Itemp Typ. A : 17.5~44
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF15080QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 15.0x15.0
Height Max. mm : 8
Inductance μH : 0.82~8.2
DCR Max. mΩ : 0.78~6.6
Isat Typ. A : 31.5~86
Itemp Typ. A : 27~60.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMMPF15100QL-SB
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CMMPF-SB
LxW mm : 15.0x15.0
Height Max. mm : 11
Inductance μH : 4.7~33
DCR Max. mΩ : 3~18.6
Isat Typ. A : 17~50
Itemp Typ. A : 22~35
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDP3020NF
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : CDP
LxW mm : 3.0x3.0
Height Max. mm : 2
Inductance μH : 3.3
DCR Max. mΩ : 110
Isat Typ. A : 1.7
Itemp Typ. A : 2
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDP4020NF
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : CDP
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 1~10
DCR Max. mΩ : 30~216
Isat Typ. A : 1.9~4.8
Itemp Typ. A : 1.6~3.6
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDP6045NF
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : CDP
LxW mm : 6.0x6.0
Height Max. mm : 4.6
Inductance μH : 1~220
DCR Max. mΩ : 15.6~960
Isat Typ. A : 1~10
Itemp Typ. A : 1~7.8
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDP8040NF
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : CDP
LxW mm : 8.0x8.0
Height Max. mm : 4
Inductance μH : 6.8~680
DCR Max. mΩ : 30~2365
Isat Typ. A : 0.64~5.6
Itemp Typ. A : 0.62~5.9
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDP10040NF
Feature :
Semi-Shield
Ferrite
Round Wire
Pin
Series : CDP
LxW mm : 10.0x10.0
Height Max. mm : 4
Inductance μH : 22
DCR Max. mΩ : 73
Isat Typ. A : 0
Itemp Typ. A : 0
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS201610NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 2.0x1.6
Height Max. mm : 1
Inductance μH : 0.24~10
DCR Max. mΩ : 40~1000
Isat Typ. A : 0.7~4.1
Itemp Typ. A : 0.55~3.1
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS252010NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 2.5x2.0
Height Max. mm : 1
Inductance μH : 1~22
DCR Max. mΩ : 120.9~2206.8
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS252012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 2.5x2.0
Height Max. mm : 1.2
Inductance μH : 0.47~22
DCR Max. mΩ : 79.3~2371.2
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS3010NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 3.0x3.0
Height Max. mm : 1
Inductance μH : 1~56
DCR Max. mΩ : 84.5~2784
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS3012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 3.0x3.0
Height Max. mm : 1.2
Inductance μH : 0.82~68
DCR Max. mΩ : 39~2004
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS3015NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 3.0x3.0
Height Max. mm : 1.5
Inductance μH : 1~100
DCR Max. mΩ : 50.7~3600
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS322515NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 3.2x2.5
Height Max. mm : 1.75
Inductance μH : 2.2~6.8
DCR Max. mΩ : 120~240
Isat Typ. A : 0.9~1.7
Itemp Typ. A : 1.2~1.85
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS4012NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 4.0x4.0
Height Max. mm : 1.2
Inductance μH : 0.82~100
DCR Max. mΩ : 65~2652
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS4018NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 4.0x4.0
Height Max. mm : 1.8
Inductance μH : 0.5~330
DCR Max. mΩ : 27.3~7800
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS4020NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 4.0x4.0
Height Max. mm : 2
Inductance μH : 0.47~100
DCR Max. mΩ : 23.4~1860
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS4030NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 4.0x4.0
Height Max. mm : 3
Inductance μH : 0.47~470
DCR Max. mΩ : 14.3~6600
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS5020NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 5.0x5.0
Height Max. mm : 2.1~2.2
Inductance μH : 1~100
DCR Max. mΩ : 26~1320
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS5040NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 5.0x5.0
Height Max. mm : 4
Inductance μH : 1~2200
DCR Max. mΩ : 15.6~15600
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS6020NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 6.0x6.0
Height Max. mm : 2
Inductance μH : 0.68~47
DCR Max. mΩ : 22.1~516
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS6028NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 6.0x6.0
Height Max. mm : 2.8
Inductance μH : 1~1000
DCR Max. mΩ : 15.6~7540
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS6045NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 6.0x6.0
Height Max. mm : 4.7
Inductance μH : 1~1500
DCR Max. mΩ : 14.3~7800
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDSS8040NH
Feature :
Semi-Shield
Ferrite
Round Wire
Plating
Series : CDSS
LxW mm : 8.0x8.0
Height Max. mm : 4.2
Inductance μH : 0.82~1000
DCR Max. mΩ : 10.4~3360
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSB7035NH
Feature :
Shield
Ferrite
Round Wire
Base
Series : CSSB
LxW mm : 7.0x7.0
Height Max. mm : 3.5
Inductance μH : 47
DCR Max. mΩ : 288
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSB7045NH
Feature :
Shield
Ferrite
Round Wire
Base
Series : CSSB
LxW mm : 7.0x7.0
Height Max. mm : 4.5
Inductance μH : 1~150
DCR Max. mΩ : 8.4~600
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSB7060NH
Feature :
Shield
Ferrite
Round Wire
Base
Series : CSSB
LxW mm : 7.0x7.0
Height Max. mm : 6
Inductance μH : 10
DCR Max. mΩ : 31.2
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSB12038NH
Feature :
Shield
Ferrite
Round Wire
Base
Series : CSSB
LxW mm : 12.0x12.0
Height Max. mm : 3.8
Inductance μH : 33
DCR Max. mΩ : 141.6
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSB12045NH
Feature :
Shield
Ferrite
Round Wire
Base
Series : CSSB
LxW mm : 12.0x12.0
Height Max. mm : 4.5
Inductance μH : 15~100
DCR Max. mΩ : 57.6~354
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSB12048NH
Feature :
Shield
Ferrite
Round Wire
Base
Series : CSSB
LxW mm : 12.0x12.0
Height Max. mm : 4.8
Inductance μH : 22~150
DCR Max. mΩ : 66~403.2
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSB12055NH
Feature :
Shield
Ferrite
Round Wire
Base
Series : CSSB
LxW mm : 12.0x12.0
Height Max. mm : 5.5
Inductance μH : 10
DCR Max. mΩ : 31.2
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSB12060NH
Feature :
Shield
Ferrite
Round Wire
Base
Series : CSSB
LxW mm : 12.0x12.0
Height Max. mm : 6
Inductance μH : 22~100
DCR Max. mΩ : 36~198
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSB12080NH
Feature :
Shield
Ferrite
Round Wire
Base
Series : CSSB
LxW mm : 12.0x12.0
Height Max. mm : 8
Inductance μH : 3.9~470
DCR Max. mΩ : 18.48~576
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP5018NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 5.0x5.0
Height Max. mm : 1.8
Inductance μH : 1~6.8
DCR Max. mΩ : 36~155
Isat Typ. A : 2.1~5.4
Itemp Typ. A : 1.8~4.3
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP5020NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 5.0x5.0
Height Max. mm : 2
Inductance μH : 1~100
DCR Max. mΩ : 35~1857
Isat Typ. A : 0.57~5.4
Itemp Typ. A : 0.51~4.4
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP5030NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 5.0x5.0
Height Max. mm : 3
Inductance μH : 1~100
DCR Max. mΩ : 25.2~984
Isat Typ. A : 0.62~6.2
Itemp Typ. A : 0.68~5.4
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP5040NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 5.0x5.0
Height Max. mm : 4
Inductance μH : 1~8.2
DCR Max. mΩ : 27.6~72
Isat Typ. A : 2.6~6.7
Itemp Typ. A : 2.4~5.4
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP6028NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 6.0x6.0
Height Max. mm : 2.8
Inductance μH : 1~220
DCR Max. mΩ : 18~1752
Isat Typ. A : 0.42~6.3
Itemp Typ. A : 0.48~6.8
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP6045NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 6.0x6.0
Height Max. mm : 4.5
Inductance μH : 0.82~100
DCR Max. mΩ : 16.3~408
Isat Typ. A : 0.5~8.8
Itemp Typ. A : 0.64~8.4
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP7032NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 7.0x7.0
Height Max. mm : 3.2
Inductance μH : 1~100
DCR Max. mΩ : 18~525
Isat Typ. A : 0.8~6.3
Itemp Typ. A : 1.3~6.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP7040NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 7.0x7.0
Height Max. mm : 4
Inductance μH : 22~220
DCR Max. mΩ : 90~710
Isat Typ. A : 0.6~1.9
Itemp Typ. A : 0.78~2.4
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP7045NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 7.0x7.0
Height Max. mm : 4.5
Inductance μH : 1~1000
DCR Max. mΩ : 17~3630
Isat Typ. A : 0.3~9.3
Itemp Typ. A : 0.44~8.6
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP7060NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 7.0x7.0
Height Max. mm : 6
Inductance μH : 3.3~33
DCR Max. mΩ : 25.2~172
Isat Typ. A : 2.45~7.4
Itemp Typ. A : 2.3~7.3
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP8045NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 8.0x8.0
Height Max. mm : 4.5
Inductance μH : 1~1000
DCR Max. mΩ : 15.6~3240
Isat Typ. A : 0.41~12.5
Itemp Typ. A : 0.48~9.7
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP10040NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 10.0x10.0
Height Max. mm : 4
Inductance μH : 6.8~120
DCR Max. mΩ : 32.4~672
Isat Typ. A : 1~5.3
Itemp Typ. A : 1.45~5.8
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP10048NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 10.0x10.0
Height Max. mm : 4.8
Inductance μH : 1~1000
DCR Max. mΩ : 14.4~3024
Isat Typ. A : 0.6~14.5
Itemp Typ. A : 1~11
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP10050NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 10.0x10.0
Height Max. mm : 5
Inductance μH : 82
DCR Max. mΩ : 150
Isat Typ. A : 1.7
Itemp Typ. A : 2.1
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP10060NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 10.0x10.0
Height Max. mm : 6
Inductance μH : 10~330
DCR Max. mΩ : 36~732
Isat Typ. A : 1.1~6
Itemp Typ. A : 1.18~6
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP12060NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 12.0x12.0
Height Max. mm : 6
Inductance μH : 1.5~560
DCR Max. mΩ : 12.6~990
Isat Typ. A : 1.05~16.4
Itemp Typ. A : 1.2~12.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP12080NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 12.0x12.0
Height Max. mm : 8
Inductance μH : 1~1000
DCR Max. mΩ : 10.1~1620
Isat Typ. A : 1~20
Itemp Typ. A : 1.3~17
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSP12085NF
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSSP
LxW mm : 12.0x12.0
Height Max. mm : 8.5
Inductance μH : 22~33
DCR Max. mΩ : 43.2~54
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSPC8045NH
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSPC
LxW mm : 8.0x8.0
Height Max. mm : 4.5
Inductance μH : 1.8~22
DCR Max. mΩ : 18~90
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF6030MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 7.0x7.0
Height Max. mm : 3.3
Inductance μH : 0.1~2.2
DCR Max. mΩ : 0.9~12.4
Isat Typ. A : 9~52
Itemp Typ. A : 7.8~23
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF6040MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 7.0x7.0
Height Max. mm : 4
Inductance μH : 0.24~6.5
DCR Max. mΩ : 1.2~36.2
Isat Typ. A : 6.5~30
Itemp Typ. A : 4.6~21
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF6050MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 7.0x7.0
Height Max. mm : 5
Inductance μH : 0.25~13
DCR Max. mΩ : 1~44.5
Isat Typ. A : 5~35
Itemp Typ. A : 3.1~21
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF10040MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 10.0x10.0
Height Max. mm : 4.3
Inductance μH : 0.18~6.8
DCR Max. mΩ : 0.7~23.6
Isat Typ. A : 9.5~60
Itemp Typ. A : 5.6~30
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF10030MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 10.0x10.0
Height Max. mm : 3
Inductance μH : 0.2~2.5
DCR Max. mΩ : 0.25~13.3
Isat Typ. A : 12~50
Itemp Typ. A : 9~22
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF10050MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 10.0x10.0
Height Max. mm : 5
Inductance μH : 0.18~18
DCR Max. mΩ : 0.55~39
Isat Typ. A : 6.2~55
Itemp Typ. A : 5~32
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF10060MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 10.0x10.0
Height Max. mm : 5
Inductance μH : 0.38~27
DCR Max. mΩ : 0.77~48.5
Isat Typ. A : 5.8~54
Itemp Typ. A : 1~25
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF12035MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 12.0x12.0
Height Max. mm : 3.5
Inductance μH : 0.25~5.6
DCR Max. mΩ : 0.9~21.9
Isat Typ. A : 11~50
Itemp Typ. A : 6.8~147
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF12050MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 12.0x12.0
Height Max. mm : 5
Inductance μH : 0.19~22
DCR Max. mΩ : 0.55~39.6
Isat Typ. A : 6.5~70
Itemp Typ. A : 4.7~32
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF12065MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 12.0x12.0
Height Max. mm : 6.5
Inductance μH : 0.2~47
DCR Max. mΩ : 0.37~62.7
Isat Typ. A : 5~70
Itemp Typ. A : 4~36
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF12075MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 12.0x12.0
Height Max. mm : 7.6
Inductance μH : 0.6~56
DCR Max. mΩ : 0.55~69
Isat Typ. A : 5.7~60
Itemp Typ. A : 4~36
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF16070MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 16.0x16.0
Height Max. mm : 7
Inductance μH : 1~22
DCR Max. mΩ : 1.05~23.5
Isat Typ. A : 10.5~45.5
Itemp Typ. A : 8.5~33
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF18090MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 18.0x18.0
Height Max. mm : 9.2
Inductance μH : 0.82~56
DCR Max. mΩ : 0.62~41.2
Isat Typ. A : 8.5~70
Itemp Typ. A : 6.5~41.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSSMF220120MH
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CSSMF
LxW mm : 20mm over
Height Max. mm : 12.4
Inductance μH : 3.3~100
DCR Max. mΩ : 1.2~40.8
Isat Typ. A : 9~50
Itemp Typ. A : 6.1~32
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CPQ1590
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CPQ
LxW mm : 15.0x15.0
Height Max. mm : 10.16
Inductance μH : 0.3~1.5
DCR Max. mΩ : 0.72~1.15
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CPQ2009
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CPQ
LxW mm : 20mm over
Height Max. mm : 8.64
Inductance μH : 0.3~2
DCR Max. mΩ : 0.74
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CPQ2010
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CPQ
LxW mm : 20.0x20.0
Height Max. mm : 9.4
Inductance μH : 0.3~2
DCR Max. mΩ : 1
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CPQ2011
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CPQ
LxW mm : 20.0x20.0
Height Max. mm : 10.67
Inductance μH : 0.5~2
DCR Max. mΩ : 1.34
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CPQ2012
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CPQ
LxW mm : 20.0x20.0
Height Max. mm : 11.94
Inductance μH : 0.6~2.2
DCR Max. mΩ : 1.6
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CPQ2013
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CPQ
LxW mm : 20.0x20.0
Height Max. mm : 12.95
Inductance μH : 0.68~4.7
DCR Max. mΩ : 1.82
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CPQ2014
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CPQ
LxW mm : 20.0x20.0
Height Max. mm : 13.97
Inductance μH : 0.8~4
DCR Max. mΩ : 2.15
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CPQ2915LD
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CPQ
LxW mm : 20mm over
Height Max. mm : 15.36
Inductance μH : 1.5~33
DCR Max. mΩ : 1.65
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CPQ2915HC
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CPQ
LxW mm : 20mm over
Height Max. mm : 15.36
Inductance μH : 2.2~33
DCR Max. mΩ : 2.05
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CPQ2918HC
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CPQ
LxW mm : 20mm over
Height Max. mm : 17.78
Inductance μH : 3.3~33
DCR Max. mΩ : 2.86
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CTSCB1524
Feature :
Shield
Ferrite
Round Wire
Radial
Series : CTSCB
LxW mm : 15.0x15.0
Height Max. mm : 25
Inductance μH : 4.7~22
DCR Max. mΩ : 13~54
Isat Typ. A : 5.5~13
Itemp Typ. A : 5.5~13
Inquiry sms

Coupled Power Inductors

Catalog	Automotive Grade	Features	Series	Part Number	LxW mm	Height Max. mm	Inductance μH	DCR Max. mΩ	Isat Typ. A	Itemp Typ. A	Inquiry
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	SMMPP	CMI-SMMPP10080MH	10.0x10.0	8	6.8~15	36~68	11~17.5	6.5~10.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Plating	SMMP	CMI-SMMP10080HL	10.0x10.0	8	10~22	36~84	8.5~11	6.5~9.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	SSBD	CMI-SSBD7060NF	7.0x7.0	6	15	85	3	2.3	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Base	SSBD	CMI-SSBD10050NF	10.0x10.0	5	15~22	110~180			sms
picture_as_pdf	directions_car	Shield Metal Round Wire Base	SSBD	CMI-SSBD12080NF	12.0x12.0	8	10~47	45.5~117			sms
picture_as_pdf	directions_car	Shield Metal Round Wire 4 Pin	SSBD-SC	CMI-SSBD10050NF-SC	10.0x10.0	5.2	15~22	110~180			sms

directions_car picture_as_pdf

Part Number
CMI-SMMPP10080MH
Feature :
Shield
Metal
Round Wire
Pin
Series : SMMPP
LxW mm : 10.0x10.0
Height Max. mm : 8
Inductance μH : 6.8~15
DCR Max. mΩ : 36~68
Isat Typ. A : 11~17.5
Itemp Typ. A : 6.5~10.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-SMMP10080HL
Feature :
Shield
Metal
Round Wire
Plating
Series : SMMP
LxW mm : 10.0x10.0
Height Max. mm : 8
Inductance μH : 10~22
DCR Max. mΩ : 36~84
Isat Typ. A : 8.5~11
Itemp Typ. A : 6.5~9.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-SSBD7060NF
Feature :
Shield
Metal
Round Wire
Pin
Series : SSBD
LxW mm : 7.0x7.0
Height Max. mm : 6
Inductance μH : 15
DCR Max. mΩ : 85
Isat Typ. A : 3
Itemp Typ. A : 2.3
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-SSBD10050NF
Feature :
Shield
Metal
Round Wire
Base
Series : SSBD
LxW mm : 10.0x10.0
Height Max. mm : 5
Inductance μH : 15~22
DCR Max. mΩ : 110~180
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-SSBD12080NF
Feature :
Shield
Metal
Round Wire
Base
Series : SSBD
LxW mm : 12.0x12.0
Height Max. mm : 8
Inductance μH : 10~47
DCR Max. mΩ : 45.5~117
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-SSBD10050NF-SC
Feature :
Shield
Metal
Round Wire
4 Pin
Series : SSBD-SC
LxW mm : 10.0x10.0
Height Max. mm : 5.2
Inductance μH : 15~22
DCR Max. mΩ : 110~180
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

Inductors for Class D Amplifier

Catalog	Automotive Grade	Features	Series	Part Number	LxW mm	Height Max. mm	Inductance μH	DCR Max. mΩ	Isat Typ. A	Itemp Typ. A	Inquiry
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Base	CDAD(2in1)	CMI-CDAD0910H	10.0x9.0	10.5	6.8~22	19~45	3.3~7.8	3.5~5	sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Base	CDAD(2in1)	CMI-CDAD1010H	13.0x10.0	10.5	3.3~22	11~38	4.3~12	3~5.1	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	TMMPP(2in1)	CMI-TMMPP7075QL	7.0x6.0	7.8	1~15	8.4~90	4.7~15	4.5~15	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	TMMPP(2in1)	CMI-TMMPP7075HL	7.0x6.0	7.8	1~22	6.5~120	4.3~19.5	3.5~16	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	TMMPP(2in1)	CMI-TMMPP09120HL	9.0x10.0	12	1~22	4~60	8.5~50	7~20	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Pin	TMMPP(2in1)	CMI-TMMPP13120HL	13.0x10.0	11.5	15~22	36~42	10~11.5	8.5~10	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Base	TMMPB(2in1)	CMI-TMMPB10080MH	10.0x8.0	8.5	10~22	66~94.8	4.5~9	4~6.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Base	TMMPB(2in1)	CMI-TMMPB09120HL	11x9	12.5	10~22	48~66	9~11	6.5~8.5	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Base	TMMPB(2in1)	CMI-TMMPB11120HL	11x11	12.5	10~22	42~60	9.5~12.5	7~9	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Base	TMMPB(2in1)	CMI-TMMPB13120HL	13.0x10.0	12.5	15~22	42~54	10~11.5	8.5~10	sms
picture_as_pdf	directions_car	Shield Metal Round Wire Base	FMMPB(4in1)	CMI-FMMPB25080MH	20mm over	8.5	10~22	60~90	5~10	5.8~7.5	sms

directions_car picture_as_pdf

Part Number
CMI-CDAD0910H
Feature :
Shield
Ferrite
Flat Wire
Base
Series : CDAD(2in1)
LxW mm : 10.0x9.0
Height Max. mm : 10.5
Inductance μH : 6.8~22
DCR Max. mΩ : 19~45
Isat Typ. A : 3.3~7.8
Itemp Typ. A : 3.5~5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CDAD1010H
Feature :
Shield
Ferrite
Flat Wire
Base
Series : CDAD(2in1)
LxW mm : 13.0x10.0
Height Max. mm : 10.5
Inductance μH : 3.3~22
DCR Max. mΩ : 11~38
Isat Typ. A : 4.3~12
Itemp Typ. A : 3~5.1
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-TMMPP7075QL
Feature :
Shield
Metal
Round Wire
Pin
Series : TMMPP(2in1)
LxW mm : 7.0x6.0
Height Max. mm : 7.8
Inductance μH : 1~15
DCR Max. mΩ : 8.4~90
Isat Typ. A : 4.7~15
Itemp Typ. A : 4.5~15
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-TMMPP7075HL
Feature :
Shield
Metal
Round Wire
Pin
Series : TMMPP(2in1)
LxW mm : 7.0x6.0
Height Max. mm : 7.8
Inductance μH : 1~22
DCR Max. mΩ : 6.5~120
Isat Typ. A : 4.3~19.5
Itemp Typ. A : 3.5~16
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-TMMPP09120HL
Feature :
Shield
Metal
Round Wire
Pin
Series : TMMPP(2in1)
LxW mm : 9.0x10.0
Height Max. mm : 12
Inductance μH : 1~22
DCR Max. mΩ : 4~60
Isat Typ. A : 8.5~50
Itemp Typ. A : 7~20
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-TMMPP13120HL
Feature :
Shield
Metal
Round Wire
Pin
Series : TMMPP(2in1)
LxW mm : 13.0x10.0
Height Max. mm : 11.5
Inductance μH : 15~22
DCR Max. mΩ : 36~42
Isat Typ. A : 10~11.5
Itemp Typ. A : 8.5~10
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-TMMPB10080MH
Feature :
Shield
Metal
Round Wire
Base
Series : TMMPB(2in1)
LxW mm : 10.0x8.0
Height Max. mm : 8.5
Inductance μH : 10~22
DCR Max. mΩ : 66~94.8
Isat Typ. A : 4.5~9
Itemp Typ. A : 4~6.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-TMMPB09120HL
Feature :
Shield
Metal
Round Wire
Base
Series : TMMPB(2in1)
LxW mm : 11x9
Height Max. mm : 12.5
Inductance μH : 10~22
DCR Max. mΩ : 48~66
Isat Typ. A : 9~11
Itemp Typ. A : 6.5~8.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-TMMPB11120HL
Feature :
Shield
Metal
Round Wire
Base
Series : TMMPB(2in1)
LxW mm : 11x11
Height Max. mm : 12.5
Inductance μH : 10~22
DCR Max. mΩ : 42~60
Isat Typ. A : 9.5~12.5
Itemp Typ. A : 7~9
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-TMMPB13120HL
Feature :
Shield
Metal
Round Wire
Base
Series : TMMPB(2in1)
LxW mm : 13.0x10.0
Height Max. mm : 12.5
Inductance μH : 15~22
DCR Max. mΩ : 42~54
Isat Typ. A : 10~11.5
Itemp Typ. A : 8.5~10
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-FMMPB25080MH
Feature :
Shield
Metal
Round Wire
Base
Series : FMMPB(4in1)
LxW mm : 20mm over
Height Max. mm : 8.5
Inductance μH : 10~22
DCR Max. mΩ : 60~90
Isat Typ. A : 5~10
Itemp Typ. A : 5.8~7.5
Inquiry sms

Chip Inductors

Catalog	Features	Series	Part Number	LxW mm	Height Max. mm	Inductance μH	DCR Max. mΩ	Rated Current Max. A	Inquiry
picture_as_pdf	Shield Ferrite Multilayer Plating	CPI (A²B)	CMI-CPI2012UV	2.0x1.2	1.2	3.3	0.24	0.7	sms
picture_as_pdf	Shield Ferrite Multilayer Plating	PMCI (Power Line)	CMI-PMCI2012	2.0x1.2	1	0.47~4.7	125~375	0.5~1.1	sms
picture_as_pdf	Shield Ferrite Multilayer Plating	PMCI (Power Line)	CMI-PMCI2016	2.0x1.6	1	0.47~4.7	182~390	1.1~1.5	sms
picture_as_pdf	Shield Ferrite Multilayer Plating	PMCI (Power Line)	CMI-PMCI2520	2.5x2.0	1	0.47~4.7	87.5~250	1.1~1.8	sms
picture_as_pdf	Shield Ferrite Multilayer Plating	NMCI (Signal Line)	CMI-NMCI1608	1.6x0.8	0.95	0.047~22	300~2100	0.001~0.05	sms
picture_as_pdf	Shield Ferrite Multilayer Plating	NMCI (Signal Line)	CMI-NMCI2012	2.0x1.2	1.05~1.45	0.047~100	200~3100	0.002~250	sms
picture_as_pdf	Shield Ferrite Multilayer Plating	NMCI (Signal Line)	CMI-NMCI3216	3.2x1.6	1.4~1.9	0.047~47	150~3400	0.005~0.3	sms

picture_as_pdf

Part Number
CMI-CPI2012UV
Feature :
Shield
Ferrite
Multilayer
Plating
Series : CPI(A²B)
LxW mm : 2.0x1.2
Height Max. mm : 1.2
Inductance μH : 3.3
DCR Max. mΩ : 0.24
Rated Current Max. A : 0.7
Q Min. Hz :
Inquiry sms

picture_as_pdf

Part Number
CMI-PMCI2012
Feature :
Shield
Ferrite
Multilayer
Plating
Series : PMCI(Power Line)
LxW mm : 2.0x1.2
Height Max. mm : 1
Inductance μH : 0.47~4.7
DCR Max. mΩ : 125~375
Rated Current Max. A : 0.5~1.1
Q Min. Hz :
Inquiry sms

picture_as_pdf

Part Number
CMI-PMCI2016
Feature :
Shield
Ferrite
Multilayer
Plating
Series : PMCI(Power Line)
LxW mm : 2.0x1.6
Height Max. mm : 1
Inductance μH : 0.47~4.7
DCR Max. mΩ : 182~390
Rated Current Max. A : 1.1~1.5
Q Min. Hz :
Inquiry sms

picture_as_pdf

Part Number
CMI-PMCI2520
Feature :
Shield
Ferrite
Multilayer
Plating
Series : PMCI(Power Line)
LxW mm : 2.5x2.0
Height Max. mm : 1
Inductance μH : 0.47~4.7
DCR Max. mΩ : 87.5~250
Rated Current Max. A : 1.1~1.8
Q Min. Hz :
Inquiry sms

picture_as_pdf

Part Number
CMI-NMCI1608
Feature :
Shield
Ferrite
Multilayer
Plating
Series : NMCI(Signal Line)
LxW mm : 1.6x0.8
Height Max. mm : 0.95
Inductance μH : 0.047~22
DCR Max. mΩ : 300~2100
Rated Current Max. A : 0.001~0.05
Q Min. Hz :
Inquiry sms

picture_as_pdf

Part Number
CMI-NMCI2012
Feature :
Shield
Ferrite
Multilayer
Plating
Series : NMCI(Signal Line)
LxW mm : 2.0x1.2
Height Max. mm : 1.05~1.45
Inductance μH : 0.047~100
DCR Max. mΩ : 200~3100
Rated Current Max. A : 0.002~250
Q Min. Hz :
Inquiry sms

picture_as_pdf

Part Number
CMI-NMCI3216
Feature :
Shield
Ferrite
Multilayer
Plating
Series : NMCI(Signal Line)
LxW mm : 3.2x1.6
Height Max. mm : 1.4~1.9
Inductance μH : 0.047~47
DCR Max. mΩ : 150~3400
Rated Current Max. A : 0.005~0.3
Q Min. Hz :
Inquiry sms

Choke Coils for PFC

Catalog	Features	Series	Part Number	LxW mm	Height Max. mm	Inductance μH	DCR Max. mΩ	Rated Current Max. A	Inquiry
picture_as_pdf	Shield Ferrite Round Wire Radial	MMPB(Slim)	CMI-MMPB3009	30mm over	9	190	350	7	sms
picture_as_pdf	Shield Ferrite Round Wire Radial	MMPB(Slim)	CMI-MMPB3509	30mm over	6	60	48	11.4	sms
picture_as_pdf	Shield Ferrite Round Wire Radial	MMPB(Slim)	CMI-MMPB4509	30mm over	6	130~160	108	10~14	sms
picture_as_pdf	Shield Ferrite Round Wire Radial	MMPB	CMI-MMPB272314	20mm over	14	180	230	8	sms
picture_as_pdf	Shield Ferrite Round Wire Radial	MMPB	CMI-MMPB322714	30mm over	14	140	192	15.5	sms
picture_as_pdf	Shield Ferrite Round Wire Radial	MMPB	CMI-MMPB383214	30mm over	14	175	120	12.7	sms

picture_as_pdf

Part Number
CMI-MMPB3009
Feature :
Shield
Ferrite
Round Wire
Radial
Series : MMPB(Slim)
LxW mm : 30mm over
Height Max. mm : 9
Inductance μH : 190
DCR Max. mΩ : 350
Rated Current Max. A : 7
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPB3509
Feature :
Shield
Ferrite
Round Wire
Radial
Series : MMPB(Slim)
LxW mm : 30mm over
Height Max. mm : 6
Inductance μH : 60
DCR Max. mΩ : 48
Rated Current Max. A : 11.4
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPB4509
Feature :
Shield
Ferrite
Round Wire
Radial
Series : MMPB(Slim)
LxW mm : 30mm over
Height Max. mm : 6
Inductance μH : 130~160
DCR Max. mΩ : 108
Rated Current Max. A : 10~14
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPB272314
Feature :
Shield
Ferrite
Round Wire
Radial
Series : MMPB
LxW mm : 20mm over
Height Max. mm : 14
Inductance μH : 180
DCR Max. mΩ : 230
Rated Current Max. A : 8
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPB322714
Feature :
Shield
Ferrite
Round Wire
Radial
Series : MMPB
LxW mm : 30mm over
Height Max. mm : 14
Inductance μH : 140
DCR Max. mΩ : 192
Rated Current Max. A : 15.5
Inquiry sms

picture_as_pdf

Part Number
CMI-MMPB383214
Feature :
Shield
Ferrite
Round Wire
Radial
Series : MMPB
LxW mm : 30mm over
Height Max. mm : 14
Inductance μH : 175
DCR Max. mΩ : 120
Rated Current Max. A : 12.7
Inquiry sms

Toroidal Choke Coils

Catalog	Automotive Grade	Features	Series	Part Number	LxW mm	Height Max. mm	Inductance μH	DCR Max. mΩ	Rated Current Max. A	Inquiry
picture_as_pdf	directions_car	Non-Shield Metal Round Wire Radial	CATC	CMC-CATC13B	16.0x12.0	22	20	30		sms
picture_as_pdf	directions_car	Non-Shield Ferrite Round Wire Radial	CATC	CMC-CATC16B	20mm over	21.5	125	2.43		sms
picture_as_pdf	directions_car	Non-Shield Metal Round Wire Radial	CATC	CMC-CATC22B	20.0x20.0	21	60~500	23~80	2~7	sms
picture_as_pdf	directions_car	Non-Shield Metal Round Wire Radial	CATC	CMC-CATC22B_Vertical	30mm over	32	280	50		sms
picture_as_pdf	directions_car	Non-Shield Metal Round Wire Radial	CATC	CMC-CATC45A	30mm over	48	20			sms
picture_as_pdf	directions_car	Non-Shield Metal Round Wire Radial	CATC	CMC-CATC50LF	30mm over	55	3000			sms
picture_as_pdf	directions_car	Non-Shield Metal Round Wire Radial	CATC	CMC-CATC60A	30mm over	66	500			sms

directions_car picture_as_pdf

Part Number
CMC-CATC13B
Feature :
Non-Shield
Metal
Round Wire
Radial
Series : CATC
LxW mm : 16.0x12.0
Height Max. mm : 22
Inductance μH : 20
DCR Max. mΩ : 30
Rated Current Max. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMC-CATC16B
Feature :
Non-Shield
Ferrite
Round Wire
Radial
Series : CATC
LxW mm : 20mm over
Height Max. mm : 21.5
Inductance μH : 125
DCR Max. mΩ : 2.43
Rated Current Max. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMC-CATC22B
Feature :
Non-Shield
Metal
Round Wire
Radial
Series : CATC
LxW mm : 20.0x20.0
Height Max. mm : 21
Inductance μH : 60~500
DCR Max. mΩ : 23~80
Rated Current Max. A : 2~7
Inquiry sms

directions_car picture_as_pdf

Part Number
CMC-CATC22B_Vertical
Feature :
Non-Shield
Metal
Round Wire
Radial
Series : CATC
LxW mm : 30mm over
Height Max. mm : 32
Inductance μH : 280
DCR Max. mΩ : 50
Rated Current Max. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMC-CATC45A
Feature :
Non-Shield
Metal
Round Wire
Radial
Series : CATC
LxW mm : 30mm over
Height Max. mm : 48
Inductance μH : 20
DCR Max. mΩ :
Rated Current Max. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMC-CATC50LF
Feature :
Non-Shield
Metal
Round Wire
Radial
Series : CATC
LxW mm : 30mm over
Height Max. mm : 55
Inductance μH : 3000
DCR Max. mΩ :
Rated Current Max. A :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMC-CATC60A
Feature :
Non-Shield
Metal
Round Wire
Radial
Series : CATC
LxW mm : 30mm over
Height Max. mm : 66
Inductance μH : 500
DCR Max. mΩ :
Rated Current Max. A :
Inquiry sms

Transponder Coils

Catalog	Automotive Grade	Features	Series	Part Number	LxW mm	Height Max. mm	Inductance μH	L Tolerance ±	DCR Max. mΩ	Inquiry
picture_as_pdf	directions_car	Non-Shield Ferrite Round Wire Base	3DC	CMI-3DC13036	13.0x13.0	3.6	4700~6800	5%	72000~92000	sms
picture_as_pdf	directions_car	Non-Shield Ferrite Round Wire Pin	CTPC	CMI-CTPC3225	3.2x2.5	2.8	1080~1340	5%	35000~40000	sms
picture_as_pdf	directions_car	Non-Shield Ferrite Round Wire Pin	CTPC	CMI-CTPC5530	5.5x3.0	3.1	5890	3%	60000	sms

directions_car picture_as_pdf

Part Number
CMI-3DC13036
Feature :
Non-Shield
Ferrite
Round Wire
Base
Series : 3DC
LxW mm : 13.0x13.0
Height Max. mm : 3.6
Inductance μH : 4700~6800
L Tolerance ± : 5%
DCR Max. mΩ : 72000~92000
Q Min. Hz :
Q Test Freq. Hz :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CTPC3225
Feature :
Non-Shield
Ferrite
Round Wire
Pin
Series : CTPC
LxW mm : 3.2x2.5
Height Max. mm : 2.8
Inductance μH : 1080~1340
L Tolerance ± : 5%
DCR Max. mΩ : 35000~40000
Q Min. Hz :
Q Test Freq. Hz :
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CTPC5530
Feature :
Non-Shield
Ferrite
Round Wire
Pin
Series : CTPC
LxW mm : 5.5x3.0
Height Max. mm : 3.1
Inductance μH : 5890
L Tolerance ± : 3%
DCR Max. mΩ : 60000
Q Min. Hz :
Q Test Freq. Hz :
Inquiry sms

LED Drive Inductors

Catalog	Features	Series	Part Number	LxW mm	Height Max. mm	Inductance μH	DCR Max. mΩ	Inquiry
picture_as_pdf	Shield Ferrite Round Wire Radial	TSCC	CMI-TSCC1214N	12.0x12.0	14	320~1200	450~1560	sms
picture_as_pdf	Shield Ferrite Round Wire Radial	TSCC	CMI-TSCC1414N	14.0x14.0	14	180~4300	190~3400	sms
picture_as_pdf	Shield Ferrite Round Wire Radial	TSCC	CMI-TSCC1814N	18.0x18.0	14	280~3000	500~3000	sms
picture_as_pdf	Shield Ferrite Round Wire Radial	TSCC(2in1)	CMI-TSCC122412N	20mm over	12	800~1000	1200~1700	sms
picture_as_pdf	Shield Ferrite Round Wire Radial	TSCC(2in1)	CMI-TSCC142814N	20mm over	14	4300	3850	sms
picture_as_pdf	Shield Ferrite Round Wire Radial	TSCC(3in1)	CMI-TSCC123512N	30mm over	12	1000	1700	sms
picture_as_pdf	Shield Ferrite Round Wire Radial	TSCC(3in1)	CMI-TSCC123514N	30mm over	14	3200	4290	sms

picture_as_pdf

Part Number
CMI-TSCC1214N
Feature :
Shield
Ferrite
Round Wire
Radial
Series : TSCC
LxW mm : 12.0x12.0
Height Max. mm : 14
Inductance μH : 320~1200
DCR Max. mΩ : 450~1560
Isat Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-TSCC1414N
Feature :
Shield
Ferrite
Round Wire
Radial
Series : TSCC
LxW mm : 14.0x14.0
Height Max. mm : 14
Inductance μH : 180~4300
DCR Max. mΩ : 190~3400
Isat Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-TSCC1814N
Feature :
Shield
Ferrite
Round Wire
Radial
Series : TSCC
LxW mm : 18.0x18.0
Height Max. mm : 14
Inductance μH : 280~3000
DCR Max. mΩ : 500~3000
Isat Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-TSCC122412N
Feature :
Shield
Ferrite
Round Wire
Radial
Series : TSCC(2in1)
LxW mm : 20mm over
Height Max. mm : 12
Inductance μH : 800~1000
DCR Max. mΩ : 1200~1700
Isat Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-TSCC142814N
Feature :
Shield
Ferrite
Round Wire
Radial
Series : TSCC(2in1)
LxW mm : 20mm over
Height Max. mm : 14
Inductance μH : 4300
DCR Max. mΩ : 3850
Isat Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-TSCC123512N
Feature :
Shield
Ferrite
Round Wire
Radial
Series : TSCC(3in1)
LxW mm : 30mm over
Height Max. mm : 12
Inductance μH : 1000
DCR Max. mΩ : 1700
Isat Typ. A :
Inquiry sms

picture_as_pdf

Part Number
CMI-TSCC123514N
Feature :
Shield
Ferrite
Round Wire
Radial
Series : TSCC(3in1)
LxW mm : 30mm over
Height Max. mm : 14
Inductance μH : 3200
DCR Max. mΩ : 4290
Isat Typ. A :
Inquiry sms

PoC Filter Inductor

Image	Catalog	Automotive Grade	Features	Series	Part Number	LxW mm	Height Max. mm	Inductance μH	DCR Max. mΩ	Isat Typ. A	Itemp Typ. A	Inquiry
	picture_as_pdf	directions_car	Shield Ferrite Round Wire Plating	CPOC	CMI-CPOC3225V	3.2x2.5	2.5	2.2~22	130~880		0.7~1.9	sms
	picture_as_pdf	directions_car	Shield Ferrite Round Wire Plating	CPOC	CMI-CPOC4532V	4.5x3.2	3.7	10~22	130~180			sms

directions_car picture_as_pdf

Part Number
CMI-CPOC3225V
Feature :
Shield
Ferrite
Round Wire
Plating
Series : CPOC
LxW mm : 3.2x2.5
Height Max. mm : 2.5
Inductance μH : 2.2~22
DCR Max. mΩ : 130~880
Isat Typ. A :
Itemp Typ. A : 0.7~1.9
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CPOC4532V
Feature :
Shield
Ferrite
Round Wire
Plating
Series : CPOC
LxW mm : 4.5x3.2
Height Max. mm : 3.7
Inductance μH : 10~22
DCR Max. mΩ : 130~180
Isat Typ. A :
Itemp Typ. A :
Inquiry sms

ESS(Energy Storage System) Inductor

Catalog	Automotive Grade	Features	Series	Part Number	LxW mm	Height Max. mm	Inductance μH	DCR Max. mΩ	Isat Max. A	Itemp Max. A	Inquiry
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CPQ	CMI-CPQ2115HC NEW	20mm over	15	7.5	2.45	0	21	sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CPQ	CMI-CPQ2714HC NEW	20mm over	14.2	7.2	2.5		16.5	sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CSBL	CMI-CSBL1416B NEW	15.0x15.0	16	10	8.5	12	8	sms
picture_as_pdf	directions_car	Shield Ferrite Flat Wire Wire pin	CSBL	CMI-CSBL1719B4 NEW	17.0x17.0	19.3	22	11	15	13.5	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSBL	CMI-CSBL2323B3 NEW	20mm over	23	22	9.1	16.5	8.7	sms
picture_as_pdf	directions_car	Shield Ferrite Round Wire Pin	CSBL	CMI-CSBL2324B4 NEW	20mm over	24	22	10	22	14	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CEQ	CMI-CEQ2612 NEW	20mm over	12.5	100	60	4	16	sms
picture_as_pdf	directions_car	Shield Metal Flat Wire Wire pin	CEQ	CMI-CEQ2722B NEW	20mm over	26.5	10~13	2~3	55~60	40~50	sms

directions_car picture_as_pdf

Part Number
CMI-CPQ2115HC NEW
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CPQ
LxW mm : 20mm over
Height Max. mm : 15
Inductance μH : 7.5
DCR Max. mΩ : 2.45
Isat Max. A : 0
Itemp Max. A : 21
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CPQ2714HC NEW
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CPQ
LxW mm : 20mm over
Height Max. mm : 14.2
Inductance μH : 7.2
DCR Max. mΩ : 2.5
Isat Max. A :
Itemp Max. A : 16.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSBL1416B NEW
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CSBL
LxW mm : 15.0x15.0
Height Max. mm : 16
Inductance μH : 10
DCR Max. mΩ : 8.5
Isat Max. A : 12
Itemp Max. A : 8
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSBL1719B4 NEW
Feature :
Shield
Ferrite
Flat Wire
Wire pin
Series : CSBL
LxW mm : 17.0x17.0
Height Max. mm : 19.3
Inductance μH : 22
DCR Max. mΩ : 11
Isat Max. A : 15
Itemp Max. A : 13.5
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSBL2323B3 NEW
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSBL
LxW mm : 20mm over
Height Max. mm : 23
Inductance μH : 22
DCR Max. mΩ : 9.1
Isat Max. A : 16.5
Itemp Max. A : 8.7
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CSBL2324B4 NEW
Feature :
Shield
Ferrite
Round Wire
Pin
Series : CSBL
LxW mm : 20mm over
Height Max. mm : 24
Inductance μH : 22
DCR Max. mΩ : 10
Isat Max. A : 22
Itemp Max. A : 14
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CEQ2612 NEW
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CEQ
LxW mm : 20mm over
Height Max. mm : 12.5
Inductance μH : 100
DCR Max. mΩ : 60
Isat Max. A : 4
Itemp Max. A : 16
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CEQ2722B NEW
Feature :
Shield
Metal
Flat Wire
Wire pin
Series : CEQ
LxW mm : 20mm over
Height Max. mm : 26.5
Inductance μH : 10~13
DCR Max. mΩ : 2~3
Isat Max. A : 55~60
Itemp Max. A : 40~50
Inquiry sms

VRM Inductor

Catalog	Automotive Grade	Features	Series	Part Number	LxW mm	Height Max mm	Inductance uH	DCR Max. mΩ	Isat Typ. A	Itemp Typ. A	Inquiry
picture_as_pdf	directions_car	Shield Ferrite Pin	TMMPS	CMI-TMMPS10076BC NEW	10.0x7.0	6.2	0.082	0.16	88	68	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD4060M1	4.0x4.0	6	0.02~0.1	0.297	20~40	19	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD7050N1	7.0x7.0	4.95	0.07~0.23	0.27~0.4876	0	0	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD7090M1	7.0x7.0	9	0.12~0.45	0.319	15~70	50	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD7032M1	7.0x7.0	3.18	0.08~0.15	1.485	16~32	0	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD8050M1	8.0x8.0	4.96	0.1	0.18	65	70	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD8050N1	8.0x8.0	4.96	0.03~0.2	0.1836	0	0	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD80100M1	8.0x8.0	10	0.15~0.47	0.297	25~75	50	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD9480M1	9.0x6.0	8	0.12~0.3	0.319	30~80	51	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD9080N1	9.0x6.0	8	100~300	0.3045	0	0	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD10050N1	10.0x7.0	4.95	0.08~0.22	0.3317~0.5797	0	0	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD10080N1	10.0x8.0	8	0.12~0.22	0.189	0	0	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD10070N1	10.0x8.0	7	0.12~0.47	0.3045	0	0	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD10076M1	10.0x7.0	7.6	0.15~0.5	0.319	20~75	61	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD11088M1	10.0x7.0	8.8	0.15~0.56	0.319	25~85	61	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD11070N1	10.0x7.0	7.5	0.12~0.51	0.3045~0.4982	0	0	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD12080N1	12.0x8.0	8	0.15~0.25	0.3045	0	0	sms
picture_as_pdf		Shield Ferrite Pin	MPLD	CMI-MPLD13080M1	13.0x13.0	8	0.1~0.3	0.5	33~110	90	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-V	CMI-MPLD9080M1	9.0x6.0	8	0.07~0.22	0.4	50~100	40~43	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-BR	CMI-MPLD6830BR	7.0x7.0	3	0.5	1.5	28	20	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-BR	CMI-MPLD7030BR	7.0x7.0	3	0.18	0.99~1.43	25	20~35	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-BR	CMI-MPLD8030BR	8.0x8.0	3	0.22	1.65	25	20	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-BR	CMI-MPLD90100BR	9.0x9.0	9.5	0.22	0.352	65	45	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-BS	CMI-MPLD70100BS	7.0x6.0	10	0.1~0.22	0.275	40~90	40	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-BS	CMI-MPLD90100BS	9.0x6.0	10	0.1~0.3	0.187	28~100	60	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-BS	CMI-MPLD10100BS	10.0x7.0	10	0.12~0.36	0.473	40~100	50	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-BS	CMI-MPLD11105BS	10.0x8.0	10	0.12~0.44	0.572	35~100	50	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-BS	CMI-MPLD12100BS	12.0x8.0	10	0.12~0.47	0.605	45~100	50	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-EHS	CMI-MPLD8070EHS	8.0x6.0	7	0.15~0.47	1.1	35~90	32	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-EHS	CMI-MPLD8072EHS	8.0x6.0	7.2	0.15~1	1.1	10~80	35	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-HS	CMI-MPLD11088HS	10.0x8.0	8.8	0.15~1.2	1.54	21~100	25	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-LH	CMI-MPLD8040LH	7.0x9.0	4	0.12~0.36	0.715	25~75	30	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-LH	CMI-MPLD9040LH	9.0x9.0	4	0.12~0.36	1.32	20~65	16	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-LH	CMI-MPLD10055LH	10.0x10.0	5.5	0.12~1	0.968	15~130	35	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-LP	CMI-MPLD8025LP	8.0x6.0	2.5	0.12~0.3	1.98	18~45	18	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-SH	CMI-MPLD5040SH	5.0x5.0	4	0.12~0.3	2.15	20~50	25	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-SH	CMI-MPLD5068SH	5.0x5.0	6.8	0.15~0.47	2.035	20~60	25	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-SH	CMI-MPLD8035SH	8.0x6.0	3.5	0.15~0.47	2.09	17~53	30	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-SH	CMI-MPLD8050SH	8.0x6.0	5	0.15~0.47	1.27	20~60	30	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-SH	CMI-MPLD8550SH	8.0x8.0	5	0.15~1	0.95	9~70	35	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-TO	CMI-MPLD10115TO	10.0x8.0	11.5	0.12~0.47	0.17~0.468	35~100	60	sms
picture_as_pdf		Shield Ferrite Pin	MPLD-TO	CMI-MPLD10080TO	10.0x7.0	8	0.12~0.3	0.32	35~90	50	sms
picture_as_pdf	directions_car	Shield Ferrite Pin	CMPLD	CMI-CMPLD13080M1	13.0x13.0	8	0.1~0.3	0.5	33~110	90	sms

directions_car picture_as_pdf

Part Number
CMI-TMMPS10076BC NEW
Feature :
Shield
Ferrite
Pin
Series : TMMPS
LxW mm : 10.0x7.0
Height Max mm : 6.2
Inductance uH : 0.082
DCR Max. mΩ : 0.16
Isat Typ. A : 88
Itemp Typ. A : 68
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD4060M1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 4.0x4.0
Height Max mm : 6
Inductance uH : 0.02~0.1
DCR Max. mΩ : 0.297
Isat Typ. A : 20~40
Itemp Typ. A : 19
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD7050N1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 7.0x7.0
Height Max mm : 4.95
Inductance uH : 0.07~0.23
DCR Max. mΩ : 0.27~0.4876
Isat Typ. A : 0
Itemp Typ. A : 0
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD7090M1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 7.0x7.0
Height Max mm : 9
Inductance uH : 0.12~0.45
DCR Max. mΩ : 0.319
Isat Typ. A : 15~70
Itemp Typ. A : 50
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD7032M1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 7.0x7.0
Height Max mm : 3.18
Inductance uH : 0.08~0.15
DCR Max. mΩ : 1.485
Isat Typ. A : 16~32
Itemp Typ. A : 0
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD8050M1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 8.0x8.0
Height Max mm : 4.96
Inductance uH : 0.1
DCR Max. mΩ : 0.18
Isat Typ. A : 65
Itemp Typ. A : 70
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD8050N1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 8.0x8.0
Height Max mm : 4.96
Inductance uH : 0.03~0.2
DCR Max. mΩ : 0.1836
Isat Typ. A : 0
Itemp Typ. A : 0
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD80100M1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 8.0x8.0
Height Max mm : 10
Inductance uH : 0.15~0.47
DCR Max. mΩ : 0.297
Isat Typ. A : 25~75
Itemp Typ. A : 50
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD9480M1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 9.0x6.0
Height Max mm : 8
Inductance uH : 0.12~0.3
DCR Max. mΩ : 0.319
Isat Typ. A : 30~80
Itemp Typ. A : 51
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD9080N1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 9.0x6.0
Height Max mm : 8
Inductance uH : 100~300
DCR Max. mΩ : 0.3045
Isat Typ. A : 0
Itemp Typ. A : 0
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD10050N1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 10.0x7.0
Height Max mm : 4.95
Inductance uH : 0.08~0.22
DCR Max. mΩ : 0.3317~0.5797
Isat Typ. A : 0
Itemp Typ. A : 0
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD10080N1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 10.0x8.0
Height Max mm : 8
Inductance uH : 0.12~0.22
DCR Max. mΩ : 0.189
Isat Typ. A : 0
Itemp Typ. A : 0
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD10070N1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 10.0x8.0
Height Max mm : 7
Inductance uH : 0.12~0.47
DCR Max. mΩ : 0.3045
Isat Typ. A : 0
Itemp Typ. A : 0
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD10076M1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 10.0x7.0
Height Max mm : 7.6
Inductance uH : 0.15~0.5
DCR Max. mΩ : 0.319
Isat Typ. A : 20~75
Itemp Typ. A : 61
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD11088M1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 10.0x7.0
Height Max mm : 8.8
Inductance uH : 0.15~0.56
DCR Max. mΩ : 0.319
Isat Typ. A : 25~85
Itemp Typ. A : 61
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD11070N1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 10.0x7.0
Height Max mm : 7.5
Inductance uH : 0.12~0.51
DCR Max. mΩ : 0.3045~0.4982
Isat Typ. A : 0
Itemp Typ. A : 0
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD12080N1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 12.0x8.0
Height Max mm : 8
Inductance uH : 0.15~0.25
DCR Max. mΩ : 0.3045
Isat Typ. A : 0
Itemp Typ. A : 0
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD13080M1
Feature :
Shield
Ferrite
Pin
Series : MPLD
LxW mm : 13.0x13.0
Height Max mm : 8
Inductance uH : 0.1~0.3
DCR Max. mΩ : 0.5
Isat Typ. A : 33~110
Itemp Typ. A : 90
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD9080M1
Feature :
Shield
Ferrite
Pin
Series : MPLD-V
LxW mm : 9.0x6.0
Height Max mm : 8
Inductance uH : 0.07~0.22
DCR Max. mΩ : 0.4
Isat Typ. A : 50~100
Itemp Typ. A : 40~43
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD6830BR
Feature :
Shield
Ferrite
Pin
Series : MPLD-BR
LxW mm : 7.0x7.0
Height Max mm : 3
Inductance uH : 0.5
DCR Max. mΩ : 1.5
Isat Typ. A : 28
Itemp Typ. A : 20
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD7030BR
Feature :
Shield
Ferrite
Pin
Series : MPLD-BR
LxW mm : 7.0x7.0
Height Max mm : 3
Inductance uH : 0.18
DCR Max. mΩ : 0.99~1.43
Isat Typ. A : 25
Itemp Typ. A : 20~35
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD8030BR
Feature :
Shield
Ferrite
Pin
Series : MPLD-BR
LxW mm : 8.0x8.0
Height Max mm : 3
Inductance uH : 0.22
DCR Max. mΩ : 1.65
Isat Typ. A : 25
Itemp Typ. A : 20
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD90100BR
Feature :
Shield
Ferrite
Pin
Series : MPLD-BR
LxW mm : 9.0x9.0
Height Max mm : 9.5
Inductance uH : 0.22
DCR Max. mΩ : 0.352
Isat Typ. A : 65
Itemp Typ. A : 45
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD70100BS
Feature :
Shield
Ferrite
Pin
Series : MPLD-BS
LxW mm : 7.0x6.0
Height Max mm : 10
Inductance uH : 0.1~0.22
DCR Max. mΩ : 0.275
Isat Typ. A : 40~90
Itemp Typ. A : 40
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD90100BS
Feature :
Shield
Ferrite
Pin
Series : MPLD-BS
LxW mm : 9.0x6.0
Height Max mm : 10
Inductance uH : 0.1~0.3
DCR Max. mΩ : 0.187
Isat Typ. A : 28~100
Itemp Typ. A : 60
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD10100BS
Feature :
Shield
Ferrite
Pin
Series : MPLD-BS
LxW mm : 10.0x7.0
Height Max mm : 10
Inductance uH : 0.12~0.36
DCR Max. mΩ : 0.473
Isat Typ. A : 40~100
Itemp Typ. A : 50
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD11105BS
Feature :
Shield
Ferrite
Pin
Series : MPLD-BS
LxW mm : 10.0x8.0
Height Max mm : 10
Inductance uH : 0.12~0.44
DCR Max. mΩ : 0.572
Isat Typ. A : 35~100
Itemp Typ. A : 50
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD12100BS
Feature :
Shield
Ferrite
Pin
Series : MPLD-BS
LxW mm : 12.0x8.0
Height Max mm : 10
Inductance uH : 0.12~0.47
DCR Max. mΩ : 0.605
Isat Typ. A : 45~100
Itemp Typ. A : 50
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD8070EHS
Feature :
Shield
Ferrite
Pin
Series : MPLD-EHS
LxW mm : 8.0x6.0
Height Max mm : 7
Inductance uH : 0.15~0.47
DCR Max. mΩ : 1.1
Isat Typ. A : 35~90
Itemp Typ. A : 32
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD8072EHS
Feature :
Shield
Ferrite
Pin
Series : MPLD-EHS
LxW mm : 8.0x6.0
Height Max mm : 7.2
Inductance uH : 0.15~1
DCR Max. mΩ : 1.1
Isat Typ. A : 10~80
Itemp Typ. A : 35
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD11088HS
Feature :
Shield
Ferrite
Pin
Series : MPLD-HS
LxW mm : 10.0x8.0
Height Max mm : 8.8
Inductance uH : 0.15~1.2
DCR Max. mΩ : 1.54
Isat Typ. A : 21~100
Itemp Typ. A : 25
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD8040LH
Feature :
Shield
Ferrite
Pin
Series : MPLD-LH
LxW mm : 7.0x9.0
Height Max mm : 4
Inductance uH : 0.12~0.36
DCR Max. mΩ : 0.715
Isat Typ. A : 25~75
Itemp Typ. A : 30
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD9040LH
Feature :
Shield
Ferrite
Pin
Series : MPLD-LH
LxW mm : 9.0x9.0
Height Max mm : 4
Inductance uH : 0.12~0.36
DCR Max. mΩ : 1.32
Isat Typ. A : 20~65
Itemp Typ. A : 16
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD10055LH
Feature :
Shield
Ferrite
Pin
Series : MPLD-LH
LxW mm : 10.0x10.0
Height Max mm : 5.5
Inductance uH : 0.12~1
DCR Max. mΩ : 0.968
Isat Typ. A : 15~130
Itemp Typ. A : 35
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD8025LP
Feature :
Shield
Ferrite
Pin
Series : MPLD-LP
LxW mm : 8.0x6.0
Height Max mm : 2.5
Inductance uH : 0.12~0.3
DCR Max. mΩ : 1.98
Isat Typ. A : 18~45
Itemp Typ. A : 18
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD5040SH
Feature :
Shield
Ferrite
Pin
Series : MPLD-SH
LxW mm : 5.0x5.0
Height Max mm : 4
Inductance uH : 0.12~0.3
DCR Max. mΩ : 2.15
Isat Typ. A : 20~50
Itemp Typ. A : 25
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD5068SH
Feature :
Shield
Ferrite
Pin
Series : MPLD-SH
LxW mm : 5.0x5.0
Height Max mm : 6.8
Inductance uH : 0.15~0.47
DCR Max. mΩ : 2.035
Isat Typ. A : 20~60
Itemp Typ. A : 25
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD8035SH
Feature :
Shield
Ferrite
Pin
Series : MPLD-SH
LxW mm : 8.0x6.0
Height Max mm : 3.5
Inductance uH : 0.15~0.47
DCR Max. mΩ : 2.09
Isat Typ. A : 17~53
Itemp Typ. A : 30
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD8050SH
Feature :
Shield
Ferrite
Pin
Series : MPLD-SH
LxW mm : 8.0x6.0
Height Max mm : 5
Inductance uH : 0.15~0.47
DCR Max. mΩ : 1.27
Isat Typ. A : 20~60
Itemp Typ. A : 30
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD8550SH
Feature :
Shield
Ferrite
Pin
Series : MPLD-SH
LxW mm : 8.0x8.0
Height Max mm : 5
Inductance uH : 0.15~1
DCR Max. mΩ : 0.95
Isat Typ. A : 9~70
Itemp Typ. A : 35
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD10115TO
Feature :
Shield
Ferrite
Pin
Series : MPLD-TO
LxW mm : 10.0x8.0
Height Max mm : 11.5
Inductance uH : 0.12~0.47
DCR Max. mΩ : 0.17~0.468
Isat Typ. A : 35~100
Itemp Typ. A : 60
Inquiry sms

picture_as_pdf

Part Number
CMI-MPLD10080TO
Feature :
Shield
Ferrite
Pin
Series : MPLD-TO
LxW mm : 10.0x7.0
Height Max mm : 8
Inductance uH : 0.12~0.3
DCR Max. mΩ : 0.32
Isat Typ. A : 35~90
Itemp Typ. A : 50
Inquiry sms

directions_car picture_as_pdf

Part Number
CMI-CMPLD13080M1
Feature :
Shield
Ferrite
Pin
Series : CMPLD
LxW mm : 13.0x13.0
Height Max mm : 8
Inductance uH : 0.1~0.3
DCR Max. mΩ : 0.5
Isat Typ. A : 33~110
Itemp Typ. A : 90
Inquiry sms

INQUIRY

※ 이 제품에 대해 궁금하신 사항을 남겨 주시면 입력하신 이메일 주소로 빠른 시일 내로 답변 드리겠습니다.
남겨주신 내용은 coilmaster@coilmaster.com 으로 전송됩니다.

이름*

이메일*

회사명

전화번호

제목*

내용

개인정보 처리방침

(주)코일마스터는 개인정보 보호법 제30조에 따라 정보주체(고객)의 개인정보를 보호하고 이와 관련한 고충을 신속하고 원활하게 처리할 수 있도록 하기 위하여 다음과 같이 개인정보 처리지침을 수립․공개합니다.

1. 개인정보의 처리목적 (주)코일마스터는 다음의 목적을 위하여 개인정보를 처리하고 있으며, 다음의 목적 이외의 용도로는 이용하지 않습니다.

- 고객에 대한 서비스 제공에 따른 본인 식별․인증,관리, 물품 또는 서비스 공급에 따른 금액 결제, 물품 또는 서비스의 공급․배송 등

2. 개인정보의 처리 및 보유기간

① (주)코일마스터는 정보주체로부터 개인정보를 수집할 때 동의받은 개인정보 보유․이용기간 또는 법령에 따른 개인정보 보유․이용기간 내에서 개인정보를 처리․보유합니다.

② 구체적인 개인정보 처리 및 보유 기간은 다음과 같습니다.

- 고객 문의 및 관리 : 서비스 이용계약 또는 회원가입 해지시까지, 다만 채권․채무관계 잔존시에는 해당 채권․채무관계 정산시까지

- 전자상거래에서의 계약․청약철회, 대금결제, 재화 등 공급기록 : 5년

3. 개인정보의 제3자 제공 (주)코일마스터는 정보주체의 별도 동의, 법률의 특별한 규정 등 개인정보 보호법 제17조에 해당하는 경우 외에는 개인정보를 제3자에게 제공하지 않습니다.

4. 개인정보처리의 위탁 ① (주)코일마스터는 업무처리를 위하여 개인정보 처리업무를 외부에 위탁하지 않습니다.

5. 정보주체와 법정대리인의 권리․의무 및 행사방법 정보주체는 (주)코일마스터에 대해 언제든지 다음 각 호의 개인정보 보호 관련 권리를 행사할 수 있습니다.

1. 개인정보 열람요구

2. 오류 등이 있을 경우 정정 요구

3. 삭제요구

4. 처리정지 요구

6. 처리하는 개인정보 항목 (주)코일마스터는 다음의 개인정보 항목을 처리하고 있습니다.

- 성명, 주소, 전화번호, 휴대전화번호, 이메일주소,

7. 개인정보의 파기 ① (주)코일마스터는 개인정보 보유기간의 경과, 처리목적 달성 등 개인정보가 불필요하게 되었을 때에는 지체없이 해당 개인정보를 파기합니다.

② (주)코일마스터는 다음의 방법으로 개인정보를 파기합니다.

- 전자적 파일 : 파일 삭제, 디스크 포맷

- 종이 문서 : 분쇄하거나 소각

8. 개인정보의 안전성 확보조치 (주)코일마스터는 개인정보의 안전성 확보를 위해 다음과 같은 조치를 취하고 있습니다.

- 관리적 조치 : 내부관리계획 수립․시행, 직원․종업원 등에 대한 정기적 교육

- 기술적 조치 : 개인정보처리시스템(또는 개인정보가 저장된 컴퓨터)의 비밀번호 설정 등 접근권한 관리, 백신소프트웨어 등 보안프로그램 설치, 개인정보가 저장된 파일의 암호화

- 물리적 조치 : 개인정보가 저장․보관된 장소의 시건, 출입통제 등

9. 개인정보 자동 수집 장치의 설치∙운영 및 거부에 관한 사항

① (주)코일마스터는 이용자에게 개별적인 맞춤서비스를 제공하기 위해 이용정보를 저장하고 수시로 불러오는 ‘쿠키(cookie)’를 사용합니다.

② 쿠키는 웹사이트를 운영하는데 이용되는 서버(http)가 이용자의 컴퓨터 브라우저에게 보내는 소량의 정보이며 이용자의 PC 컴퓨터내의 하드디스크에 저장되기도 합니다.

가. 쿠키의 사용목적: 이용자가 방문한 각 서비스와 웹 사이트들에 대한 방문 및 이용형태, 인기 검색어, 보안접속 여부, 등을 파악하여 이용자에게 최적화된 정보 제공을 위해 사용됩니다.

나. 쿠키의 설치∙운영 및 거부 : 웹브라우저 상단의 도구>인터넷 옵션>개인정보 메뉴의 옵션 설정을 통해 쿠키 저장을 거부 할 수 있습니다.

다. 쿠키 저장을 거부할 경우 맞춤형 서비스 이용에 어려움이 발생할 수 있습니다.

10. 개인정보 보호책임자 (주)코일마스터는 개인정보 처리에 관한 업무를 총괄해서 책임지고, 개인정보 처리와 관련한 정보주체의 불만처리 및 피해구제를 처리하기 위하여 아래와 같이 개인정보 보호책임자를 지정하고 있습니다.

▶ 개인정보 보호책임자

성 명 : 차상엽

직 책 : 대표이사

연락처 : 031-904-1444

E-mail : system@coilmaster.com

팩 스 : 063-263-1445

11. 개인정보 처리방침 변경

이 개인정보 처리방침은 2016. 12. 1부터 적용됩니다.

개인정보처리방침 안내에 동의합니다.

문의 등록이 완료되었습니다.

입력하신 이메일 주소로
빠른 시일내에 답변 드리겠습니다.

닫기

고객문의 제품검색 TOP

Inductors(Coils)

Product Lineup

Product Lineup

Product Spotlights

Power Inductors

CMI-MMPF201208BC NEW

CMI-MMPF201208BC-NC NEW

CMI-MMPF201210BC-NC NEW

CMI-MMPF201608BC NEW

CMI-MMPF201610BC NEW

CMI-MMPF201612BC NEW

CMI-MMPF252010BC NEW

CMI-MMPF252012BC NEW

CMI-MMPF322512BS NEW

CMI-MMPF322530QL NEW

CMI-MMPF322533V NEW

CMI-MMPF4012BS NEW

CMI-MMPF4020H2 NEW

CMI-MMPF7012H2 NEW

CMI-MMPF7015H2 NEW

CMI-MMPF7030H2 NEW

CMI-MMP201208BS

CMI-MMP201210BS

CMI-MMP201608BS

CMI-MMP201610BS

CMI-MMP252010BS

CMI-MMP252012BS

CMI-MMP322512BS

CMI-MMP3020BS

CMI-MMP4010BS

CMI-MMP4020HL

CMI-MMP4020QL

CMI-MMP4020HL-A

CMI-MMP4020HL-B

CMI-MMP4030HL

CMI-MMP4030H1-B

CMI-MMP5015HL-B

CMI-MMP5018HL

CMI-MMP5020HL

CMI-MMP5030HL-A

CMI-MMP6020HL

CMI-MMP7018HL

CMI-MMP7024HL-A

CMI-MMP7030HL

CMI-MMP7030HL-A

CMI-MMP7030HL-B

CMI-MMP7030H1-B

CMI-MMPP4018MH

CMI-MMPP4020MH

CMI-MMPP4020HL

CMI-MMPP4020LH

CMI-MMPP4030HL

CMI-MMPP4040HL

CMI-MMPP5015HL

CMI-MMPP5018HL

CMI-MMPP5020HL

CMI-MMPP5030HL

CMI-MMPP5040HL

CMI-MMPP6012HL

CMI-MMPP6015HL

CMI-MMPP6020LH

CMI-MMPP6030LH

CMI-MMPP6015HL-N

CMI-MMPP6018LH-N

CMI-MMPP6024LH-N

CMI-MMPP6030LH-N

CMI-MMPP6030HL-N

CMI-MMPP6040HL-N

CMI-MMPP6050LH-N

CMI-MMPP6050HL-N

CMI-MMPP8040HL

CMI-MMPP8050HL

CMI-MMPP10030HL

CMI-MMPP10030LH

CMI-MMPP10040LL

CMI-MMPP10040LH

CMI-MMPP10055LH

CMI-MMPP10055HL

CMI-MMPP10055LL

CMI-MMPP10075LL
